Genuine KE Kawasaki Parts delivered quickly!


BRAKE PEDAL/TORQUE LINK ('80-'81

KE125-A9 KE125 1982 USA CANADA

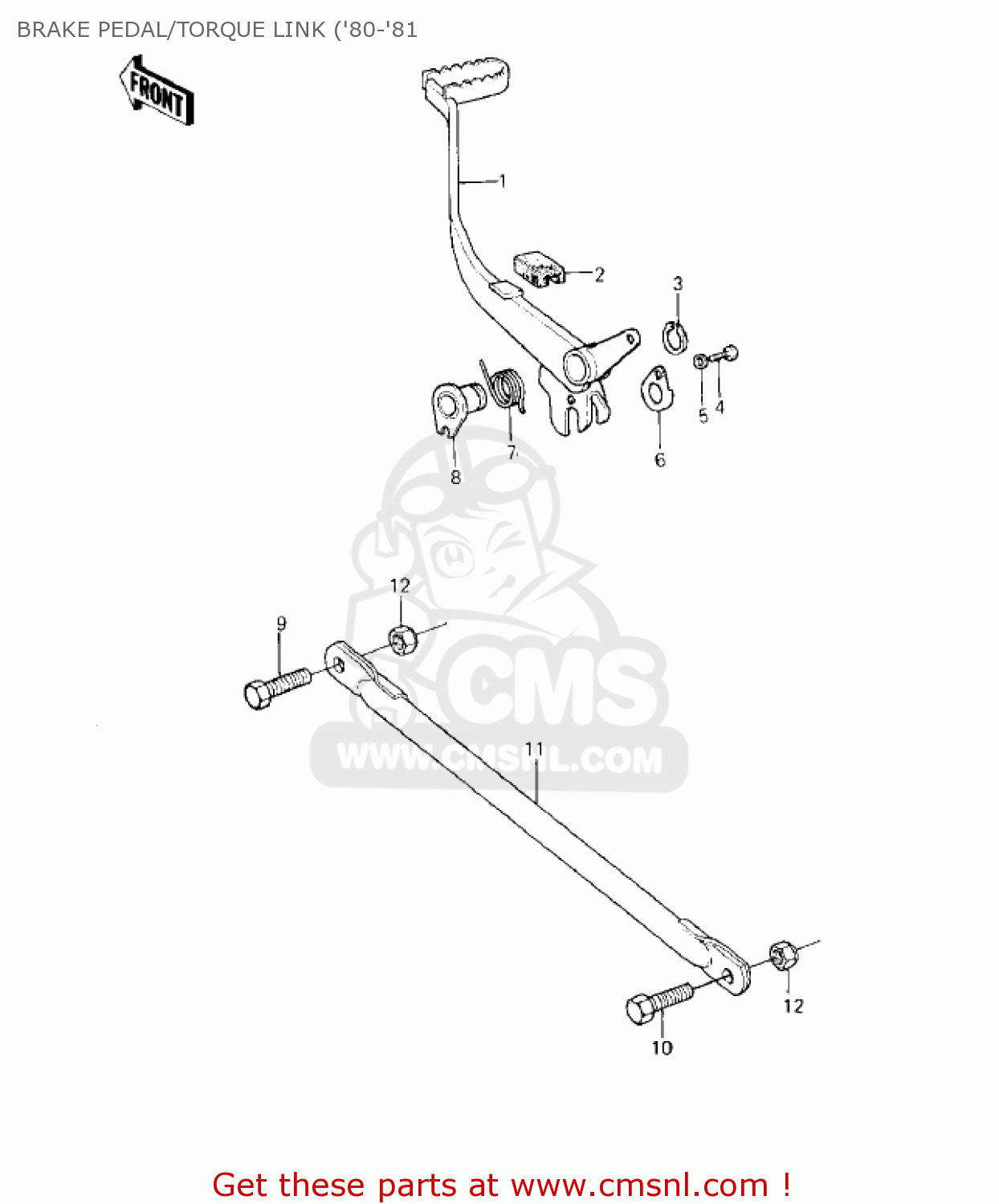

Brake pedal/torque link ('80-'81 diagram KE125-A9 KE125 1982 USA CANADA

BRAKE PEDAL/TORQUE LINK ('80-'81 KE125-A9 KE125 1982 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80-'81 KE125-A9 KE125 1982 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80-'81 KE125-A9 KE125 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
43001058
ref: 1
LEVER-BRAKE,PEDAL
43001058
€ 30.50
2
92075220
ref: 2
DAMPER,BRAKE PEDAL
92075220
€ 2.50
3
480J2200
ref: 3
CIRCLIP-TYPE-C,22MM
480J2200
€ 3.00
4
220B0508
ref: 4
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
5
461F0500
ref: 5
WASHER-SPRING,5MM
461F0500
€ 0.50
6
43081002
ref: 6
BRACKET,BRAKE PEDAL
43081002
€ 2.50
7
43005032
ref: 7
SPRING,BRAKE PEDAL
43005032
€ 4.00
8
92027210
ref: 8
COLLAR,BRAKE PEDAL
92027210
€ 21.00
9
113G1022
ref: 9
BOLT,HEX HEAD,10X22
€ 2.50
10
113G1028
ref: 10
BOLT,HEX HEAD,10X28
€ 4.50
11
43007048
ref: 11
ROD-TORQUE,RR
€ 15.50
12
92019016
ref: 12
NUT,10MM
€ 3.00
