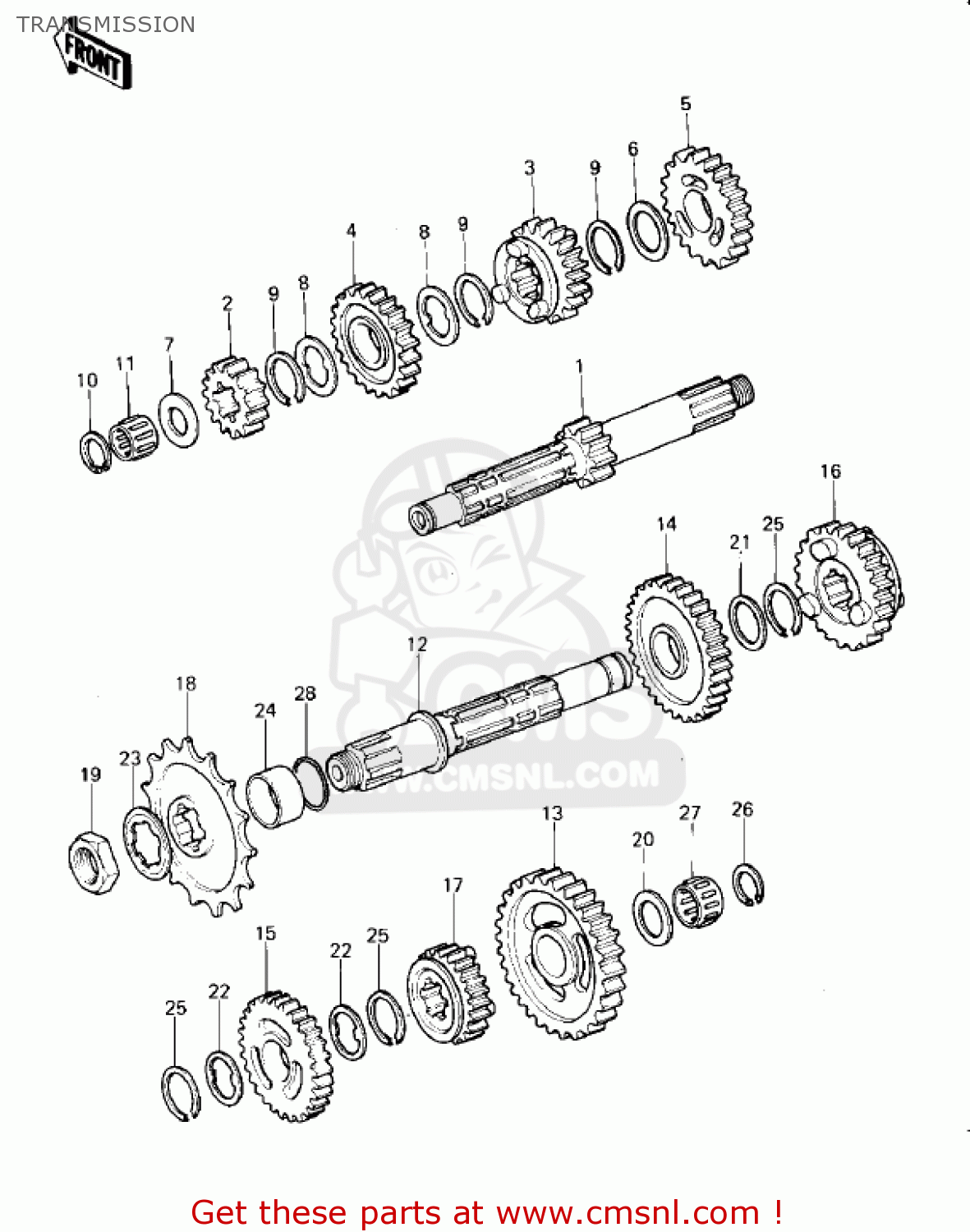

TRANSMISSION

ref

part #

description

quantity

1

131271016
ref: 1

DRIVESHAFT,13T

€ 103.50

1

131271024
ref: 1

SHAFT DRIVE 15T

€ 151.00

2

131291125
ref: 2

GEAR,DRIVE,2ND,17T

€ 26.50

2

131291173
ref: 2

2ND,GEAR DRIVE 16T

€ 39.00

3

131291126
ref: 3

3RD GEAR,DRIVE,22T

€ 58.50

3

131291174
ref: 3

3RD GEAR DRIVE 20T

€ 43.50

4

131291127
ref: 4

4TH GEAR,DRIVE,22T

€ 32.00

4

131291175
ref: 4

4TH GEAR DRIVE 21T

€ 77.50

5

131291128
ref: 5

TOP GEAR,DRIVE,24T

€ 53.00

6

92022198
ref: 6

WASHER-PLAIN

€ 3.50

7

92022281
ref: 7

WASHER,PLAIN

€ 4.00

8

92024039
ref: 8

WASHER-LOCK

€ 4.00

9

92033025
ref: 9

CIRCLIP,25MM

€ 3.00

10

92033032
ref: 10

CIRCLIP

€ 3.00

11

920461184
ref: 11

BEARING-NEEDLE

€ 20.00

12

131281023
ref: 12

SHAFT,OUTPUT

€ 148.00

13

131291129
ref: 13

LOW GEAR,OUTPUT,30T

€ 59.00

13

131291176
ref: 13

LOW,GEAR OUTPUT 40T

€ 45.00

14

131291130
ref: 14

GEAR,OUTPUT,2ND,26T

€ 72.00

14

131291177
ref: 14

2ND GEAR OUTPUT 28T

€ 52.00

15

131291679
ref: 15

GEAR-OUTPUT 3RD,26T

€ 156.00

15

131291178
ref: 15

3RD GEAR OUTPUT 27T

€ 73.50

16

131291132
ref: 16

4TH GEAR,OUTPUT,21T

€ 112.00

16

131291179
ref: 16

4TH GEAR OUTPUT 22T

€ 77.50

17

131291133
ref: 17

TOP GEAR,OUTPUT,19T

€ 60.00

18

131441026
ref: 18
STD.

SPROCKET-OUTPUT,15T

€ 44.00

18

13144055
ref: 18

SPROCKET-OUTPUT,13T

€ 28.50

18

131441006
ref: 18

SPROCKET-OUTPUT,14T

€ 24.00

18

131441028
ref: 18

ENGINE,SPROCKET 16T

€ 27.00

19

42045008
ref: 19

NUT,24MM

€ 6.50

20

92022112
ref: 20

WASHER,20.5X30X1,STEE

€ 6.00

21

92022159
ref: 21

WASHER-THRUST,25MM

€ 5.50

22

92024038
ref: 22

WASHER-LOCK

€ 4.00

23

92024065
ref: 23

WASHER,LOCK

€ 3.50

24

921431370
ref: 24

COLLAR,25X32X10.5

€ 9.50

25

92033026
ref: 25

CIRCLIP

€ 6.00

26

92033029
ref: 26

CIRCLIP,18MM

€ 6.50

27

920461170
ref: 27

BEARING-NEEDLE,KT2026

€ 9.00

28

92055035
ref: 28

O RING

€ 3.00

all assemblies
