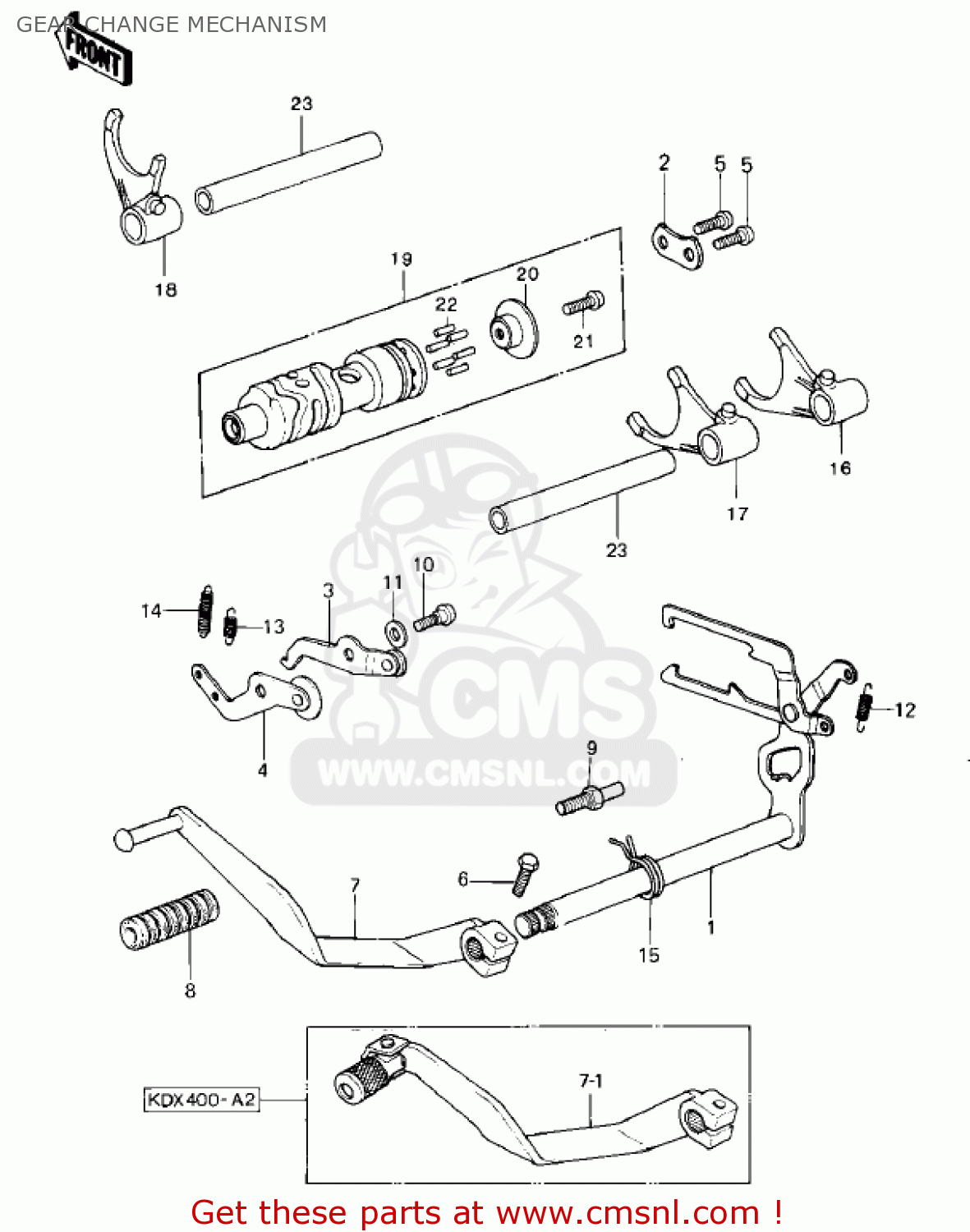

GEAR CHANGE MECHANISM

ref

part #

description

quantity

1

131611012
ref: 1

LEVER-COMP-CHANGE SHA

€ 136.00

2

13169012
ref: 2

PLATE,CHANGE DRAM

€ 11.50

3

13236007
ref: 3

LEVER-COMP,GEAR CHNG

€ 13.00

4

132361013
ref: 4

LEVER,GEAR SET

€ 6.50

5

220B0614
ref: 5

SCREW-PAN HEAD,6X14

€ 2.00

6

112G0620
ref: 6

BOLT 6X20

€ 1.00

7

132421025
ref: 7

LEVER-ASSY-CHANGE

€ 30.00

7-1

132421025
ref: 7-1

LEVER-ASSY-CHANGE

€ 30.00

8

921601108
ref: 8

DAMPER,CHANGE PEDAL

€ 5.50

9

920011401
ref: 9

BOLT,RETURN SPRING

€ 3.00

10

92011023
ref: 10

SCREW-PAN HEAD

€ 2.50

11

920221053
ref: 11

WASHER,PLAIN

€ 1.50

12

92081076
ref: 12

SPRING-CHANG LEVER

€ 3.50

13

92081091
ref: 13

SPRING-COIL

€ 3.50

14

92081119
ref: 14

SPRING,CHANGE LEVER

€ 3.00

15

92083028
ref: 15

SPRING,CHG PEDL RTRN

€ 9.50

16

131401023
ref: 16

FORK,SHIFT,LOW

€ 76.00

17

131401024
ref: 17

FORK,SHIFT,2ND&3RD

€ 76.00

18

131401025
ref: 18

FORK-SHIFT,4TH&TOP,34

€ 66.00

19

132391023
ref: 19

DRUM ASSY,CHANGE

€ 258.50

20

13142014
ref: 20

HOLDER,CHANGE DRUM PI

€ 14.00

21

220B0614
ref: 21

SCREW-PAN HEAD,6X14

€ 2.00

22

920431060
ref: 22

PIN,GEAR CHANGE DRUM

€ 2.00

23

490471003
ref: 23

ROD,SHIFT 93.7MM

€ 18.00
