CYLINDER HEAD/CYLINDER/REED VALV

KDX400-A2 KDX400 1980 USA CANADA

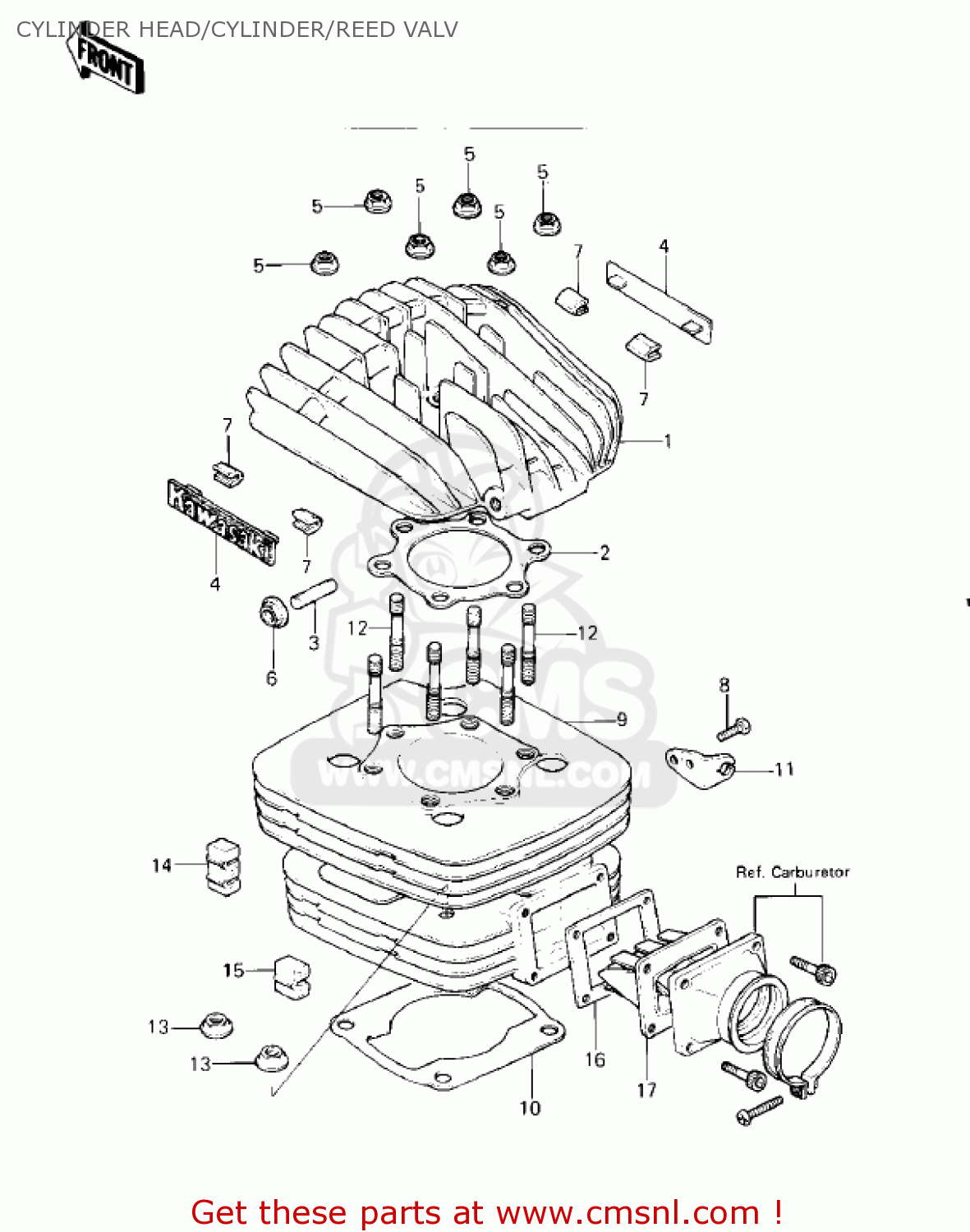

Cylinder head/cylinder/reed valv diagram KDX400-A2 KDX400 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

110011014
ref: 1

CYLINDER HEAD,FLAT BLACK

€ 120.00

110011030
ref: 1

HEAD,CYLINDER F.BLACK

€ 152.00

110041015
ref: 2

GASKET-HEAD,CYLINDER (NAS)

€ 14.00

175G1018
ref: 3

STUD,10X18

€ 2.50

560181101
ref: 4

EMBLEM,CYL HEAD

€ 17.00

920151014
ref: 5

NUT,8MM

€ 0.50

920151415
ref: 6

NUT,10MM

€ 3.00

920751166
ref: 7

DAMPER,CYLINDER HEAD

€ 2.00

112G0618
ref: 8

BOLT-UPSET

€ 0.50

110051070
ref: 9

CYLINDER,ELECTRO-FUSE

€ 516.50

110051070
ref: 9

CYLINDER,ELECTRO-FUSE

€ 516.50

110091130
ref: 10

GASKET,CYLINDER BASE (MCA)

€ 7.00

130911119
ref: 11

HOLDER

€ 2.50

920041022
ref: 12

STUD,CYLINDER

€ 4.50

920151415
ref: 13

NUT,10MM

€ 3.00

920751160
ref: 14

DAMPER RUBBER CYL

€ 3.50

920751161
ref: 15

DAMPER RUBBER CYL

€ 4.00

110091018
ref: 16

GASKET,REED VALVE (MCA)

€ 3.50

120211007
ref: 17

VALVE-ASSY-REED

€ 101.50
