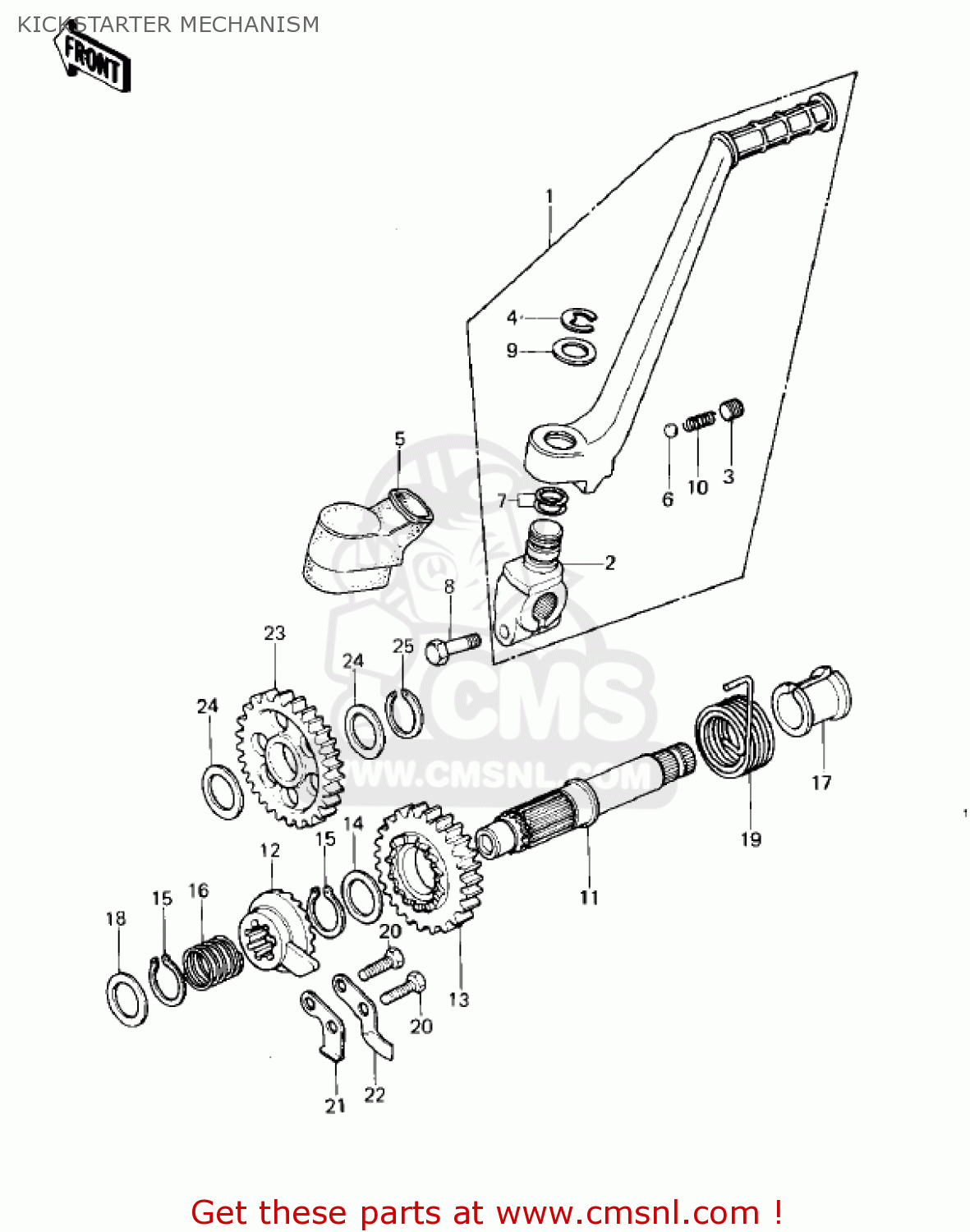

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130645003
ref: 1

LEVER-ASSY-KICK,PEDAL

€ 166.00

2

130611007
ref: 2

BOSS,KICK PEDAL

€ 65.50

3

290Q0808
ref: 3

SCREW,8X8

€ 2.50

4

482K0100
ref: 4

CIRCLIP-TYPE-E,10MM

€ 0.50

5

490061006
ref: 5

BOOT,KICKSTARTER

€ 12.50

6

600A0800
ref: 6

BALL-STEEL,1/4

€ 0.50

7

670B2015
ref: 7

O RING,15MM

€ 1.00

8

920011042
ref: 8

BOLT,HEX HEAD,8X28

€ 4.00

9

920221019
ref: 9

WASHER,15.2X20X1

€ 3.50

10

92081020
ref: 10

SPRING-KICK PEDAL

€ 2.50

11

130661009
ref: 11

SHAFT,KICK

€ 46.50

12

13078007
ref: 12

RATCHET

€ 50.00

13

590511016
ref: 13

REAR,KICKSTARTER,25T

€ 73.50

14

92022159
ref: 14

WASHER-THRUST,25MM

€ 5.50

15

92033026
ref: 15

CIRCLIP

€ 6.00

16

92081097
ref: 16

SPRING

€ 7.50

17

13070007
ref: 17

GUIDE,KICK SPRING

€ 5.50

18

92022252
ref: 18

WASHER

€ 4.00

19

92082003
ref: 19

SPRING-KICKSTARTER

€ 19.00

20

112G0618
ref: 20

BOLT-UPSET

€ 0.50

21

13072014
ref: 21

STOPPER,KICKSTARTER

€ 6.50

22

132061003
ref: 22

GUIDE-KICK

€ 7.00

22

132061003
ref: 22

GUIDE-KICK

€ 7.00

23

590511017
ref: 23

GEAR,IDLE,27T

€ 73.00

24

92022252
ref: 24

WASHER

€ 4.00

25

92033029
ref: 25

CIRCLIP,18MM

€ 6.50
