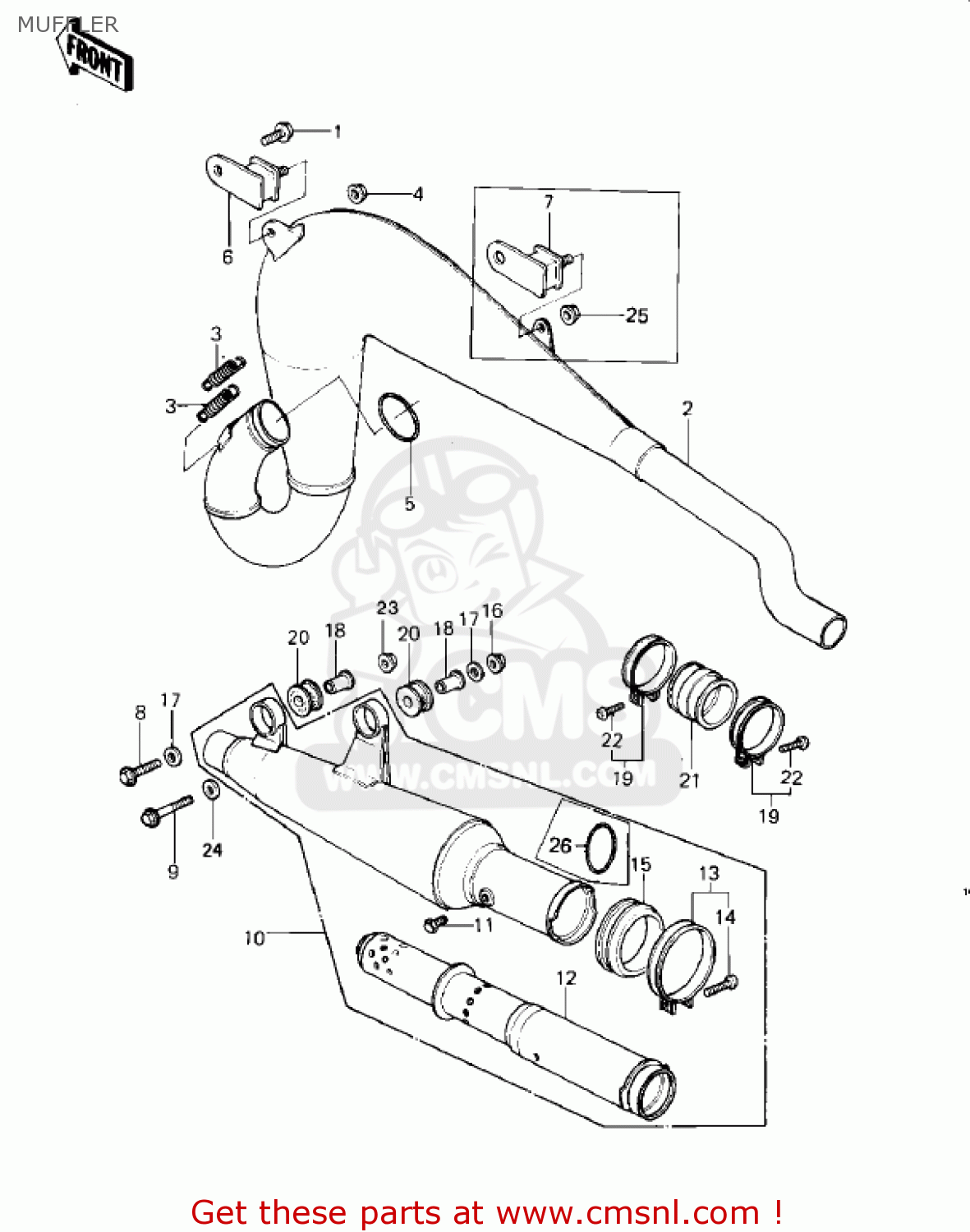

MUFFLER

ref

part #

description

quantity

1

130G0814
ref: 1

BOLT,FLANGED,8X14

€ 0.50

2

180011110
ref: 2

MUFFLER BODY,FLAT BLACK

€ 332.00

2

180011110
ref: 2

MUFFLER BODY,FLAT BLACK

€ 332.00

3

18071003
ref: 3

SPRING,MUFFLER CONNEC

€ 7.50

4

920151014
ref: 4

NUT,8MM

€ 0.50

5

920551057
ref: 5

RING-O,55MM,MUFFLER

€ 9.50

6

920751060
ref: 6

DAMPER,MUFFLER FITTIN

€ 18.50

7

920751174
ref: 7

MUFFLER BODY DAMPER

€ 19.50

8

130G0835
ref: 8

BOLT,FLANGED,8X35

€ 1.00

9

130G0855
ref: 9

BOLT-FLANGED,8X55

€ 1.50

10

180011109
ref: 10

MUFFLER ASSEMBLY,FLAT BLACK

€ 167.00

10

180011109
ref: 10

MUFFLER ASSEMBLY,FLAT BLACK

€ 167.00

11

130B0608
ref: 11

BOLT,FLANGED,6X8

€ 0.50

12

490991011
ref: 12

MUFFLER PIPE BAFFLE

€ 84.00

13

92037171
ref: 13

CLAMP

€ 9.00

14

220B0535
ref: 14

SCREW-PAN-CROS

€ 2.00

15

920931013
ref: 15

SEAL,MUFFLER

€ 7.50

16

920151014
ref: 16

NUT,8MM

€ 0.50

16

920151124
ref: 16

NUT,LOCK,8MM

€ 3.50

17

920221564
ref: 17

WASHER

€ 2.50

17

92022298
ref: 17

WASHER,8.5X35X2.3

€ 9.50

18

920271134
ref: 18

COLLAR,FUEL TANK FITT

€ 7.00

19

92037177
ref: 19

CLAMP

€ 7.50

20

920751196
ref: 20

DAMPER,MUFFLER

€ 5.50

21

920931014
ref: 21

SEAL,MUFFLER

€ 19.50

22

220B0525
ref: 22

SCREW-PAN-CROS,5X25

€ 2.50

23

920151124
ref: 23

NUT,LOCK,8MM

€ 3.50

24

92022298
ref: 24

WASHER,8.5X35X2.3

€ 9.50

25

920151014
ref: 25

NUT,8MM

€ 0.50

26

920551077
ref: 26

RING-0,50.8MM,MUFFLER

€ 14.00
