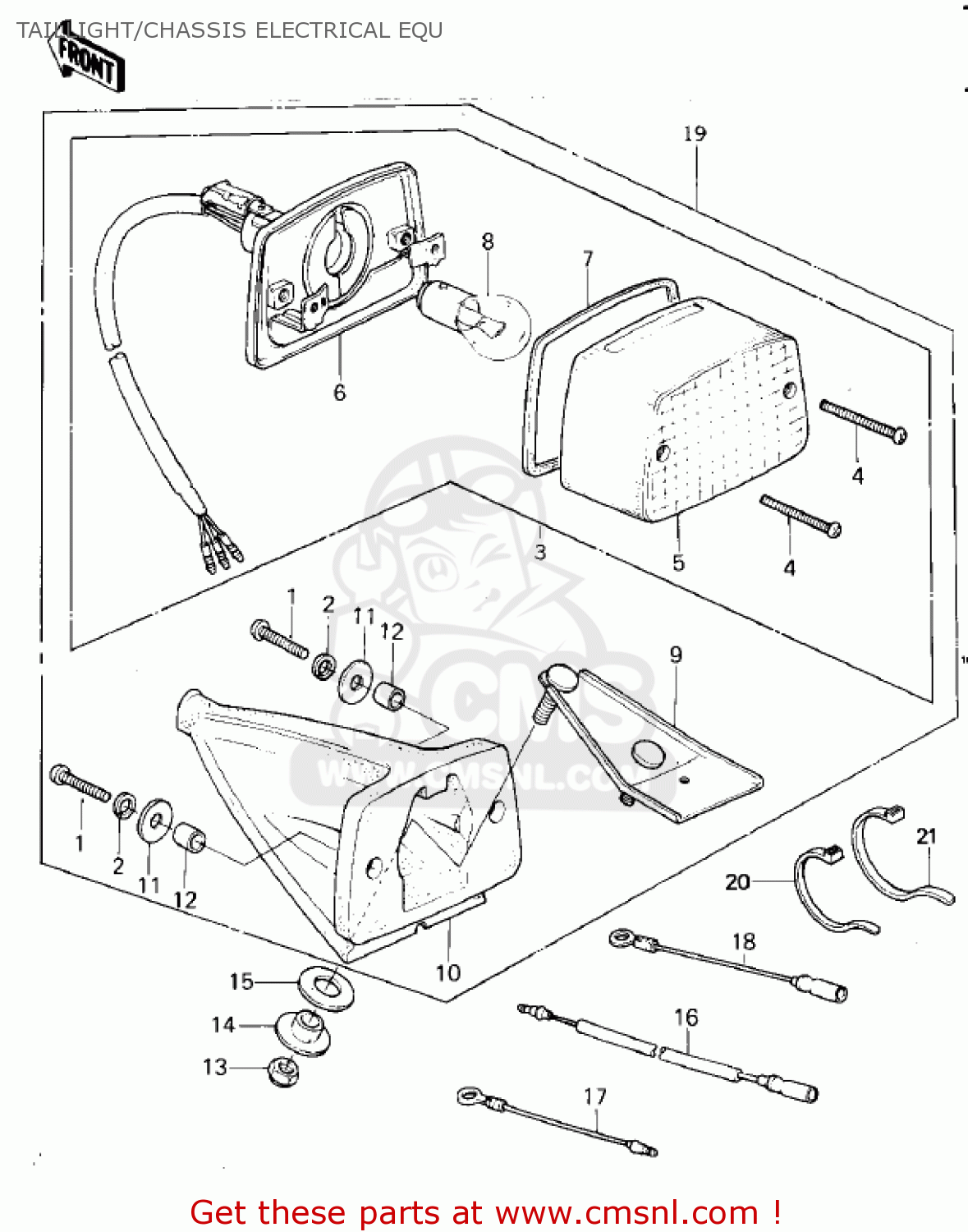

TAILLIGHT/CHASSIS ELECTRICAL EQU

ref

part #

description

quantity

1

214B0516A
ref: 1

UNAVAILABLE IN PRICE BOOK

€ 0.50

2

461F0500
ref: 2

WASHER-SPRING,5MM

€ 0.50

3

23025075
ref: 3

LAMP-TAIL,040-5459 MA

€ 96.00

4

220B0330
ref: 4

SCREW-PAN-CROS

€ 1.00

5

23026040
ref: 5

LENS,TAIL LAMP

€ 28.50

6

23027044
ref: 6

BODY-COMP-TAIL LAMP

€ 52.00

7

23028020
ref: 7

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

8

92069028
ref: 8

BULB 6V 17/5.3W

€ 4.50

9

230364001
ref: 9

BRACKET,TAIL LMP BODY

€ 2.50

10

230694001
ref: 10

BODY,TAIL LAMP

€ 31.50

11

920224001
ref: 11

WASHER,5.5X16X0.8T

€ 2.00

12

920274002
ref: 12

COLLAR,5.5X8X8.8L

€ 2.00

13

92019008
ref: 13

NUT-LOCK,6MM

€ 3.00

14

920271045
ref: 14

COLLAR

€ 3.50

15

92075118
ref: 15

DAMPER RUBBER

€ 1.00

16

260114001
ref: 16
L=500 MM

WIRE,TAIL LAMP

€ 2.00

17

260114002
ref: 17
L=100 MM

WIRE,GROUND HEAD LAMP

€ 1.00

18

260114003
ref: 18
L=100 MM

WIRE,GROUND TAIL LMP

€ 1.50

19

230244001
ref: 19

TAIL LAMP ASSY

€ 90.50

20

920723505
ref: 20

BAND,L=203.2

€ 1.00

21

920723509
ref: 21

BAND,RUBBER

€ 2.00
