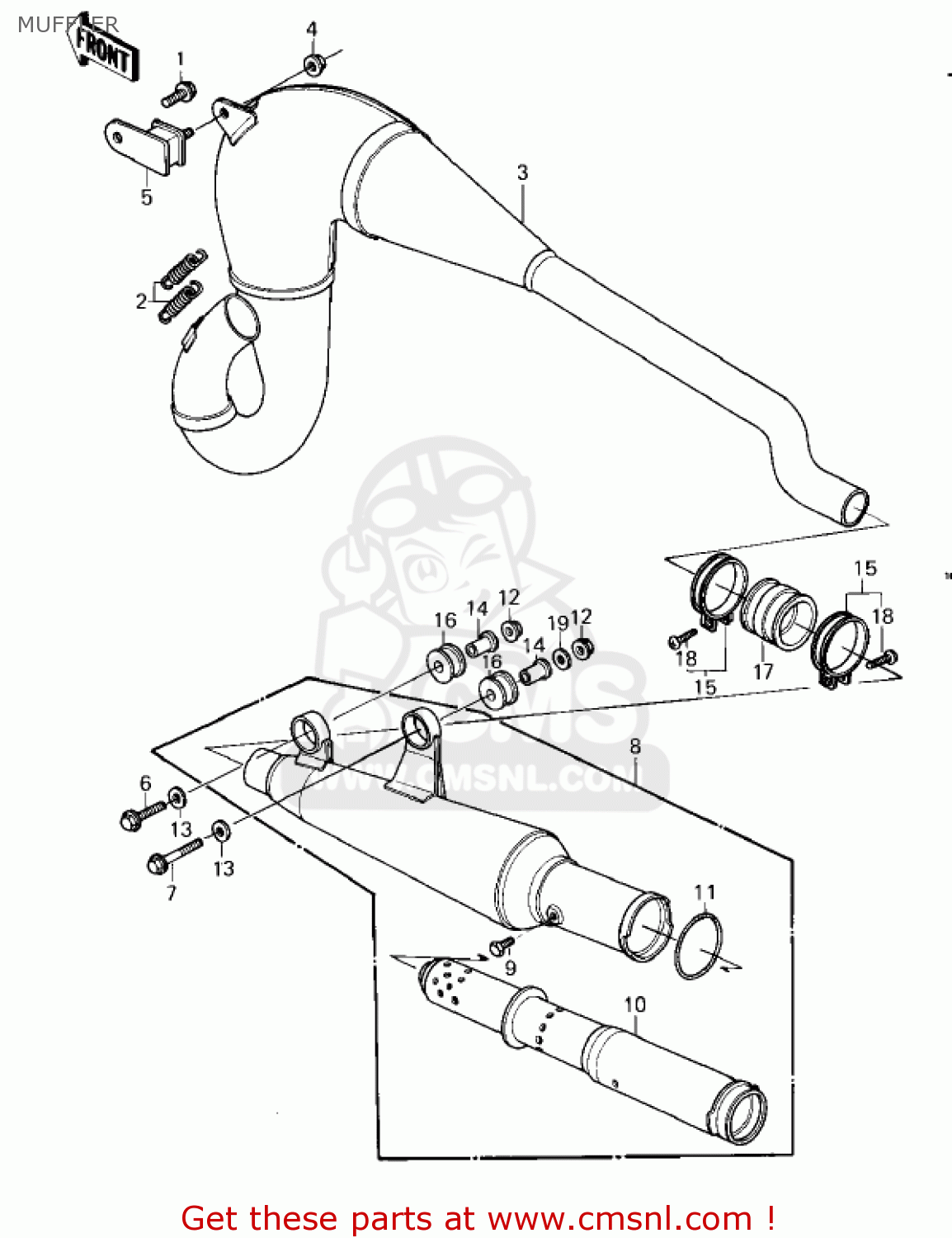

MUFFLER

ref

part #

description

quantity

1

130G0814
ref: 1

BOLT,FLANGED,8X14

€ 0.50

2

18071003
ref: 2

SPRING,MUFFLER CONNEC

€ 7.50

3

490701026
ref: 3

MUFFLER BODY

€ 275.50

4

920151014
ref: 4

NUT,8MM

€ 0.50

5

920751060
ref: 5

DAMPER,MUFFLER FITTIN

€ 18.50

6

130G0835
ref: 6

BOLT,FLANGED,8X35

€ 1.00

7

130G0855
ref: 7

BOLT-FLANGED,8X55

€ 1.50

8

180011109
ref: 8

MUFFLER ASSEMBLY,FLAT BLACK

€ 167.00

9

130B0608
ref: 9

BOLT,FLANGED,6X8

€ 0.50

10

490991011
ref: 10

MUFFLER PIPE BAFFLE

€ 84.00

11

920551077
ref: 11

RING-0,50.8MM,MUFFLER

€ 14.00

12

920151124
ref: 12

NUT,LOCK,8MM

€ 3.50

13

92022298
ref: 13

WASHER,8.5X35X2.3

€ 9.50

14

920271134
ref: 14

COLLAR,FUEL TANK FITT

€ 7.00

15

92037177
ref: 15

CLAMP

€ 7.50

16

920751196
ref: 16

DAMPER,MUFFLER

€ 5.50

17

920931014
ref: 17

SEAL,MUFFLER

€ 19.50

18

220B0525
ref: 18

SCREW-PAN-CROS,5X25

€ 2.50

19

920221564
ref: 19

WASHER

€ 2.50
