FUEL TANK

KDX250-A1 KDX250 1980 USA CALIFORNIA

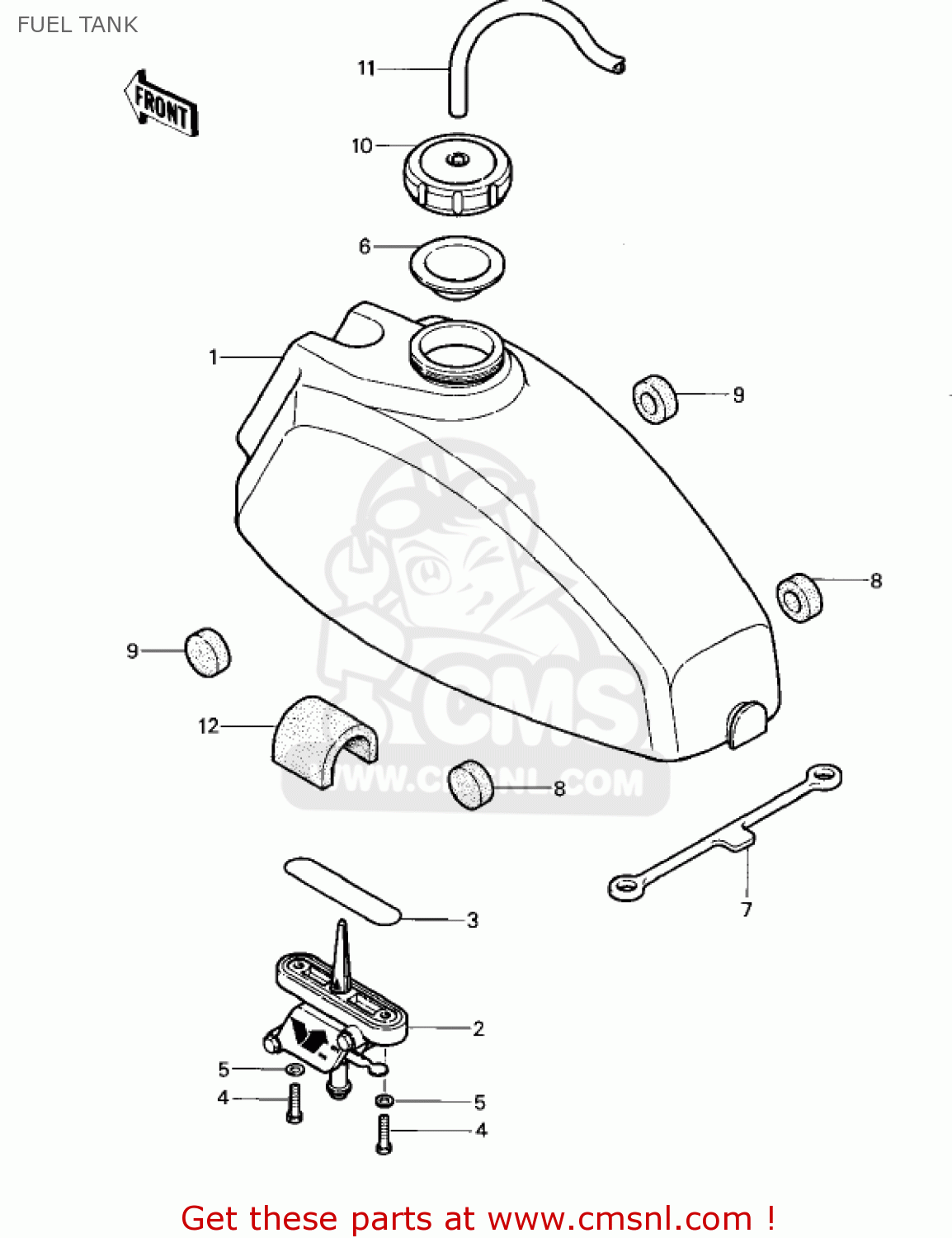

Fuel tank diagram KDX250-A1 KDX250 1980 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

FUEL TANK,LIME GREEN

€ 247.00

510234002
ref: 2

COCK ASSY,FUEL

€ 37.00

51039003
ref: 3

'O' RING

€ 4.00

920011091
ref: 4

BOLT,6X20,FUEL TAP

€ 2.50

92022183
ref: 5

WASHER,6.2X11X1.5

€ 2.50

110094001
ref: 6

GASKET,FUEL TANK CAP (NAS)

€ 7.00

92072042
ref: 7

BAND,FUEL TANK

€ 9.00

920754003
ref: 8

DAMPER

€ 3.00

920751011
ref: 9

DAMPER,6X16X7

€ 5.00

510491060
ref: 10

CAP-FUEL TANK

€ 5.50

920594001
ref: 11

TUBE,5X7X500

€ 4.00

920754008
ref: 12

FUEL TANK DAMPER

€ 2.50

all assemblies
