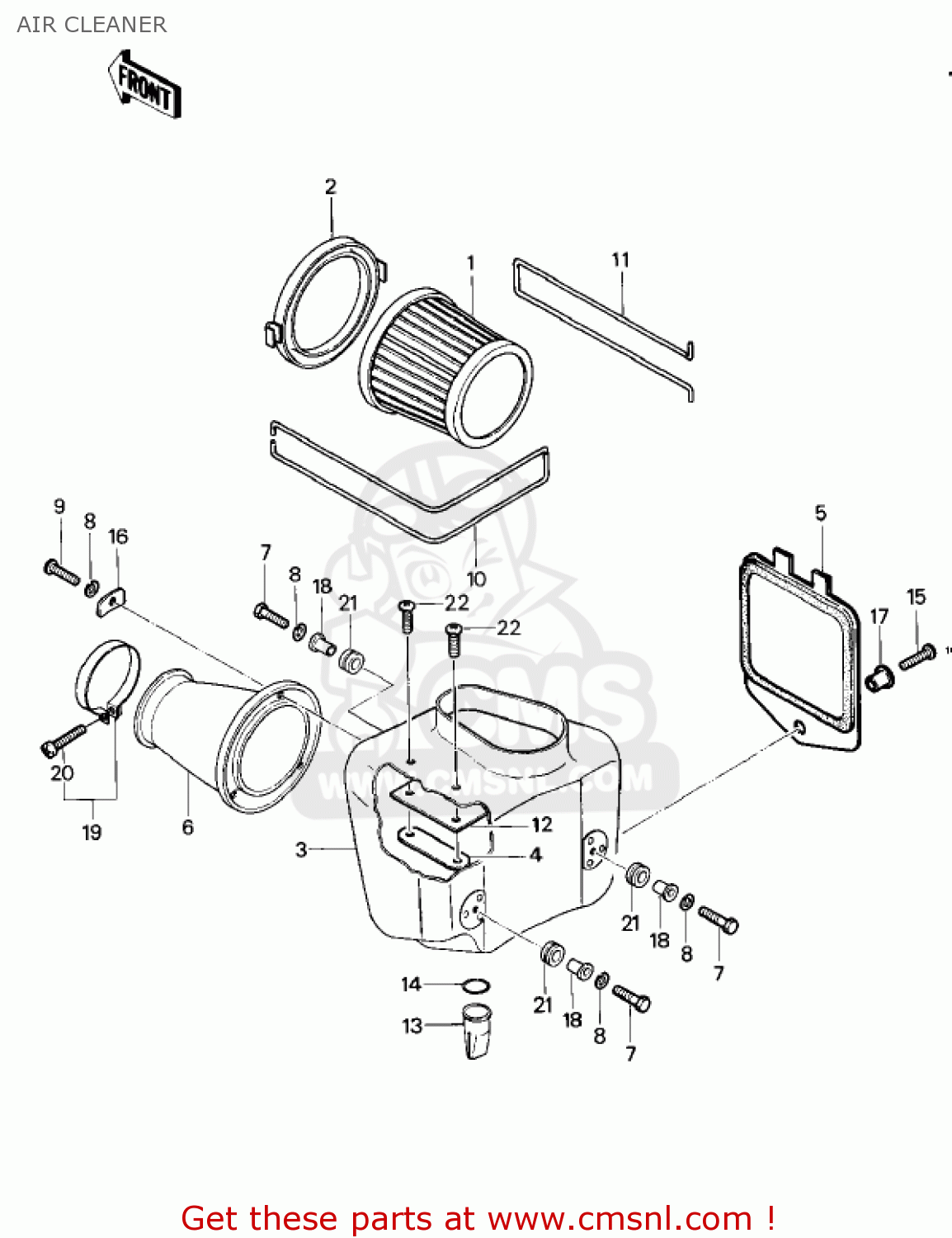

AIR CLEANER

ref

part #

description

quantity

1

110104001
ref: 1

AIR FILTER

€ 28.50

2

110114001
ref: 2

AIR FILTER CASE

€ 9.50

3

110114002
ref: 3

CASE

€ 26.00

4

131694007
ref: 4

NUT PLATE

€ 1.50

5

140254004
ref: 5

AIRBOX COVER

€ 16.00

6

140731040
ref: 6

AIR CLEANER DUCT

€ 13.50

7

112G0625
ref: 7

BOLT-UPSET,6X25

€ 4.00

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

220B0616
ref: 9

SCREW-PAN HEAD,6X16

€ 2.50

10

270124002
ref: 10

HOOK

€ 4.00

11

270124005
ref: 11

HOOK

€ 1.00

12

350194002
ref: 12

AIR BOX SHIELD FLAP

€ 3.00

13

490061012
ref: 13

BOOT

€ 5.50

14

670B2020
ref: 14

O RING,20MM

€ 1.00

15

920091289
ref: 15

SCREW,6X20

€ 2.50

16

920221018
ref: 16

WASHER,PLAIN

€ 2.00

17

920271045
ref: 17

COLLAR

€ 3.50

18

92027194
ref: 18

COLLAR

€ 3.50

19

92037068
ref: 19

CLAMP

€ 7.50

20

220B0635
ref: 20

SCREW-PAN HEAD,6X35

€ 1.00

21

92075112
ref: 21

DAMPER RUBBER

€ 2.50

22

920091287
ref: 22

SCREW,6X14

€ 1.50
