CYLINDER HEAD/CYLINDER/REED VALV

KDX250-A1 KDX250 1980 USA CALIFORNIA

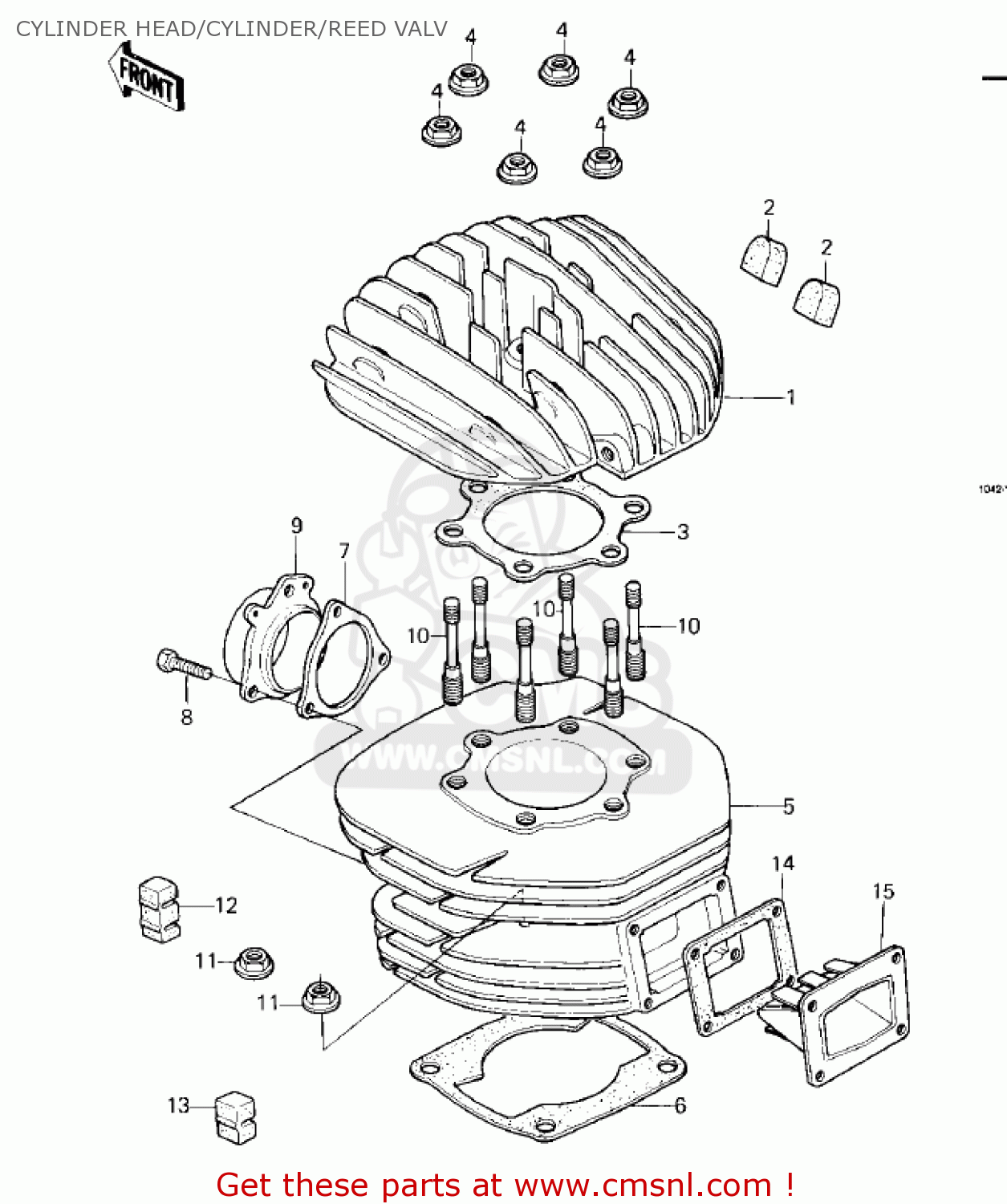

Cylinder head/cylinder/reed valv diagram KDX250-A1 KDX250 1980 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

110011031
ref: 1

CYLINDER HEAD,F.BLACK

€ 99.00

920751176
ref: 2

DAMPER,CYLINDER HEAD

€ 2.50

110041012
ref: 3

GASKET-HEAD,CYLINDER (NAS)

€ 16.00

920151014
ref: 4

NUT,8MM

€ 0.50

110051066
ref: 5

CYLINDER,ELECTRO-FUSE

€ 435.50

11009038
ref: 6

GASKET,CYLINDER BASE (MCA)

€ 7.50

110091017
ref: 7

GASKET,EXHAUST PIPE (NAS)

€ 7.00

112G0618
ref: 8

BOLT-UPSET

€ 0.50

180691013
ref: 9

HOLDER,EXHAUST PIPE

€ 45.00

920041026
ref: 10

STUD,CYLINDER

€ 4.50

920151415
ref: 11

NUT,10MM

€ 3.00

920751160
ref: 12

DAMPER RUBBER CYL

€ 3.50

920751161
ref: 13

DAMPER RUBBER CYL

€ 4.00

110091018
ref: 14

GASKET,REED VALVE (MCA)

€ 3.50

120211007
ref: 15

VALVE-ASSY-REED

€ 101.50
