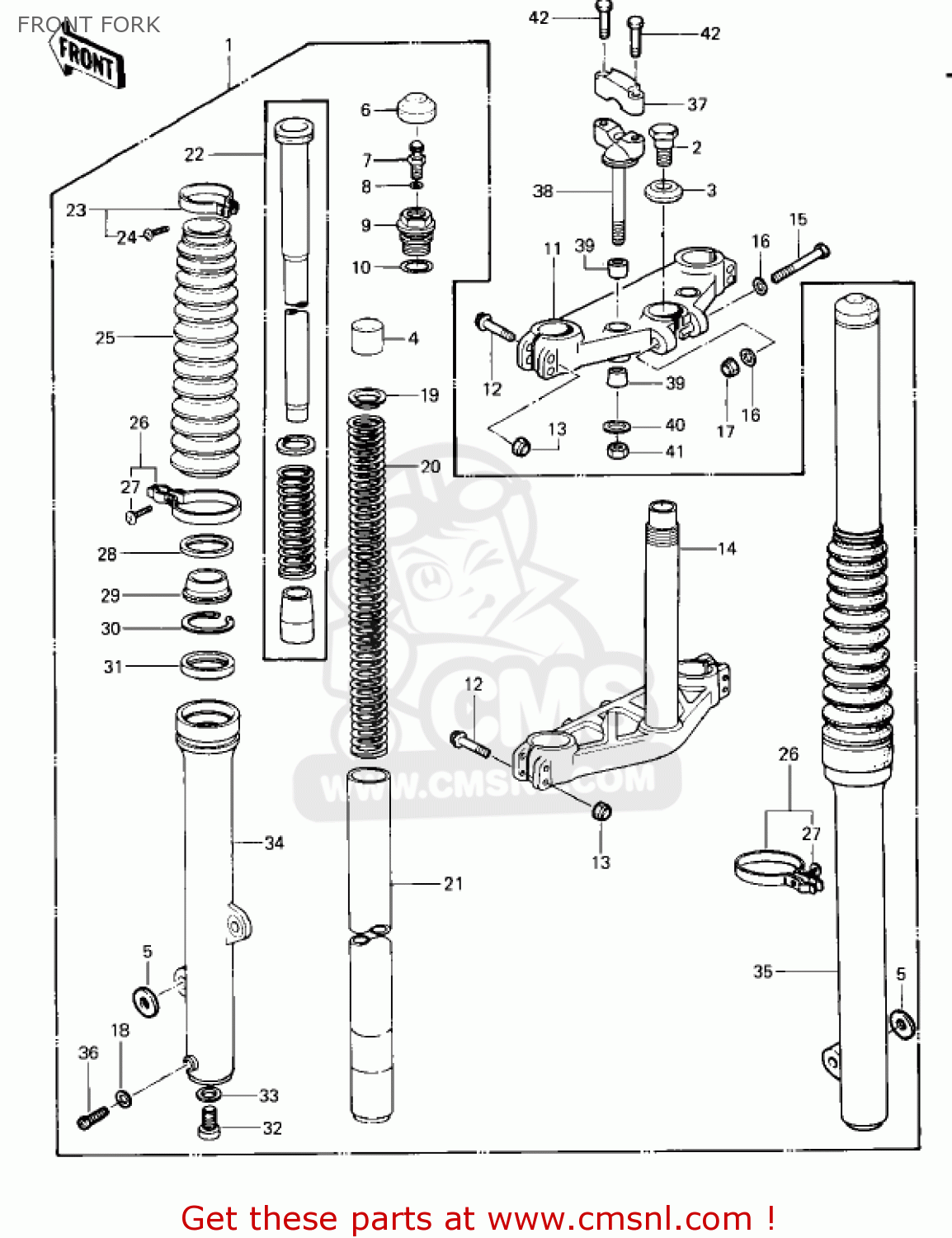

FRONT FORK

ref

part #

description

quantity

1

440014001
ref: 1

FRONT FORK

€ 739.00

2

44041065
ref: 2

BOLT,FORK TOP

€ 18.50

3

44043052
ref: 3

WASHER,PLAIN

€ 6.00

4

920264002
ref: 4

SPACER,FORK SPRING

€ 3.50

5

920224006
ref: 5

WASHER PLAIN

€ 1.50

6

440291009
ref: 6

SEAT-FORK SPRING

€ 4.00

7

161261003
ref: 7

VALVE,AIR

€ 22.50

8

920551018
ref: 8

RING-O,AIR VALVE

€ 2.50

9

440291008
ref: 9

CAP,FORK TOP

€ 38.50

10

920551050
ref: 10

RING-O,FORK TOP CAP

€ 4.00

11

440394004
ref: 11

HEAD,STEERING STEM

€ 88.50

12

920011060
ref: 12

BOLT,HEX HEAD,8X53

€ 2.00

13

440071002
ref: 13

NUT,8M/M

€ 2.00

14

440371066
ref: 14

HOLDER-FORK UNDER

€ 302.50

15

920011141
ref: 15

BOLT,HEX HEAD,8X57

€ 2.00

16

410B0800
ref: 16

WASHER-PLAIN-SMALL,8M

€ 0.50

17

920151124
ref: 17

NUT,LOCK,8MM

€ 3.50

18

44045002
ref: 18

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

19

440281003
ref: 19

GUIDE-FORK SPRING

€ 7.50

20

440264001
ref: 20

SPRING FORK INNER

€ 33.50

21

440134001
ref: 21

TUBE FORK INNER

€ 159.50

22

440224001
ref: 22

CYLINDER ASSY FORK

€ 58.50

23

920721008
ref: 23

BAND,BOOTS

€ 7.50

24

220B0420
ref: 24

SCREW-PAN-CROS

€ 2.00

25

490064002
ref: 25

BOOT.FORK

€ 35.50

26

920721026
ref: 26

CLAMP,BOOT,L.H

€ 8.50

27

220B0620
ref: 27

SCREW-PAN HEAD,6X20

€ 2.50

28

320991010
ref: 28

CASE,DUST SHIELD

€ 8.50

29

920931022
ref: 29

DUST SHIELD,FORK OT T

€ 8.50

30

920331035
ref: 30

SNAP RING,FORK OUT TU

€ 2.50

31

920491042
ref: 31

OIL SEAL,FORK OUTE TU

€ 13.50

32

920011186
ref: 32

BOLT,FORK CYLINDER

€ 2.00

33

110091127
ref: 33

GASKET,FORK CYLID BOL (NAS)

€ 3.00

34

440054001
ref: 34

TUBE L H FORK OUTER

€ 129.00

35

440064001
ref: 35

TUBE R H FORK OUTER

€ 129.00

36

220B0408
ref: 36

SCREW-PAN-CROS

€ 0.50

37

46012008
ref: 37

HOLDER-HANDLE,UPP

€ 23.00

38

46012010
ref: 38

HOLDER-HANDLE,LWR

€ 20.00

39

92075275
ref: 39

DAMPER,HANDLE

€ 6.00

40

92022196
ref: 40

WASHER,10.5X30X2

€ 2.00

41

92019021
ref: 41

NUT,LOCK,10M/M

€ 2.00

42

920011405
ref: 42

BOLT,8X38

€ 10.00
