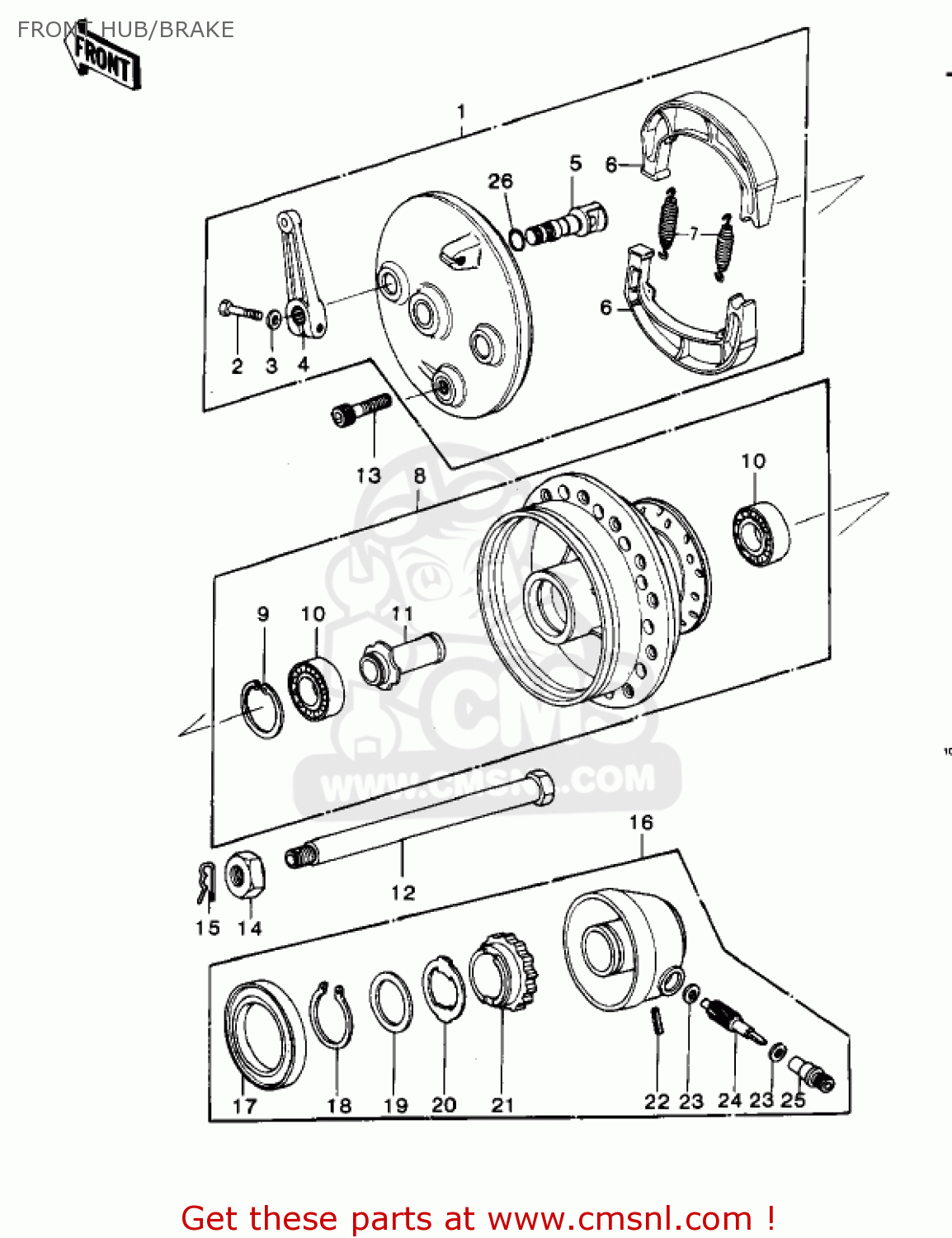

FRONT HUB/BRAKE

ref

part #

description

quantity

1

410351002
ref: 1

PANEL ASSY,FRNT BRAKE

€ 289.00

2

112G0622
ref: 2

BOLT-UPSET

€ 2.50

3

410B0600
ref: 3

WASHER-PLAIN-SMALL,6M

€ 0.50

4

410531003
ref: 4

LEVER,FRNT BRAKE CAM

€ 43.50

5

410501002
ref: 5

CAM-BRAKE

€ 29.00

6

410481068
ref: 6

SHOE-BRAKE (NAS)

€ 16.00

7

42020004
ref: 7

SPRING-BRAKE SHOE

€ 5.50

8

410344001
ref: 8

DRUM ASSY FRONT BRAKE

€ 167.50

9

920331041
ref: 9

CIRCLIP,42MM

€ 4.00

10

92045033
ref: 10

BEARING,BALL,#6302NS

€ 20.00

11

920271034
ref: 11

COLLAR,FRNT BRAKE DRM

€ 15.00

12

410684001
ref: 12

AXLE FRONT

€ 36.00

13

920014002
ref: 13

BOLT SOCKET 10X40

€ 3.00

14

42045020
ref: 14

NUT,14MM

€ 6.50

15

550D3230
ref: 15

PIN-COTTER,3.2X30

€ 1.50

16

41078011
ref: 16

GEAR BOX ASSY

€ 103.50

17

654A506509
ref: 17

OIL SEAL,#50659

€ 10.50

18

480J2400
ref: 18

CIRCLIP-TYPE-C,24MM

€ 3.50

19

41065005
ref: 19

WASHER,24.5X32X0.8

€ 2.00

20

41064015
ref: 20

RECEIVER-SPEEDOMETER

€ 5.50

21

41059027
ref: 21

GEAR SPEEDOMETER

€ 21.00

22

41082001
ref: 22

PIN-SPRING

€ 2.50

23

41063001
ref: 23

WASHER-THRST SPD PINI

€ 3.00

24

41060015
ref: 24

PINION,SPEEDOMETER

€ 17.00

25

41062005
ref: 25

BUSHING,SPEEDOMETER C

€ 12.00

26

670B2015
ref: 26

O RING,15MM

€ 1.00
