IGNITION/GENERATOR

KDX250-A1 KDX250 1980 USA CALIFORNIA

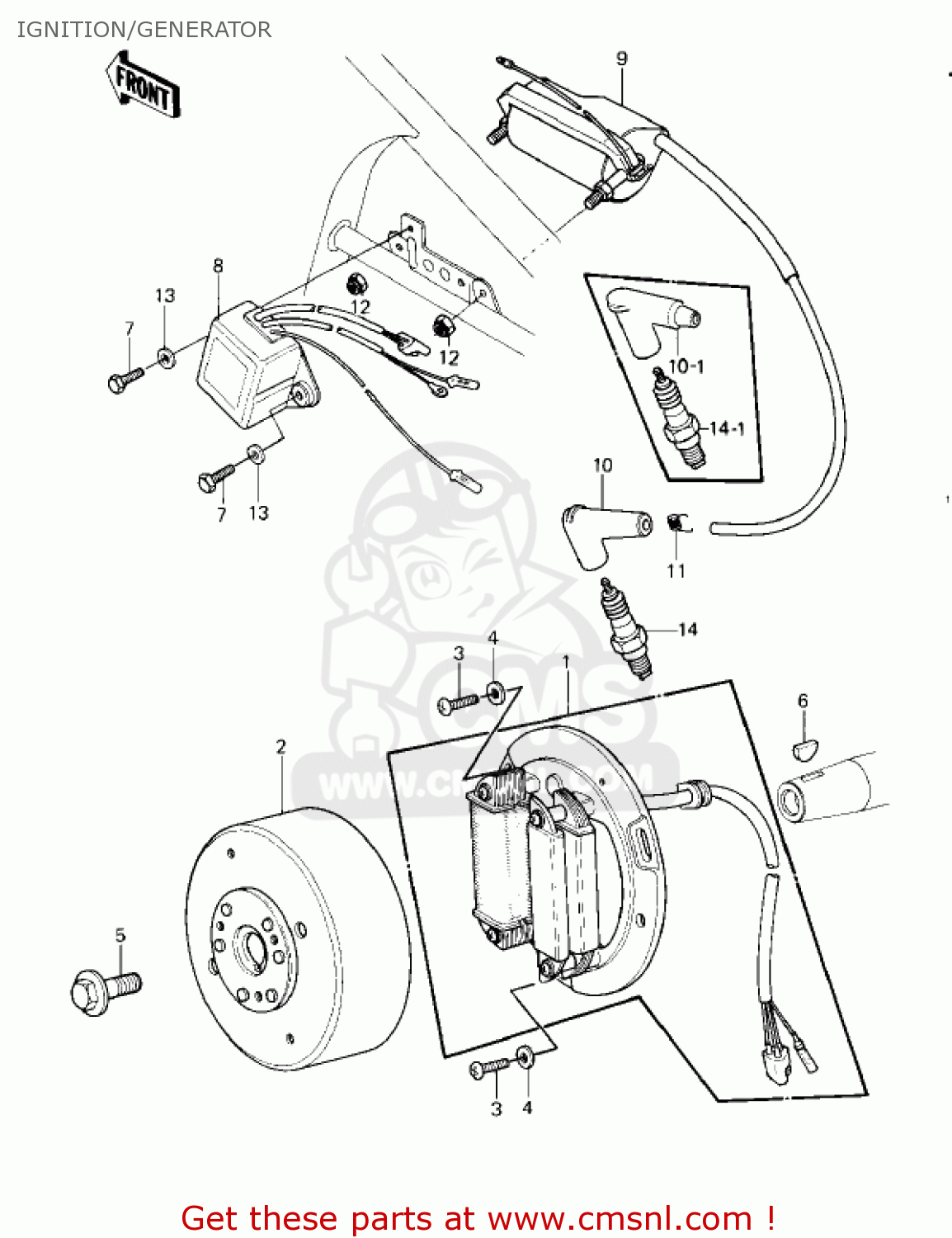

Ignition/generator diagram KDX250-A1 KDX250 1980 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

210031032
ref: 1

STATOR ASSY

€ 432.50

210071012
ref: 2

FLYWHEEL MAGNETO

€ 432.00

220B0520A
ref: 3

SCREW-PAN HEAD,5X20

€ 0.50

411B0500
ref: 4

WASHER-PLAIN,5MM

€ 0.50

920011201
ref: 5

BOLT,ROTOR,10X40

€ 7.00

92038001
ref: 6

WOODRUFF KEY

€ 3.00

110G0618
ref: 7

BOLT,6X18

€ 0.50

211191009
ref: 8

IGNITER

€ 534.50

211211024
ref: 9

IGNITION COIL

€ 87.00

21130009
ref: 10

CAP-SPARK PLUG

€ 15.00

10-1

211601009
ref: 10-1
CANADA

CAP-ASSY-PLUG

€ 28.00

92101001
ref: 11

SPRING-SPARK PLUG CAP

€ 1.50

92019008
ref: 12

NUT-LOCK,6MM

€ 3.00

92022024
ref: 13

WASHER,7X16X1.2

€ 2.50

92070037
ref: 14

PLUG-SPARK,B8ES(NGK)

€ 3.00

920701021
ref: 15
CANADA

BR8ES (NGK SPARKPLUG)

€ 3.50
