REAR SUSPENSION
KDX200-C3 1988 USA CANADA

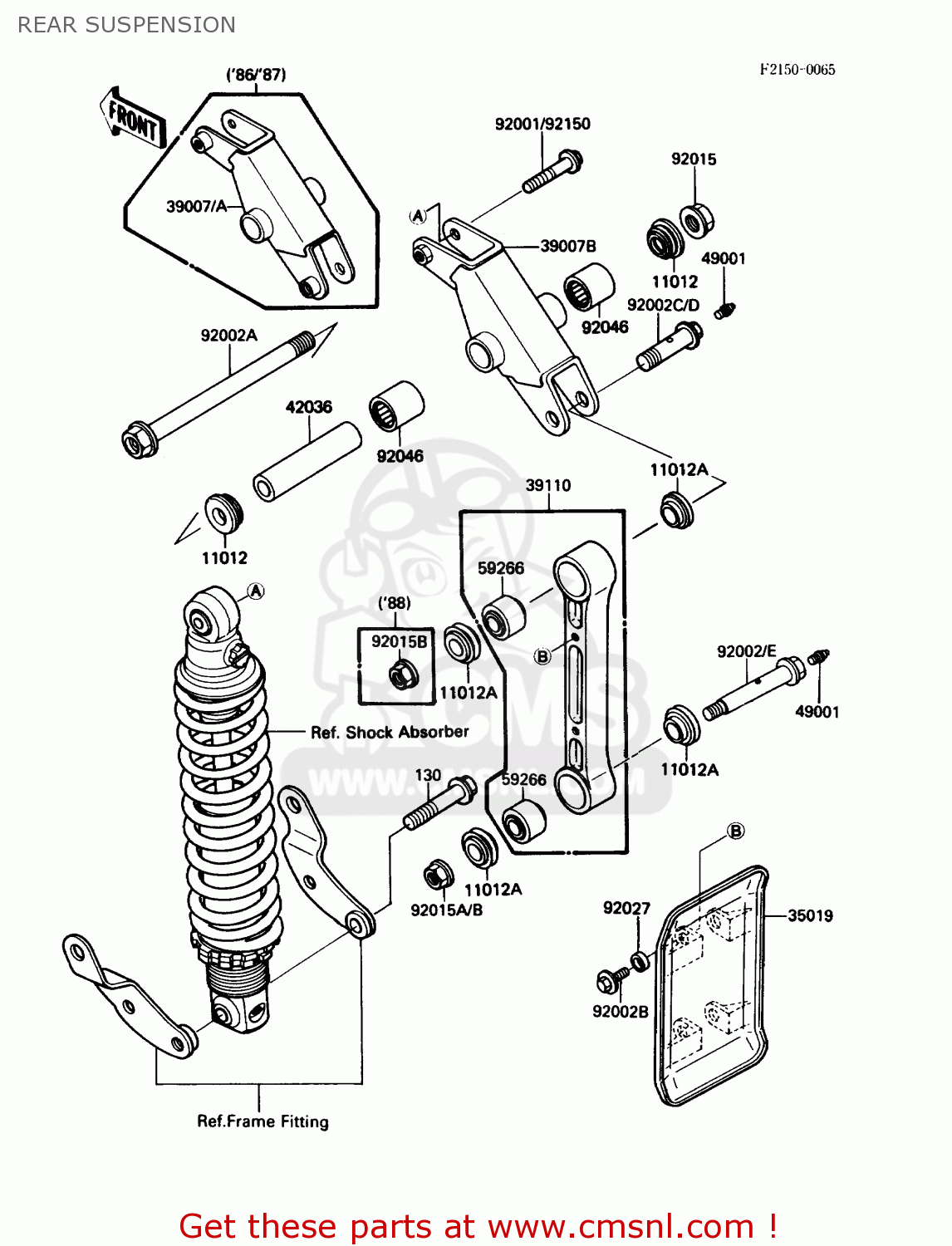

Rear suspension diagram KDX200-C3 1988 USA CANADA
REAR SUSPENSION KDX200-C3 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130P1260
ref: 130
BOLT-FLANGED
€ 5.50
11012
110121207
ref: 11012
CAP
€ 12.00
11012A
110121418
ref: 11012A
CAP,ROD
€ 10.50
35019
350191163
ref: 35019
FLAP,ROD
€ 12.50
39007B
390071147
ref: 39007B
ARM-SUSP,UNI TRAK
€ 110.00
39110
391101069
ref: 39110
ROD-ASSY-TIE
€ 278.00
42036
420361119
ref: 42036
SLEEVE,SUSPENSION ARM
€ 23.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
59266
592661056
ref: 59266
JOINT-BALL,ROD
€ 79.50
92002A
920021415
ref: 92002A
BOLT,14X132
€ 36.00
92002B
920021460
ref: 92002B
BOLT,6X14
€ 3.00
92002D
920021923
ref: 92002D
BOLT
€ 15.00
92002E
920021924
ref: 92002E
BOLT
€ 21.50
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015B
920151433
ref: 92015B
NUT,12MM
€ 6.00
92027
920271885
ref: 92027
COLLAR
€ 4.00
92046
920461128
ref: 92046
BEARING-NEEDLE,TA2030
€ 25.00
92150
921501125
ref: 92150
BOLT
€ 4.50
