CRANKSHAFT/PISTON(S)

KDX200-C3 1988 USA CANADA

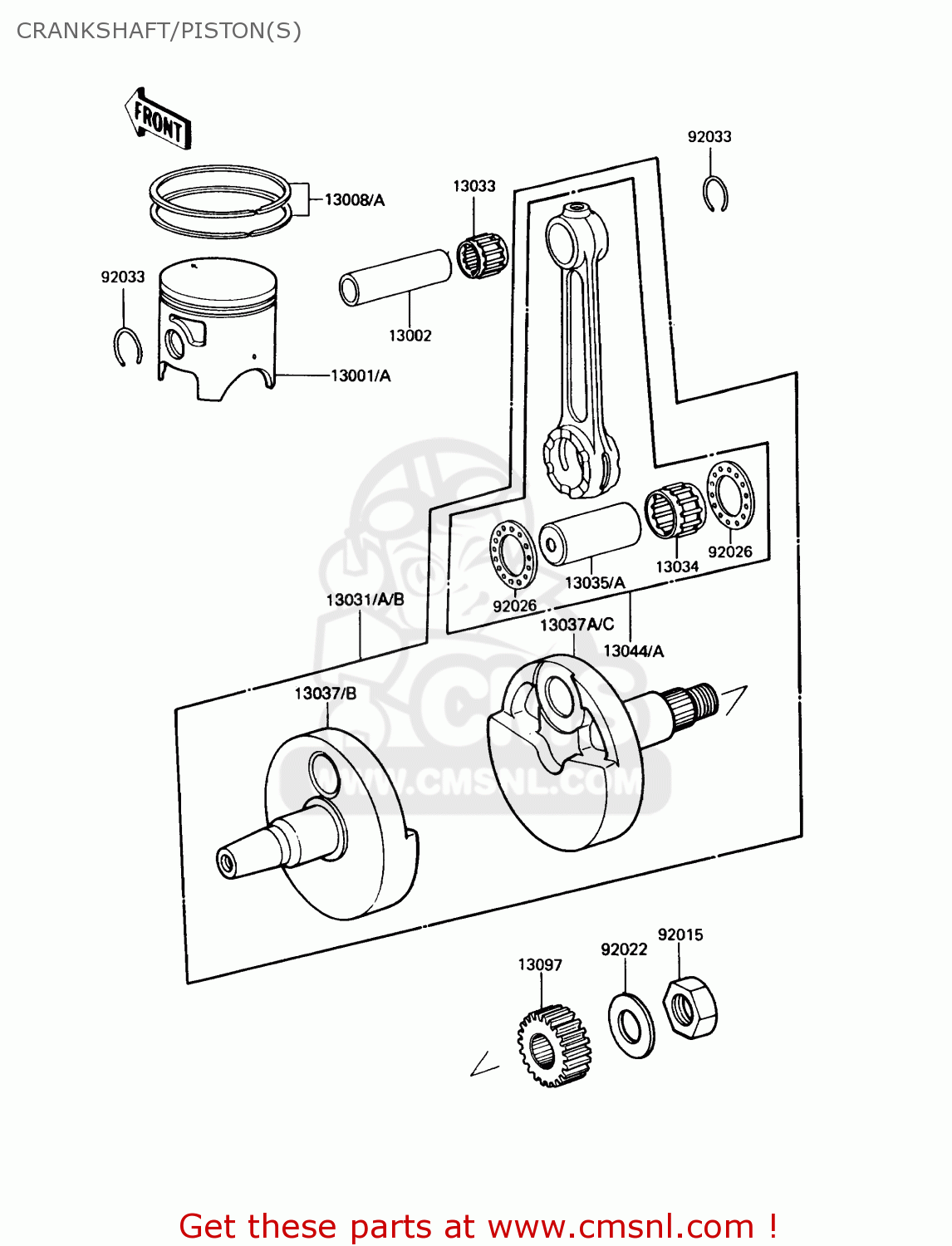

Crankshaft/piston(s) diagram KDX200-C3 1988 USA CANADA

CRANKSHAFT/PISTON(S) KDX200-C3 1988 USA CANADA
CRANKSHAFT/PISTON(S) KDX200-C3 1988 USA CANADA
CRANKSHAFT/PISTON(S) KDX200-C3 1988 USA CANADA
prices are in EUR
ref
part #
description
quantity
13001A
130011256
ref: 13001A
PISTON-ENGINE
130011256
€ 78.00
13002
130021053
ref: 13002
PIN-PISTON
130021053
€ 16.50
13008
130081093
ref: 13008
RING-SET-PISTON
130081093
€ 45.50
13031B
130311253
ref: 13031B
CRANKSHAFT-COMP
€ 384.50
13033
130331007
ref: 13033
BEARING-SMALL END
130331007
€ 24.00
13034
130341071
ref: 13034
BEARING-BIG END
130341071
€ 37.50
13035A
130351010
ref: 13035A
PIN-CRANK
130351010
€ 33.00
13037B
130371315
ref: 13037B
CRANKSHAFT,LH
€ 148.00
13037C
130371316
ref: 13037C
CRANKSHAFT,RH
€ 163.50
13044A
130445062
ref: 13044A
SET-CONNECTING ROD
€ 161.50
13097
130971157
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 46.50
92015
920151176
ref: 92015
NUT,16MM
920151176
€ 3.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
920221356
€ 4.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
92026011
€ 6.50
92033
920331161
ref: 92033
RING-SNAP,PISTON PIN
920331161
€ 2.50
