FRAME
KDX200-C3 1988 USA CANADA

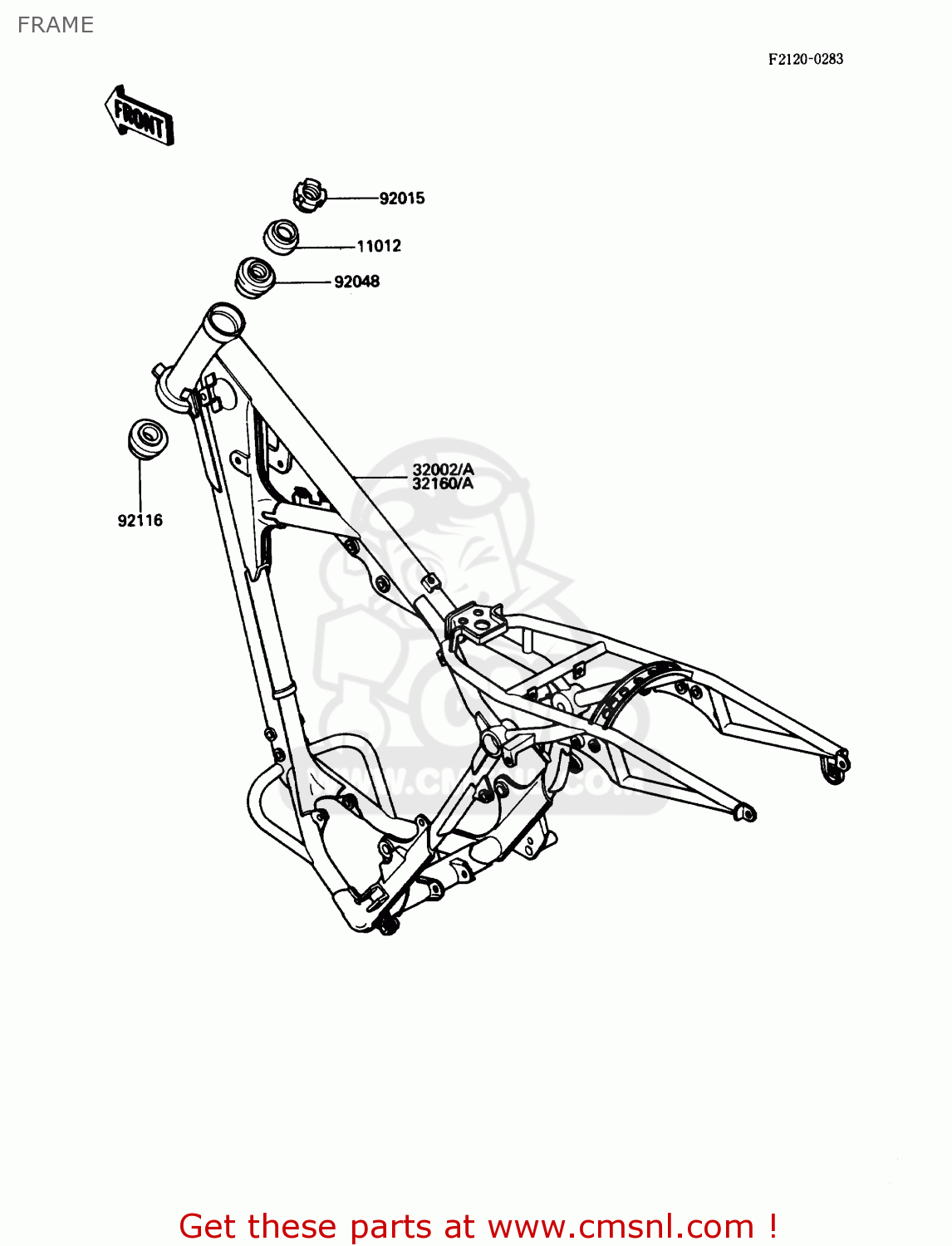

Frame diagram KDX200-C3 1988 USA CANADA
FRAME KDX200-C3 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
46098015
ref: 11012
CAP,STEERING STEM
€ 3.50
32160
320021953CC
ref: 32160
FRAME-COMP,L.GREEN
€ 699.50
32160A
320021953X3
ref: 32160A
US
FRAME-COMP,SILVER NO.
€ 699.50
92015
92090024
ref: 92015
NUT,STEERING STEM
€ 14.50
92048
92047017
ref: 92048
CONE,STRNG,STEM
€ 49.50
92116
921161008
ref: 92116
BEARING-ROLLER,LWR,32
€ 78.00
