GENERATOR
KDX200-C3 1988 USA CANADA

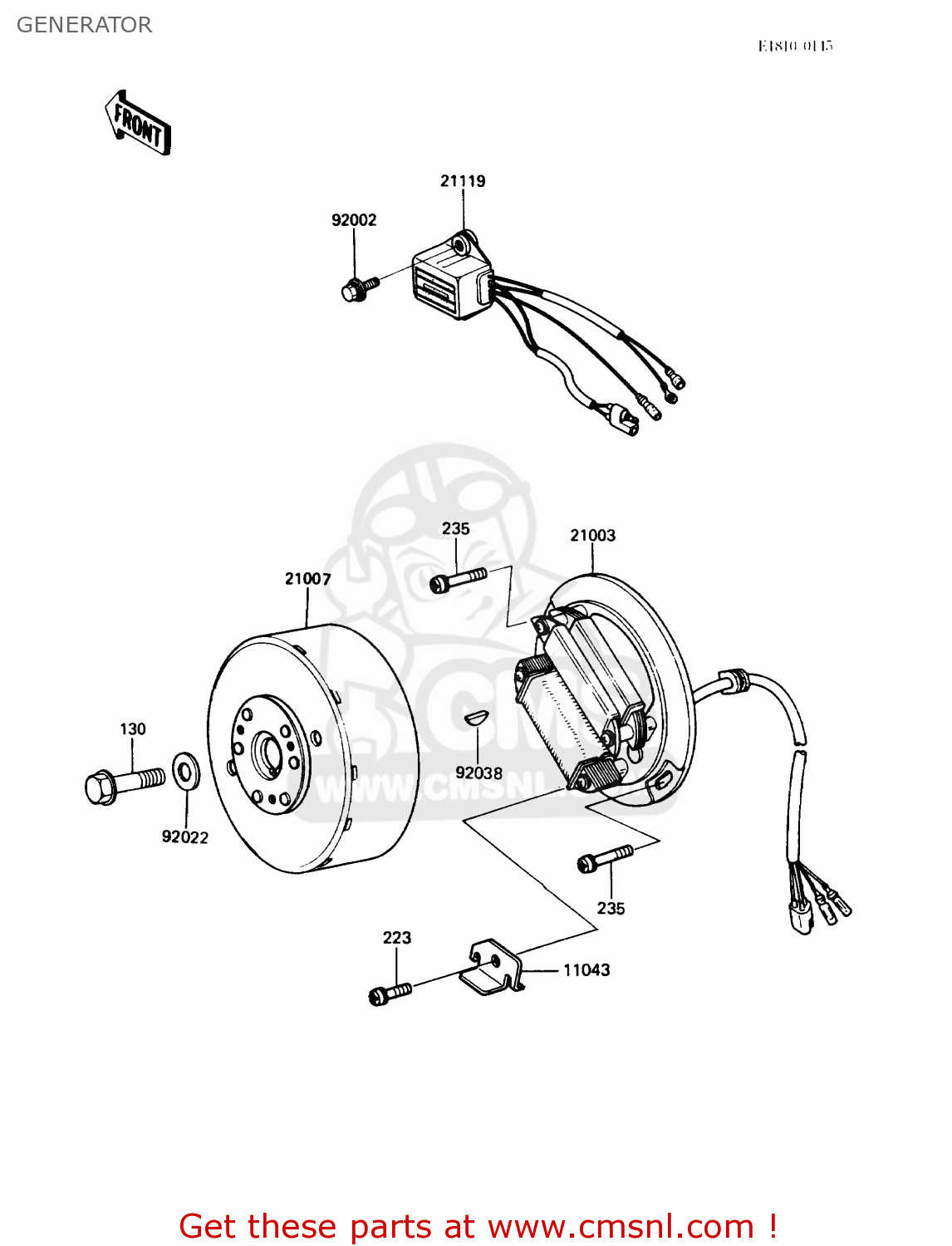

Generator diagram KDX200-C3 1988 USA CANADA
GENERATOR KDX200-C3 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130P0835
ref: 130
BOLT-FLANGED
€ 1.00
223
223B0406
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
235
235B0616
ref: 235
SCREW-PAN-WP-CROS
€ 3.00
11043
110431496
ref: 11043
BRACKET,STATOR
€ 3.00
21003
210031178
ref: 21003
STATOR
€ 377.50
21007
210071145
ref: 21007
ROTOR
€ 485.00
21119
211191199
ref: 21119
IGNITER
€ 345.00
92002
920021461
ref: 92002
BOLT,6X16
€ 3.00
92022
92022276
ref: 92022
WASHER,PLAIN,8MM
€ 6.50
92038
92038001
ref: 92038
WOODRUFF KEY
€ 3.00
