FRONT MASTER CYLINDER

KDX200-C3 1988 USA CANADA

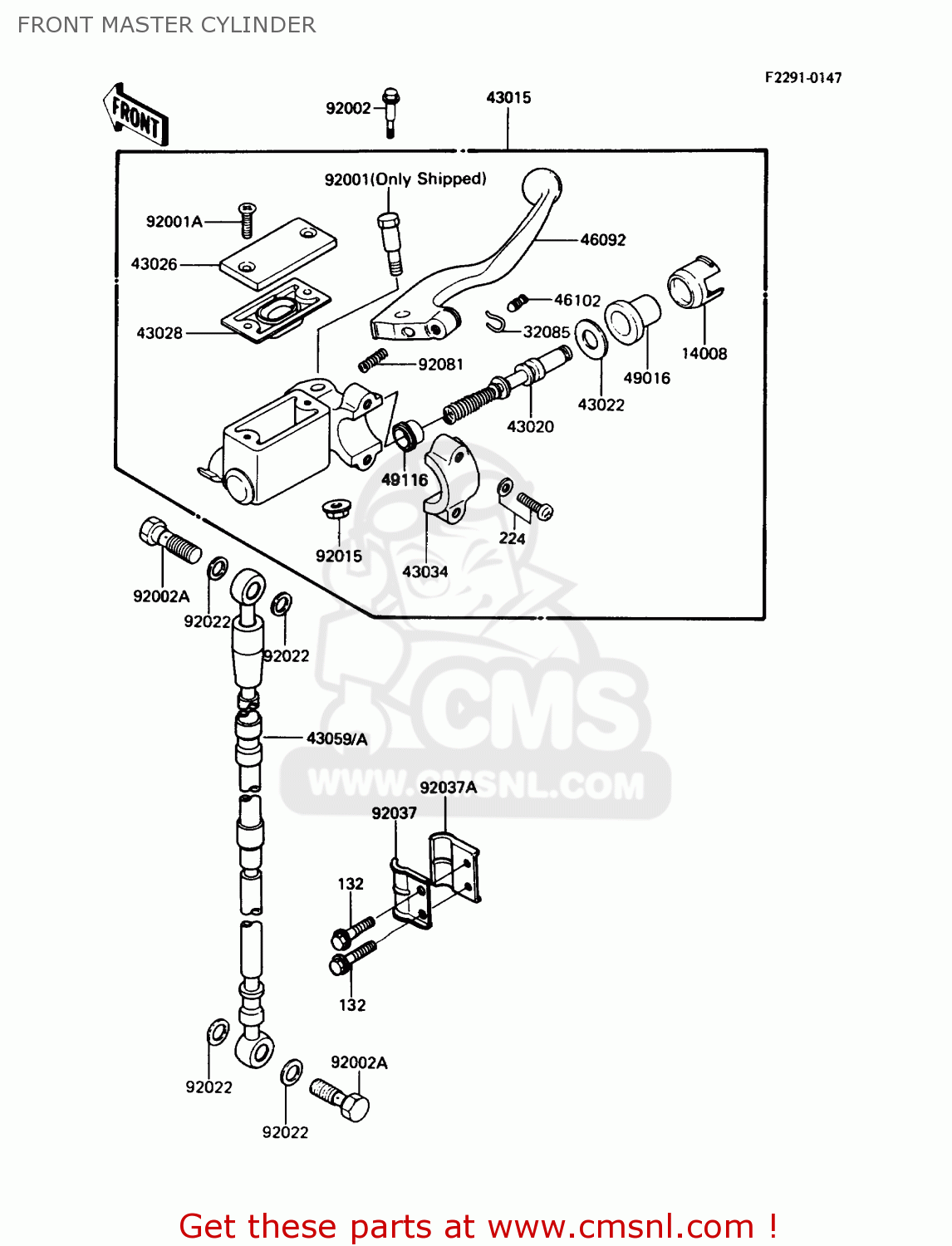

Front master cylinder diagram KDX200-C3 1988 USA CANADA

FRONT MASTER CYLINDER KDX200-C3 1988 USA CANADA
FRONT MASTER CYLINDER KDX200-C3 1988 USA CANADA
FRONT MASTER CYLINDER KDX200-C3 1988 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
224
224B0625
ref: 224
SCREW-PAN-WP-CROS
224B0625
€ 0.50
14008
140081030
ref: 14008
LINER
140081030
€ 6.50
32085
320851087
ref: 32085
STOPPER,BRAKE LEVER R
320851087
€ 2.50
43015
430151281
ref: 43015
CYLINDER-ASSY-MASTER,
430151281
€ 270.00
43020
430201021
ref: 43020
PISTON-COMP-BRAKE
430201021
€ 46.00
43022
430221008
ref: 43022
STOPPER-BRAKE
430221008
€ 2.50
43026
430261019
ref: 43026
CAP-BRAKE
430261019
€ 17.00
43028
430281030
ref: 43028
DIAPHRAGM
430281030
€ 12.50
43034
430341012
ref: 43034
HOLDER-BRAKE
430341012
€ 14.00
43059A
430591360
ref: 43059A
HOSE-BRAKE,FR
€ 170.00
46092
460921108
ref: 46092
LEVER-GRIP,BRAKE
460921108
€ 21.00
46102
461021120
ref: 46102
ROD,BRAKE LEVER ADJUS
461021120
€ 4.50
49016
490161035
ref: 49016
COVER-SEAL
490161035
€ 5.50
49116
491161057
ref: 49116
VALVE-ASSY,MASTER CYL
491161057
€ 26.00
92001
920011512
ref: 92001
BOLT,6X37.3,BLACK
920011512
€ 5.50
92001A
920011532
ref: 92001A
SCREW-COUNTERSUNK
920011532
€ 2.50
92002
920021648
ref: 92002
BOLT
€ 6.00
92002A
920021888
ref: 92002A
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
920371362
ref: 92037
CLAMP,BRAKE HOSE,OUTS
920371362
€ 4.50
92037A
920371363
ref: 92037A
CLAMP,BRAKE HOSE,INSI
920371363
€ 4.50
92081
920811428
ref: 92081
SPRING,BRAKE LEVER
920811428
€ 7.50
