ENGINE COVER(S)
KDX200-C3 1988 USA CANADA

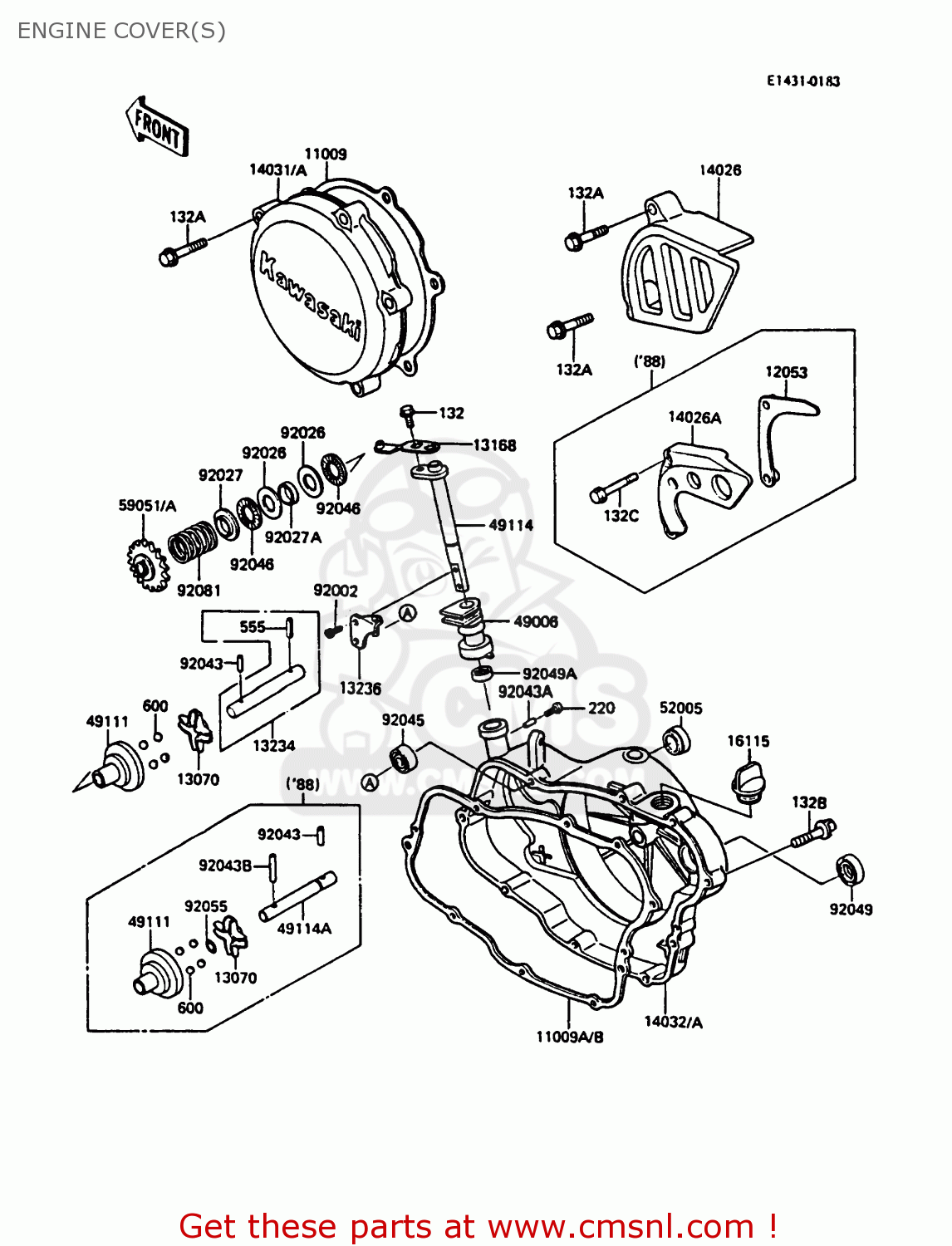

Engine cover(s) diagram KDX200-C3 1988 USA CANADA
ENGINE COVER(S) KDX200-C3 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132G0640
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
11009
110091266
ref: 11009
GASKET,GENERATOR COVE (MCA)
€ 6.00
11009B
110091740
ref: 11009B
GASKET,CLUTCH COVER (MCA)
€ 13.50
12053
120531228
ref: 12053
GUIDE-CHAIN
€ 16.50
13070
130701122
ref: 13070
GUIDE
€ 45.50
13168
131681283
ref: 13168
LEVER
€ 7.00
13236
132361139
ref: 13236
LEVER-COMP,GOVERNOR
€ 7.00
14026A
140261136
ref: 14026A
COVER-CHAIN
€ 15.50
14031A
140311213
ref: 14031A
COVER-GENERATOR
€ 29.00
14032A
140321240
ref: 14032A
COVER-CLUTCH
€ 184.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
49006
490061180
ref: 49006
BOOT
€ 6.50
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
49114
491141055
ref: 49114
SHAFT-GOVERNOR
€ 37.00
49114A
491141058
ref: 49114A
SHAFT-GOVERNOR
€ 19.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
59051A
590511189
ref: 59051A
GEAR-SPUR,GOVERNOR,18
€ 22.50
92002
920021403
ref: 92002
BOLT,SOCKET,4X8
€ 2.00
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92027
920271838
ref: 92027
COLLAR
€ 17.50
92027A
920271839
ref: 92027A
COLLAR,15.2X17X4
€ 8.50
92043
920431256
ref: 92043
PIN,3X12.8
€ 3.00
92043A
920431293
ref: 92043A
PIN,2X9.8
€ 4.00
92043B
920431319
ref: 92043B
PIN,3X19.8
€ 2.50
92045
920451048
ref: 92045
BEARING-BALL,#608
€ 11.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92049
92049013
ref: 92049
OIL SEAL,SB18307
€ 9.50
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
92055
920551343
ref: 92055
RING-O,5.5X1.5
€ 3.00
92081
920811769
ref: 92081
SPRING,GOVERNOR
€ 3.00
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
