CARBURETOR
KDX200-C3 1988 USA CANADA

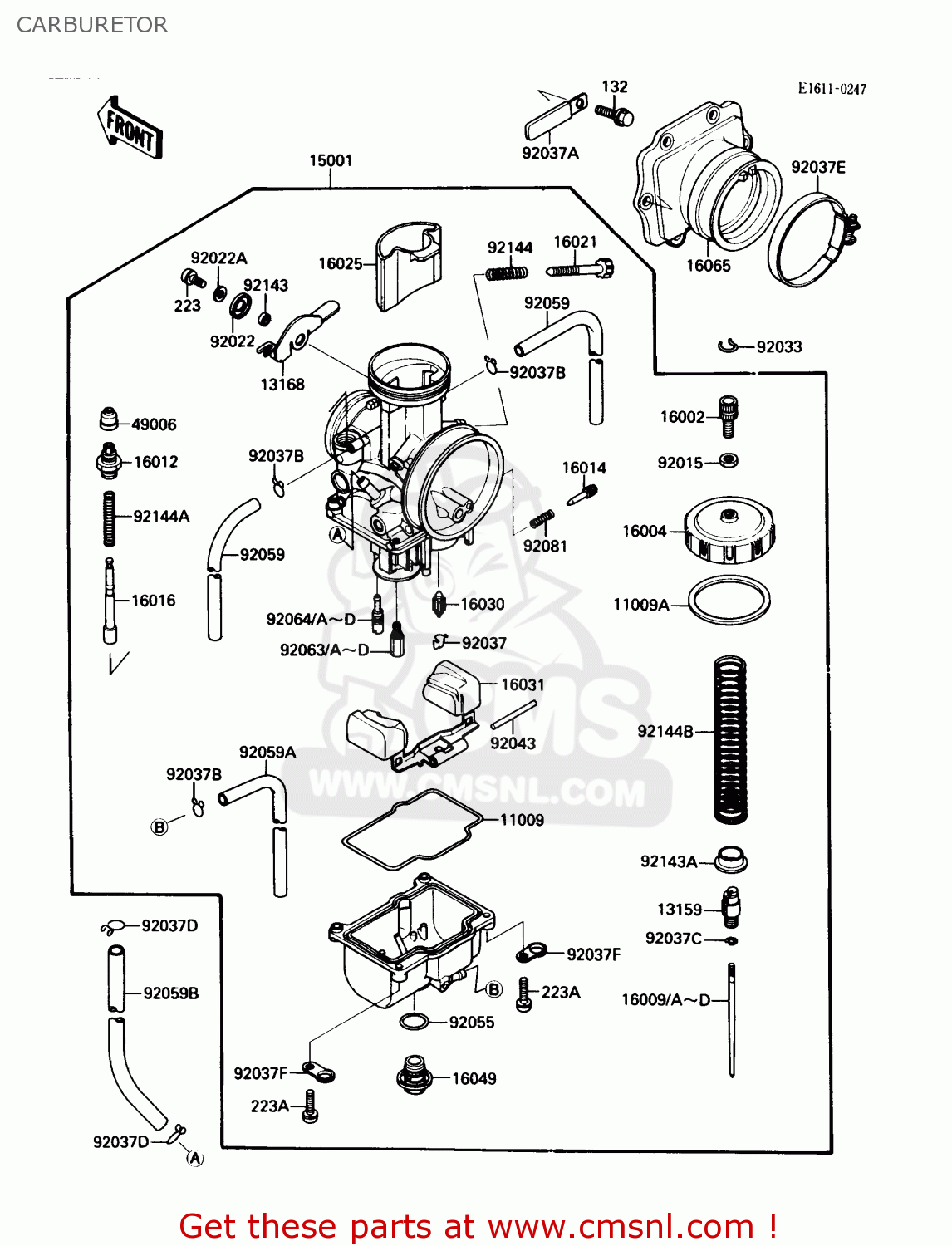

Carburetor diagram KDX200-C3 1988 USA CANADA
CARBURETOR KDX200-C3 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
110091717
ref: 11009A
GASKET,CHAMBER CAP (NAS)
€ 8.00
13159
131591060
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
13168
131681388
ref: 13168
LEVER,STARTER
€ 14.50
15001
150011404
ref: 15001
CARBURETOR-ASSY
€ 323.00
16002
160021056
ref: 16002
ADJUSTER-CABLE
€ 16.00
16004
160041061
ref: 16004
CAP-CHAMBER,MIXING
€ 39.00
16009
160091383
ref: 16009
NEEDLE-JET,R1366E
€ 19.50
16009A
160091384
ref: 16009A
NEEDLE-JET,R1367E
€ 19.50
16009B
160091385
ref: 16009B
NEEDLE-JET,R1368E
€ 19.50
16009C
160091386
ref: 16009C
NEEDLE-JET
€ 14.00
16009D
160091387
ref: 16009D
NEEDLE-JET
€ 17.00
16012
160121061
ref: 16012
CAP-STARTER PLUNGER
€ 9.00
16014
160141059
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161072
ref: 16016
PLUNGER,STARTER
€ 24.50
16021
160211124
ref: 16021
SCREW-THROTTLE STOP
€ 16.00
16025
160251148
ref: 16025
VALVE-THROTTLE,CA6
€ 103.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311067
ref: 16031
FLOAT
€ 43.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651161
ref: 16065
HOLDER-CARBURETOR
€ 43.50
49006
490061233
ref: 49006
BOOT,STARTER PLUNGER
€ 2.50
92015
920151574
ref: 92015
NUT,CABLE ADJUST LOCK
€ 4.50
92022
920221709
ref: 92022
WASHER,8X16X1.1
€ 4.50
92022A
920221933
ref: 92022A
WASHER,4.2X12X1.0
€ 1.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92037A
920371069
ref: 92037A
CLAMP,L=60
€ 1.50
92037B
920371396
ref: 92037B
CLAMP,TUBE
€ 3.50
92037C
920371401
ref: 92037C
CLAMP,JET NEEDLE
€ 2.50
92037D
92037147
ref: 92037D
CLAMP,CHAIN OILER
€ 4.50
92037E
920371843
ref: 92037E
CLAMP
€ 5.50
92037F
920371969
ref: 92037F
CLAMP,HOSE
€ 5.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591896
ref: 92059
TUBE,4X7X420
€ 12.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92059A
920591897
ref: 92059A
TUBE,3.5X6.5X330
€ 7.50
92059B
920593765
ref: 92059B
TUBE,5.8X10.8X220
€ 4.50
92063
920631360
ref: 92063
JET-MAIN,#140
€ 10.00
92063A
920631361
ref: 92063A
JET-MAIN,#142
€ 9.50
92063B
920631362
ref: 92063B
JET-MAIN,#145
€ 9.50
92063C
920631363
ref: 92063C
JET-MAIN,#148
€ 9.50
92063D
920631364
ref: 92063D
JET-MAIN,#150
€ 9.50
92064
920641130
ref: 92064
JET-PILOT,#52
€ 11.00
92064A
920641141
ref: 92064A
JET-PILOT,#42
€ 11.50
92064B
920641142
ref: 92064B
JET-PILOT
€ 11.50
92064C
920641143
ref: 92064C
JET-PILOT,#48
€ 11.50
92064D
920641144
ref: 92064D
JET-PILOT
€ 11.00
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431200
ref: 92143
COLLAR,STARTER LEVER
€ 3.00
92143A
921431201
ref: 92143A
COLLAR,THROTTLE VALVE
€ 15.00
92144
921441257
ref: 92144
SPRING,THROTTLE STOP
€ 4.00
92144A
921441277
ref: 92144A
SPRING,STARTER PLUNGE
€ 3.00
92144B
921441284
ref: 92144B
SPRING,THROTTLE
€ 12.50
