TRANSMISSION
KDX200-C1 1986 USA CANADA

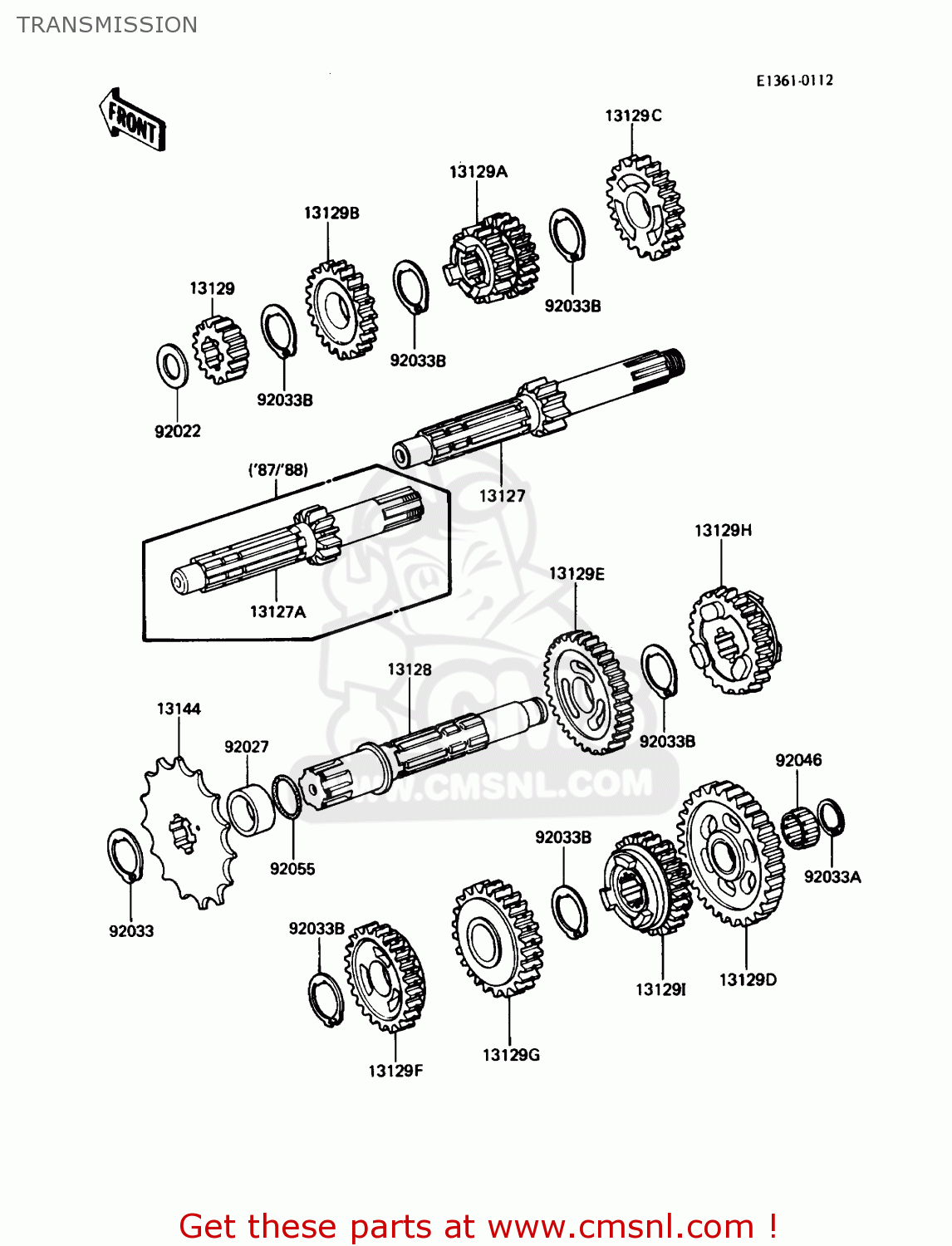

Transmission diagram KDX200-C1 1986 USA CANADA
TRANSMISSION KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271132
ref: 13127
SHAFT-TRANSMISSION IN
€ 121.00
13128
131281129
ref: 13128
SHAFT-TRANSMISSION OU
€ 108.00
13129
131291397
ref: 13129
GEAR,INPUT 2ND,14T
€ 38.00
13129A
131291752
ref: 13129A
GEAR,INPUT 3RD&4TH,15
€ 75.50
13129B
131291753
ref: 13129B
GEAR,INPUT 5TH,24T
€ 82.50
13129C
131291754
ref: 13129C
GEAR,INPUT TOP,23T
€ 68.00
13129D
131291755
ref: 13129D
GEAR,OUTPUT LOW,35T
€ 85.50
13129E
131291756
ref: 13129E
GEAR,OUTPUT 2ND,28T
€ 46.50
13129F
131291757
ref: 13129F
GEAR,OUTPUT 3RD,23T
€ 69.00
13129G
131291758
ref: 13129G
GEAR,OUTPUT 4TH,21T
€ 46.50
13129H
131291759
ref: 13129H
GEAR,OUTPUT 5TH,25T
€ 46.50
13129I
131291760
ref: 13129I
GEAR,OUTPUT 6TH,20T
€ 41.50
13144
131441027
ref: 13144
ENGINE SPROCKET,13T
€ 28.50
92022
92022170
ref: 92022
WASHER-THRUST
€ 6.00
92027
920271669
ref: 92027
COLLAR,25X30X11.5
€ 11.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033032
ref: 92033A
CIRCLIP
€ 3.00
92033B
920331231
ref: 92033B
RING-SNAP,20MM
€ 3.50
92046
920461059
ref: 92046
BEARING-NEEDLE,K17X23
€ 20.00
92055
92055035
ref: 92055
O RING
€ 3.00
