FRONT FORK
KDX200-C1 1986 USA CANADA

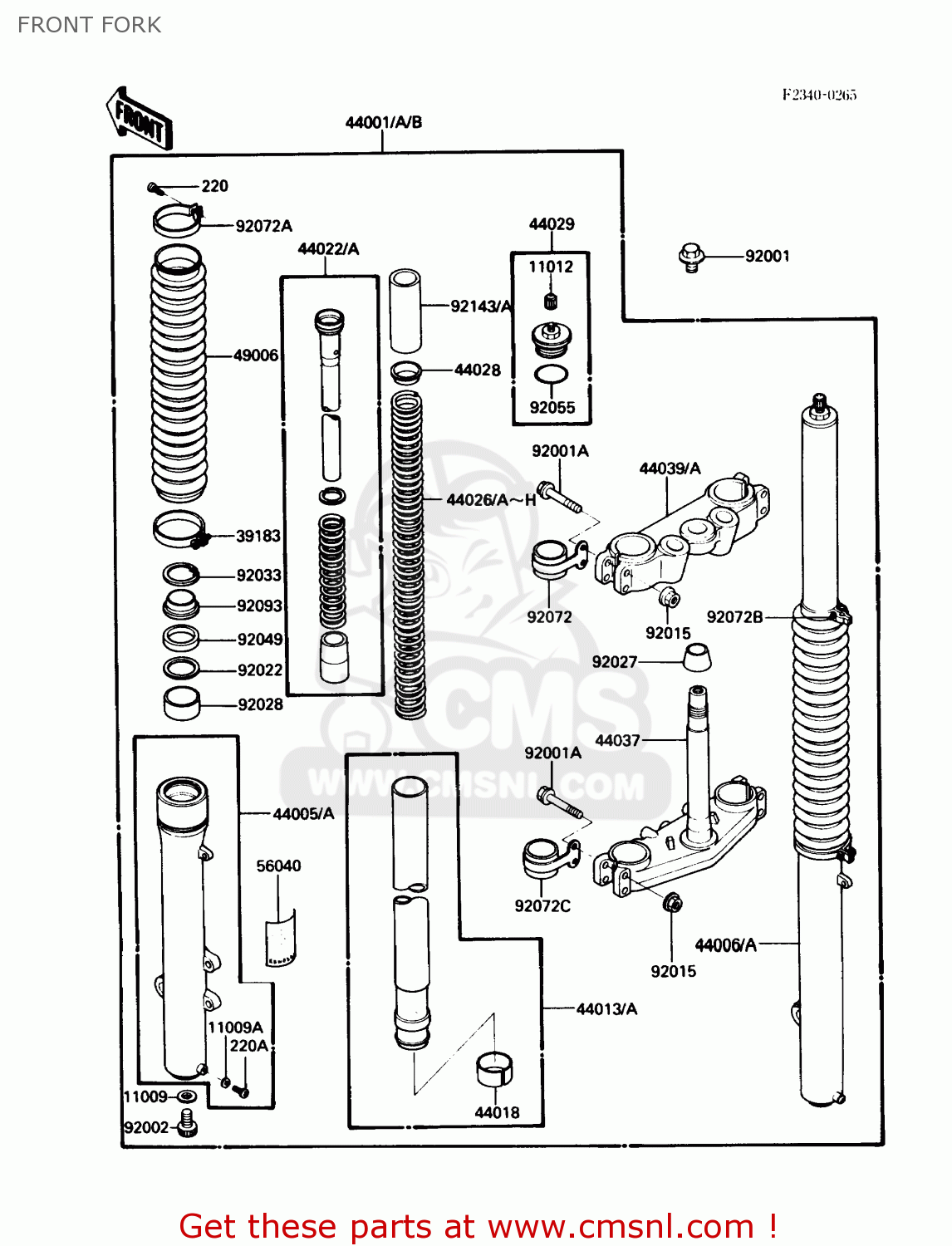

Front fork diagram KDX200-C1 1986 USA CANADA
FRONT FORK KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
€ 3.50
39183
391831051
ref: 39183
BAND-ASSY,BOOT
€ 7.00
44001
440011601
ref: 44001
FORK-FRONT
€ 1,217.50
44005
440051239
ref: 44005
PIPE-LEFT FORK OUTER
€ 301.50
44006
440061238
ref: 44006
PIPE-RIGHT FORK OUTER
€ 243.00
44013
440131238
ref: 44013
PIPE-FORK INNER
€ 178.00
44018
440181005
ref: 44018
BUSHING-FRONT FORK,IN
€ 24.00
44022
440221187
ref: 44022
CYLINDER-FORK
€ 84.00
44026
440261316
ref: 44026
SPRING-FRONT FORK,K=0
€ 31.50
44026A
440261332
ref: 44026A
SPRING-FRONT FORK
€ 31.50
44026B
440261333
ref: 44026B
SPRING-FRONT FORK
€ 39.00
44028
440281010
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44029
440291107
ref: 44029
SEAT-FORK SPRING
€ 38.50
44037
440371193
ref: 44037
HOLDER-FORK UNDER
€ 253.50
44039
440391139
ref: 44039
HOLDER-FORK UPPER
€ 130.50
49006
490061184
ref: 49006
BOOT,FORK
€ 53.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011520
ref: 92001
BOLT
€ 10.50
92001A
920011639
ref: 92001A
BOLT
€ 4.50
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92027
920271421
ref: 92027
COLLAR
€ 41.50
92028
920281145
ref: 92028
BUSHING
€ 19.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491104
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551123
ref: 92055
RING-O
€ 4.00
92072
920721040
ref: 92072
BAND,CABLE
€ 12.50
92072A
920721078
ref: 92072A
BAND,BOOT
€ 7.00
92072B
920721201
ref: 92072B
BAND,BOOT
€ 9.00
92072C
920721205
ref: 92072C
BAND,CABLE
€ 12.50
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
92143
920271971
ref: 92143
COLLAR
€ 4.00
