HANDLEBAR
KDX200-C1 1986 USA CANADA

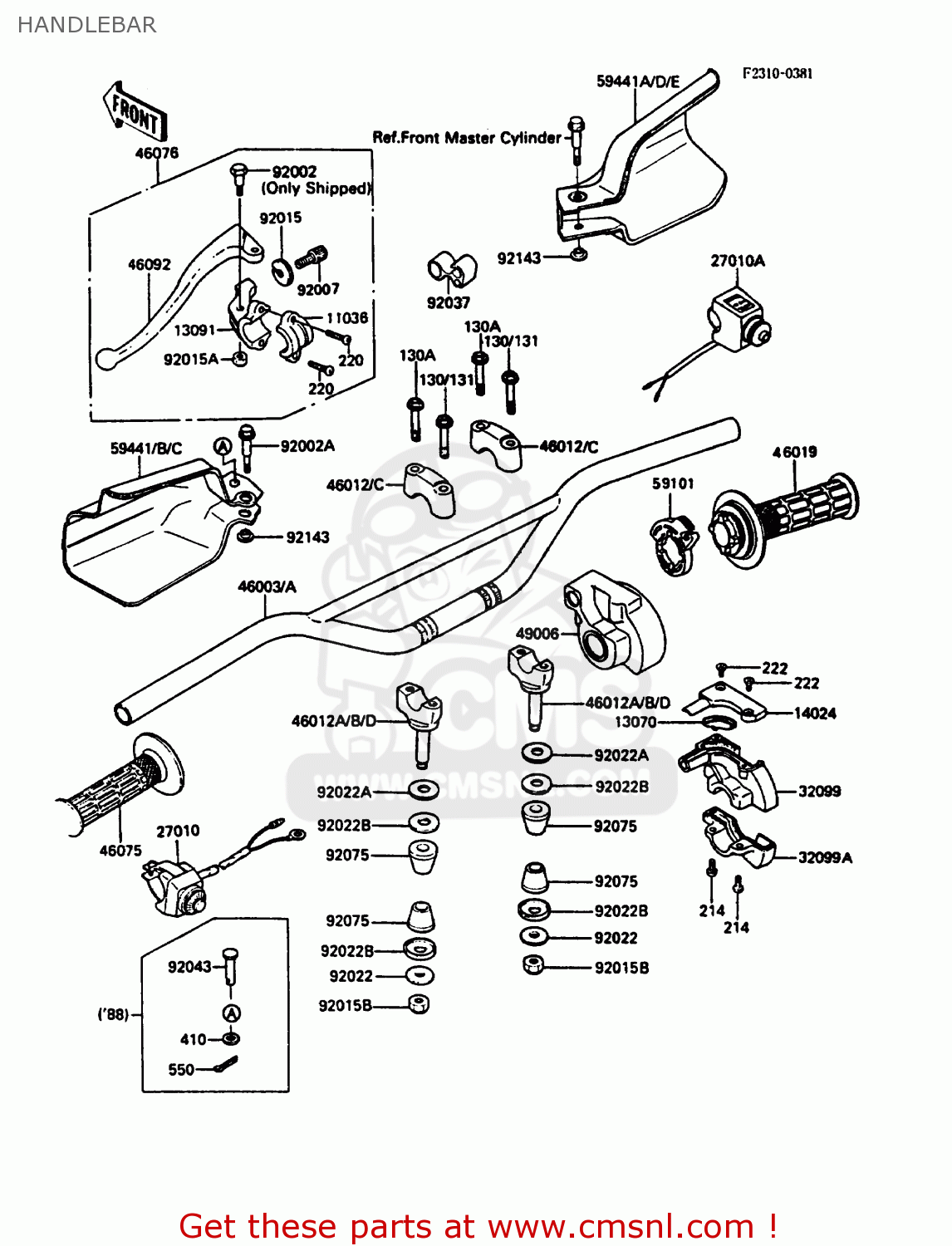

Handlebar diagram KDX200-C1 1986 USA CANADA
HANDLEBAR KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701073
ref: 13070
GUIDE,THROTTLE PEACE
€ 4.00
13091
130911131
ref: 13091
HOLDER,CLUTCH LEVER
€ 31.50
14024
140251646
ref: 14024
COVER,THROTTLE CASE U
€ 6.50
27010
270101161
ref: 27010
SWITCH,ENGINE STOP
€ 38.00
27010A
270101178
ref: 27010A
SWITCH,LIGHTING
€ 41.00
32099
320991036
ref: 32099
CASE,THROTTLE UPP
€ 25.00
32099A
320991044
ref: 32099A
CASE,THROTTLE LWR
€ 13.50
46003
460031224
ref: 46003
HANDLE
€ 45.00
46012
460121119
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46012A
460121138
ref: 46012A
HOLDER-HANDLE
€ 25.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751024
ref: 46075
GRIP,LH
€ 13.50
46076
460761118
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 41.00
46092
460921110
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.50
49006
490061097
ref: 49006
BOOT,THROTTLE CASE
€ 12.00
59101
591011103
ref: 59101
REEL,THROTTLE
€ 8.00
59441
5944110626W
ref: 59441
COVER-HANDLE,LH,L.GRE
€ 22.50
59441A
5944110636W
ref: 59441A
COVER-HANDLE,RH,L.GRE
€ 16.00
92002
920021150
ref: 92002
BOLT,LEVER SET
€ 4.50
92002A
920021718
ref: 92002A
BOLT
€ 5.50
92007
920071143
ref: 92007
BOLT,CABLE ADJUST,8M/
€ 21.00
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
€ 6.00
92015A
92019008
ref: 92015A
NUT-LOCK,6MM
€ 3.00
92015B
92019021
ref: 92015B
NUT,LOCK,10M/M
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221303
ref: 92022A
WASHER,12.4X28X2.3,BL
€ 3.00
92022B
920221737
ref: 92022B
WASHER
€ 3.50
92037
920371629
ref: 92037
CLAMP,BRAKE HOSE
€ 6.00
130A
130G0845
ref: 130A
BOLT,FLANGET,8X45
€ 1.00
131
131G0830
ref: 131
BOLT-FLANGED,8X30
€ 1.00
214
214C0518
ref: 214
SCREW-PAN+-
€ 2.00
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
222
222E0412
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
92075
920751776
ref: 92075
DAMPER
€ 5.00
92143
920271965
ref: 92143
COLLAR
€ 2.50
