REAR SUSPENSION
KDX200-C1 1986 USA CANADA

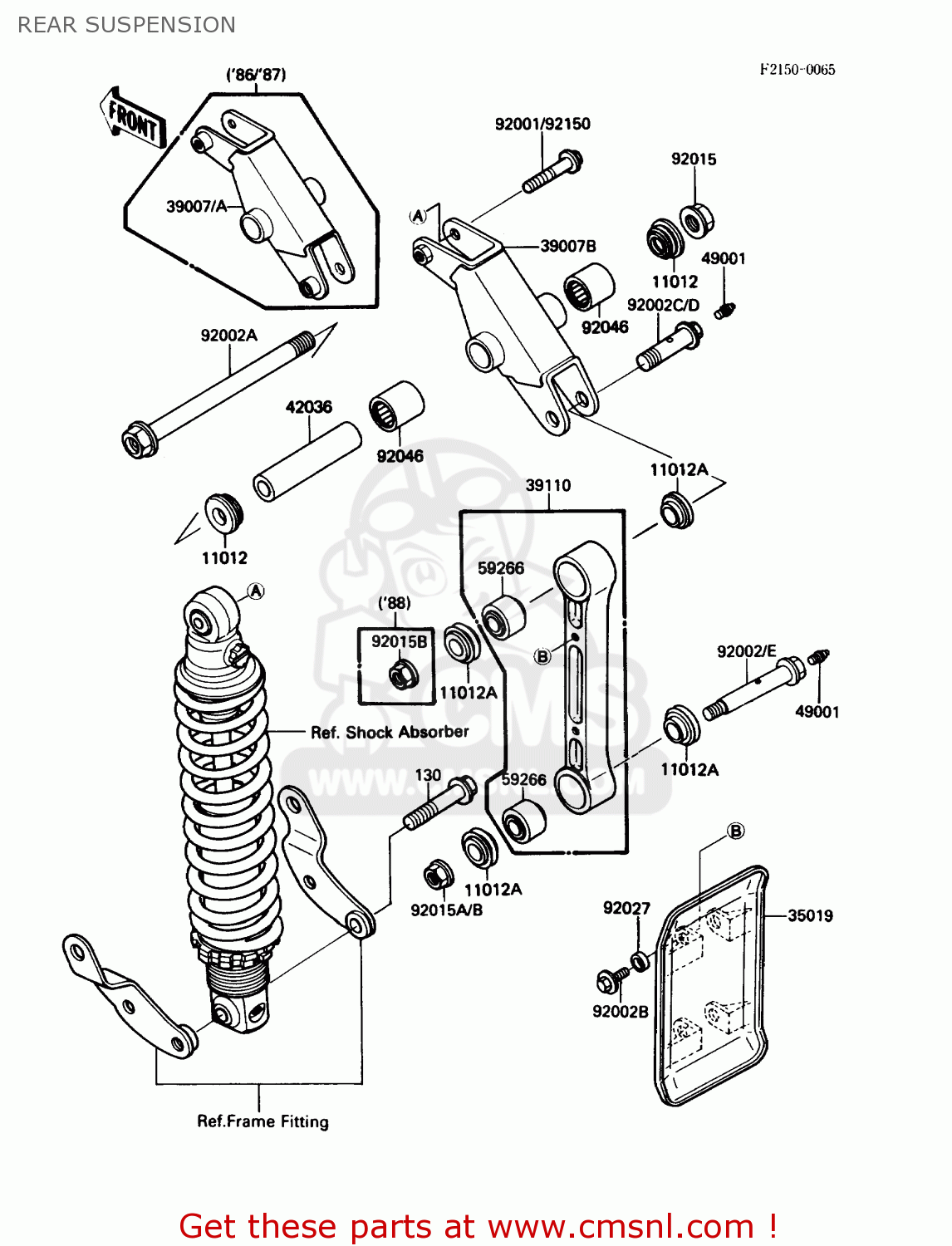

Rear suspension diagram KDX200-C1 1986 USA CANADA
REAR SUSPENSION KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130P1260
ref: 130
BOLT-FLANGED
€ 5.50
11012
110121207
ref: 11012
CAP
€ 12.00
11012A
110121418
ref: 11012A
CAP,ROD
€ 10.50
35019
350191163
ref: 35019
FLAP,ROD
€ 12.50
39007
390071099
ref: 39007
ARM-SUSP,UNI TRAK
€ 121.00
39110
391101069
ref: 39110
ROD-ASSY-TIE
€ 278.00
42036
420361119
ref: 42036
SLEEVE,SUSPENSION ARM
€ 23.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
59266
592661056
ref: 59266
JOINT-BALL,ROD
€ 79.50
92001
920011692
ref: 92001
BOLT,FLANGED,10X50
€ 4.00
92002
920021397
ref: 92002
BOLT,ROD,10X65
€ 19.50
92002A
920021415
ref: 92002A
BOLT,14X132
€ 36.00
92002B
920021460
ref: 92002B
BOLT,6X14
€ 3.00
92002C
920021633
ref: 92002C
BOLT,ROD,14X50
€ 14.00
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92027
920271885
ref: 92027
COLLAR
€ 4.00
92046
920461128
ref: 92046
BEARING-NEEDLE,TA2030
€ 25.00
