METER(S)
KDX200-C1 1986 USA CANADA

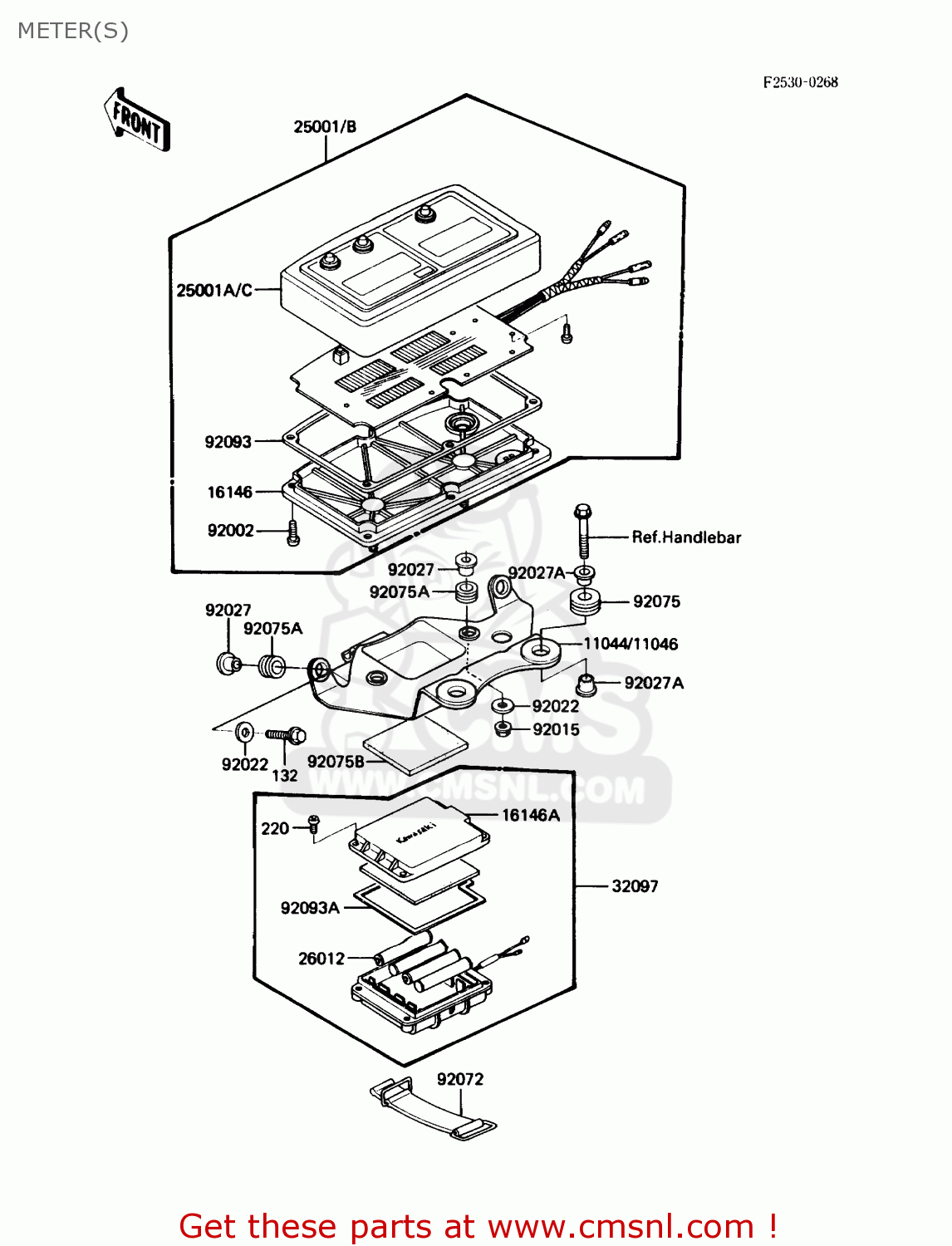

Meter(s) diagram KDX200-C1 1986 USA CANADA
METER(S) KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220C0408
ref: 220
SCREW-PAN-CROS
€ 2.50
11044
110441496
ref: 11044
BRACKET,METER
€ 36.00
16146
161461055
ref: 16146
COVER-ASSY,METER
€ 16.50
16146A
161461056
ref: 16146A
COVER-ASSY,BATTERY CA
€ 9.00
25001
250011576
ref: 25001
US
METER-ASSY,TRIP MILE&
€ 457.50
25001A
250011577
ref: 25001A
US
METER-ASSY
€ 30.00
25001B
250011578
ref: 25001B
CN
METER-ASSY,TRIP(KM)&T
€ 327.50
25001C
250011579
ref: 25001C
CN
METER-ASSY
€ 24.50
26012
ref: 26012
32097
320971070
ref: 32097
CASE-BATTERY
€ 60.00
92002
920021441
ref: 92002
BOLT,4X14
€ 1.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271045
ref: 92027
COLLAR
€ 3.50
92027A
920271585
ref: 92027A
COLLAR,METER BRACKET
€ 6.00
92072
920721176
ref: 92072
BAND,BATTERY CASE
€ 10.50
92075
92075013
ref: 92075
DAMPER
€ 3.00
92075A
920751028
ref: 92075A
DAMPER RUBBER
€ 3.00
92075B
920751668
ref: 92075B
DAMPER,BATTERY CASE
€ 8.00
92093
920931178
ref: 92093
SEAL,METER
€ 6.50
92093A
920931179
ref: 92093A
SEAL,BATTERY CASE
€ 3.50
