GEAR CHANGE MECHANISM
KDX200-C1 1986 USA CANADA

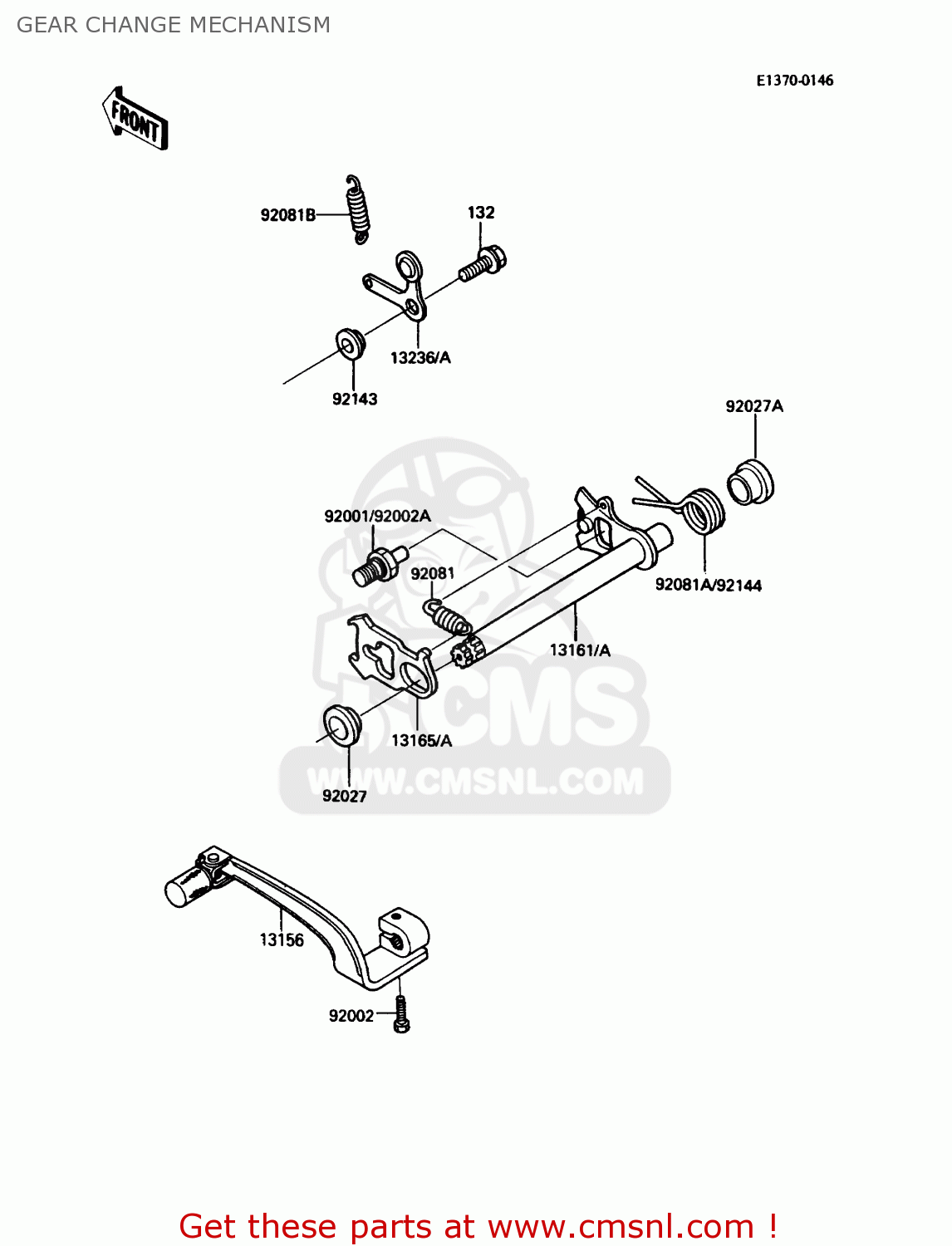

Gear change mechanism diagram KDX200-C1 1986 USA CANADA
GEAR CHANGE MECHANISM KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
13156
131561220
ref: 13156
LEVER-CHANGE,PEDAL
€ 51.50
13161
131611137
ref: 13161
LEVER-COMP-CHANGE SHA
€ 36.00
13165
131651119
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361152
ref: 13236
LEVER-COMP,POSITION
€ 6.50
92001
920011401
ref: 92001
BOLT,RETURN SPRING
€ 3.00
92002
920021339
ref: 92002
BOLT,6X25
€ 2.50
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92027A
920271801
ref: 92027A
COLLAR,13X18X9
€ 5.50
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081A
920811716
ref: 92081A
SPRING,CHANGE SHAFT R
€ 6.50
92081B
92083012
ref: 92081B
SPRING,CHNG DRUM LEV
€ 3.00
92143
921431055
ref: 92143
COLLAR
€ 4.50
