CRANKCASE
KDX200-C1 1986 USA CANADA

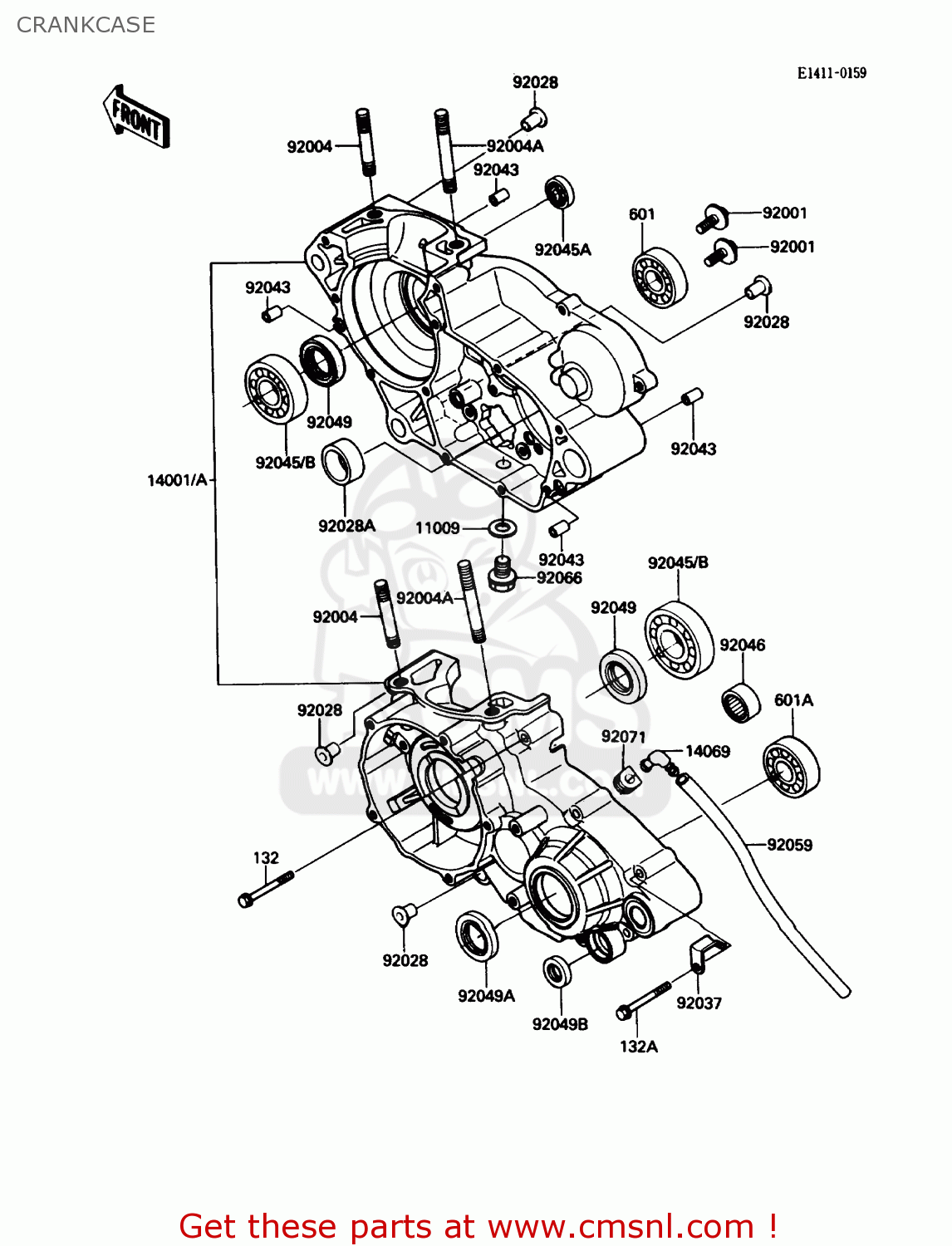

Crankcase diagram KDX200-C1 1986 USA CANADA
CRANKCASE KDX200-C1 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
601A
601B6205
ref: 601A
BEARING-BALL,#6205C3
€ 14.00
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015209
ref: 14001
SET-CRANKCASE
€ 450.50
14069
14069002
ref: 14069
BREATHER
€ 17.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041132
ref: 92004A
STUD
€ 6.00
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028132
ref: 92028A
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451024
ref: 92045
BEARING-BALL,#6305SH2
€ 45.50
92045A
920451048
ref: 92045A
BEARING-BALL,#608
€ 11.50
92046
92046026
ref: 92046
BEARING-NEEDLE,#7E-HK
€ 24.50
92049
920491068
ref: 92049
SEAL-OIL,TBJ25407
€ 12.00
92049A
92050033
ref: 92049A
SEAL-OIL,TB3040
€ 14.00
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92059
920591125
ref: 92059
TUBU L=500M/M
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
