FRONT HUB/BRAKE ('71 F81M)
F81M 1971 USA

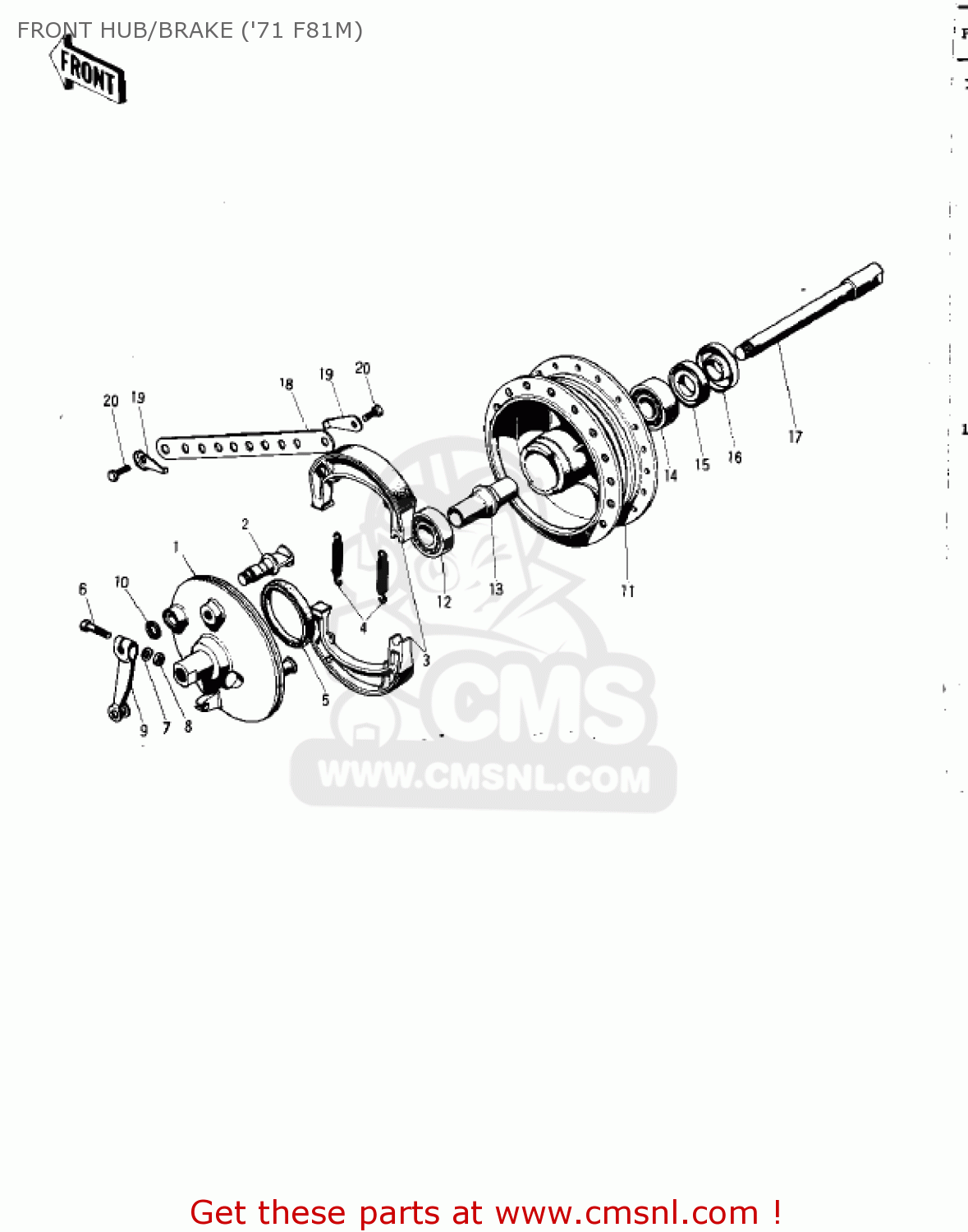

Front hub/brake ('71 f81m) diagram F81M 1971 USA
FRONT HUB/BRAKE ('71 F81M) F81M 1971 USA
×
prices are in EUR
ref
part #
description
quantity
?
41035032
ref: ?
Includes items 1 - 1
FRONT BRAKE PANEL ASSEMBLY
€ 276.00
2
42026021
ref: 2
CAM-BRAKE
€ 19.00
3
42019011
ref: 3
SHOE,BRAKE (MCA)
€ 18.50
4
42020004
ref: 4
SPRING-BRAKE SHOE
€ 5.50
5
92050010
ref: 5
OIL SEAL-F BRK PANEL
€ 13.00
6
112G0640
ref: 6
BOLT-UPSET,6X40
€ 2.50
7
410B0600
ref: 7
WASHER-PLAIN-SMALL,6M
€ 0.50
8
311B0600
ref: 8
NUT,6MM
€ 0.50
9
42029037
ref: 9
LEVER,REAR BRAKE CAM
€ 27.50
10
41051001
ref: 10
DUST SHIELD-BRAKE CAM
€ 2.50
?
4103404880
ref: ?
Includes items 11 -
FRONT BRAKE DRUM ASSEMBLY,BUFF
€ 589.00
?
41034022
ref: ?
Includes items 11 -
DRUM ASSY-FRONT BRAKE
€ 82.50
12
601B6202Z
ref: 12
BEARING-BALL,#6202ZC3
€ 13.00
13
41039004
ref: 13
SPACER-FR HUB BEARING
€ 6.00
14
601B6202
ref: 14
BEARING-BALL,#6202C3
€ 14.50
15
92050008
ref: 15
OIL SEAL-RR BRK DRUM
€ 10.00
16
41069004
ref: 16
COLLAR-FRONT HUB R.H
€ 3.50
17
41068029
ref: 17
AXLE-FRONT
€ 17.00
18
43007022
ref: 18
TORQUE LINK-FRONT BRK
€ 11.50
19
92088012
ref: 19
WASHER-LOCK
€ 4.50
20
92001086
ref: 20
BOLT-HEX HEAD,8X20
€ 1.50
