ENGINE COVERS ('71 F81M)
F81M 1971 USA

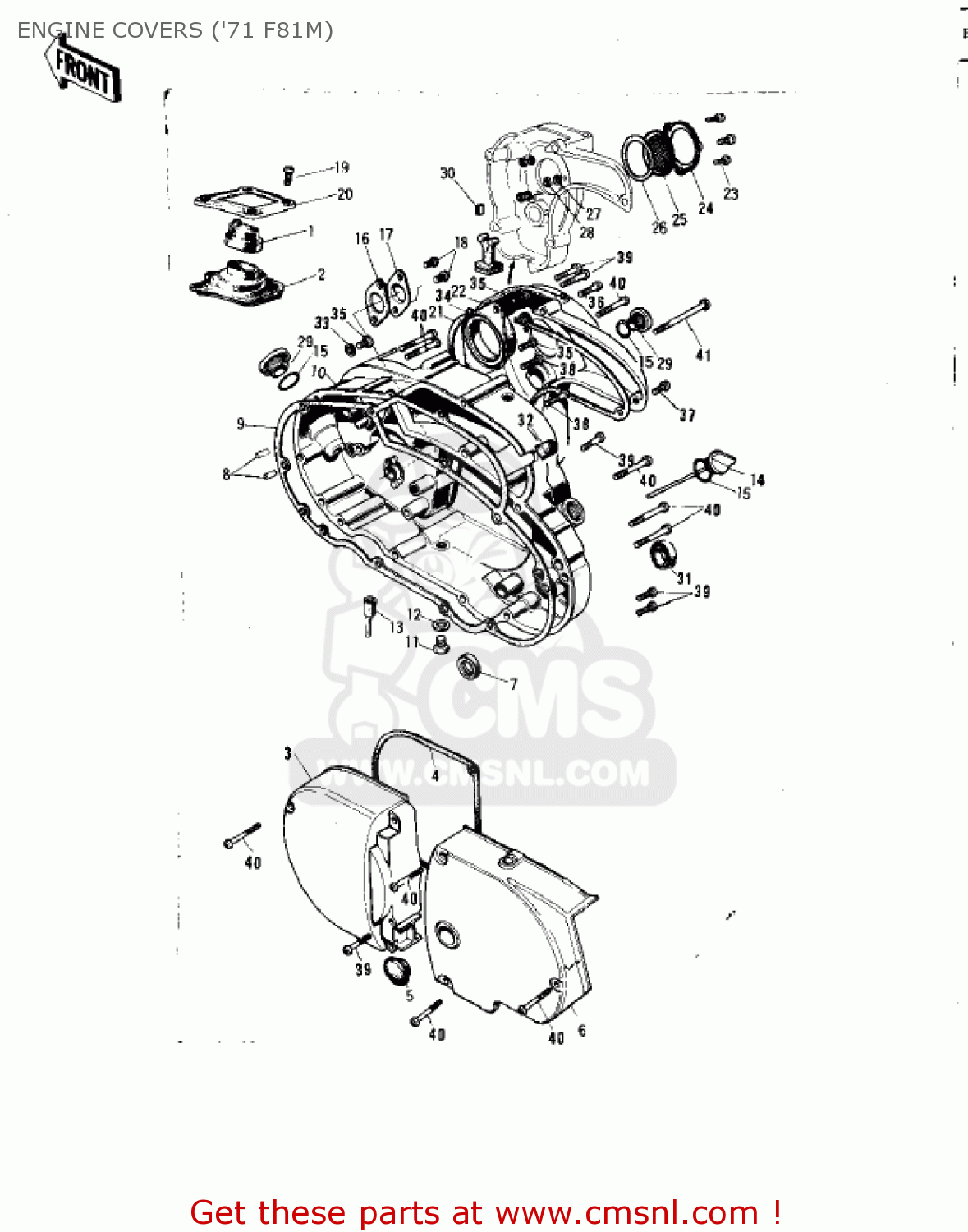

Engine covers ('71 f81m) diagram F81M 1971 USA
ENGINE COVERS ('71 F81M) F81M 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
14038031
ref: 1
CARBURETOR CAP GROMMET
€ 4.50
2
14038029
ref: 2
CARBURETOR CAP
€ 18.50
3
1403103880
ref: 3
ENGINE COVER,LH,BUFF
€ 212.00
4
14045008
ref: 4
GASKET-L.H ENG COVER (MCA)
€ 7.00
5
14040003
ref: 5
CAP-CLUTCH HOLE
€ 2.50
6
14026005E8
ref: 6
CHAIN CASE COVER
€ 175.50
7
92049012
ref: 7
OIL SEAL SB20285
€ 8.50
8
610A0512
ref: 8
ROLLER,5X12
€ 3.00
9
14046020
ref: 9
GASKET-R.H ENG COVER (MCA)
€ 8.00
10
14032065
ref: 10
COVER-R.H ENGINE
€ 69.50
11
92067001
ref: 11
PLUG-OIL DRAIN
€ 3.00
12
92065058
ref: 12
GASKET, 10,5X16X1 (NAS)
€ 2.50
13
16116001
ref: 13
PLUG
€ 6.00
14
16115017
ref: 14
PLUG-OIL FILLER
€ 12.00
15
670B2020
ref: 15
O RING,20MM
€ 1.00
16
110601160
ref: 16
GASKET,OIL PUMP (NAS)
€ 3.00
17
92084004
ref: 17
PLUG,OIL PUMP HOLE
€ 2.00
18
220B0508
ref: 18
SCREW-PAN-CROS,5X8
€ 0.50
19
220B0512
ref: 19
SCREW-PAN-CROS
€ 0.50
20
14065001
ref: 20
HOLDER-CARBURETOR CAP
€ 6.50
21
14048002
ref: 21
GASKET-CARBURETOR COV (MCA)
€ 23.50
22
14030031
ref: 22
CARBURETOR COVER
€ 125.00
23
220B0416
ref: 23
SCREW-PAN-CROS
€ 2.00
24
14065003
ref: 24
AIR FILTER HOLDER
€ 13.50
25
14063002
ref: 25
AIR FILTER
€ 46.50
26
92065074
ref: 26
AIR FILTER GASKET
€ 6.50
27
461F0400
ref: 27
WASHER-SPRING,4MM
€ 0.50
28
311B0400
ref: 28
NUT-HEX,4MM
€ 0.50
29
92067006
ref: 29
PLUG-CARBURETOR COVER
€ 12.00
30
14064001
ref: 30
STOPPER-CARBURETOR
€ 1.00
31
92049004
ref: 31
OIL SEAL SB12205
€ 6.00
32
92071047
ref: 32
GROMMET
€ 1.50
33
92022077
ref: 33
WASHER,6.1X12X1
€ 0.50
34
16065005
ref: 34
HOLDER-CARBURETOR
€ 18.00
35
220B0612
ref: 35
SCREW-PAN HEAD,6X12
€ 1.00
36
220B0620
ref: 36
SCREW-PAN HEAD,6X20
€ 2.50
37
220B0625
ref: 37
SCREW-PAN HEAD,6X25
€ 1.50
38
220B0630
ref: 38
SCREW-PAN HEAD,6X30
€ 2.50
39
220B0635
ref: 39
SCREW-PAN HEAD,6X35
€ 1.00
40
220B0655
ref: 40
SCREW-PAN HEAD,6X55
€ 2.50
41
220B0670
ref: 41
SCREW-PAN HEAD,6X70
€ 2.50
