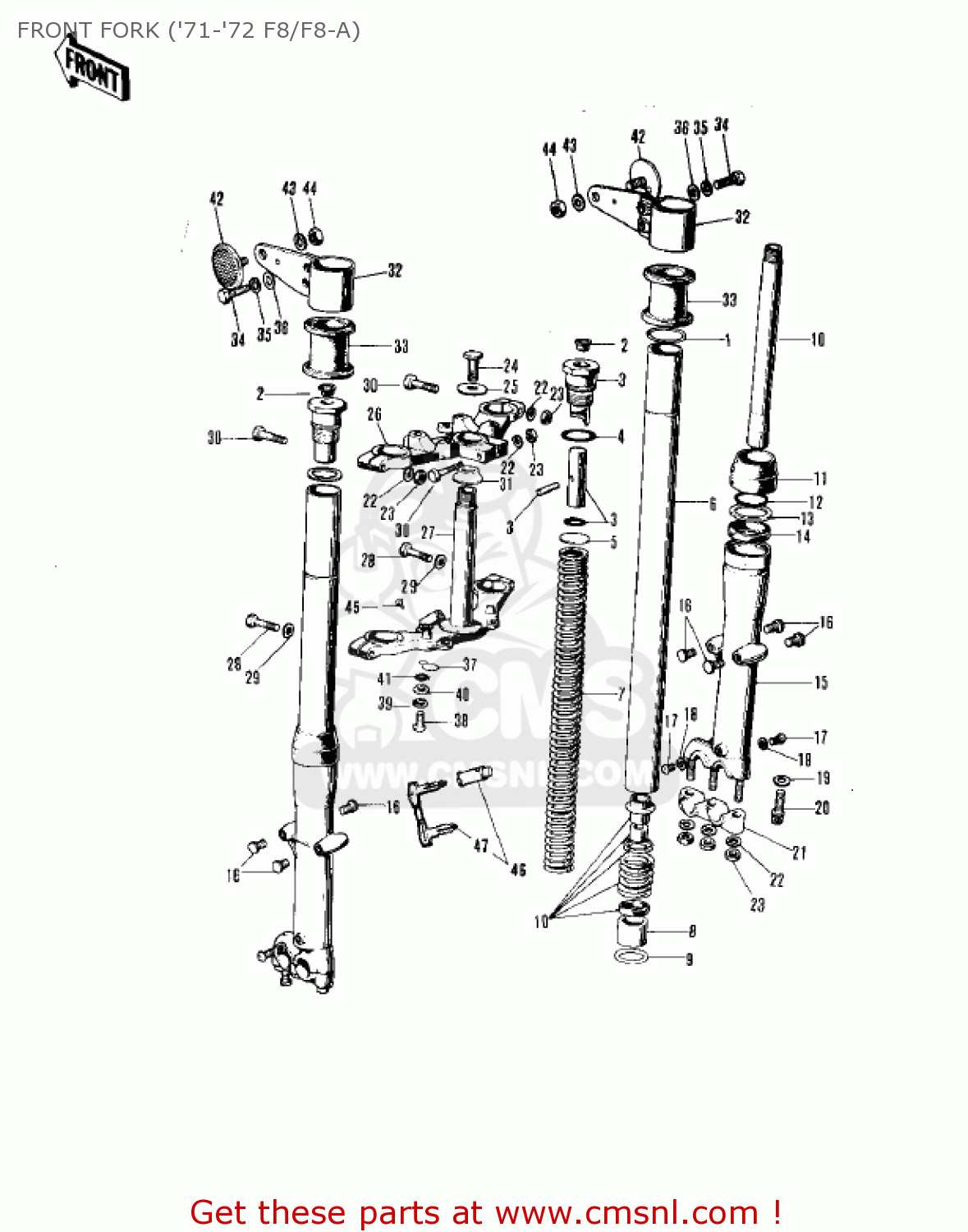

FRONT FORK ('71-'72 F8/F8-A)

ref

part #

description

quantity

?

4400106521
ref: ?
Includes items 1 - 3

FRONT FORK ASSEMBLY,FLAT BLACK

€ 1,181.50

1

44044009
ref: 1

CIRCLIP

€ 3.50

2

14039001
ref: 2

CAP,RUBBER

€ 3.00

3

44041030
ref: 3

BOLT-FORK TOP

€ 37.50

4

44046015
ref: 4

RING-O,FORK TOP

€ 4.50

5

44029015
ref: 5

WASHER-FORK SPRG SEAT

€ 0.50

6

44013022
ref: 6

TUBE-FORK INNER

€ 158.50

7

44026028
ref: 7

SPRING-FORK

€ 18.00

8

44018003
ref: 8

PISTON-FORK

€ 9.00

9

44044008
ref: 9

CIRCLIP-FORK PISTON

€ 7.00

10

44022003
ref: 10

CYLINDER COMP-FORK

€ 87.50

11

44010017
ref: 11

DUST SHIELD-FORK

€ 14.00

12

44044005
ref: 12

CIRCLIP-OIL SEAL FIT

€ 6.50

13

44043023
ref: 13

WASHER-OIL SEAL FIT

€ 2.00

14

44009020
ref: 14

OIL SEAL,FORK

€ 38.00

15

4400503080
ref: 15

TUBE-FORK OUTER,BUFF

€ 143.50

16

44062002
ref: 16

CAP

€ 1.50

17

220B0408
ref: 17

SCREW-PAN-CROS

€ 0.50

18

44045002
ref: 18

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

19

44045030
ref: 19

GASKET,FORK CYLINDER

€ 2.50

20

44041027
ref: 20

BOLT-FORK CYLINDER

€ 2.50

21

44063001
ref: 21

HOLDER-FRONT AXLE

€ 17.50

22

461F0800
ref: 22

WASHER-SPRING,8MM

€ 0.50

23

311B0800
ref: 23

NUT,8MM

€ 0.50

24

44041007
ref: 24

BOLT-STRNG STEM HEAD

€ 11.50

25

44043016
ref: 25

WASHER,FORK UPPER HOL

€ 7.00

26

44039032
ref: 26

HEAD-STEERING STEM

€ 84.00

27

44037032
ref: 27

STEERING STEM

€ 349.50

28

113B1236A
ref: 28

BOLT-HEX HEAD,12X36

€ 3.50

29

461F1200
ref: 29

WASHER-SPRING,12MM

€ 0.50

30

920011578
ref: 30

BOLT,FLANGED,8X40

€ 4.00

31

92047010
ref: 31

CONE-STERNG BERG LOW

€ 10.00

32

23064001
ref: 32
FLAT BLACK

HEADLAMP BRACKET

€ 37.50

33

92075059
ref: 33

DAMPER RUBBER

€ 3.50

34

112G0618
ref: 34

BOLT-UPSET

€ 0.50

35

461F0600
ref: 35

WASHER-SPRING,6MM

€ 0.50

36

410B0600
ref: 36

WASHER-PLAIN-SMALL,6M

€ 0.50

37

92037046
ref: 37

CLAMP,CABLE

€ 3.00

38

112B0614
ref: 38

BOLT-UPSET 6X14

€ 2.50

39

461F0600
ref: 39

WASHER-SPRING,6MM

€ 0.50

40

410B0600
ref: 40

WASHER-PLAIN-SMALL,6M

€ 0.50

41

464H0600
ref: 41

WASHER-LOCK,6MM

€ 0.50

42

28012004
ref: 42

REFLECTOR,REFLEX

€ 2.50

42

28001004
ref: 42

REFLECTOR-REFLEX

€ 4.00

43

461F0500
ref: 43

WASHER-SPRING,5MM

€ 0.50

44

311B0500
ref: 44

NUT-HEX

€ 0.50

45

92099001
ref: 45

SCREW RIVET

€ 2.50

46

270165025
ref: 46

LOCK-ASSY,STEERING

€ 23.00

47

2700803435
ref: 47
REF. GRID F6, #14 FO

KEY SET,#235

€ 18.50

47

2700803436
ref: 47

KEY SET,#236

€ 18.50

47

2700803437
ref: 47

KEY SET,#237

€ 20.50

47

2700803438
ref: 47

KEY SET,#238

€ 37.50

47

2700803439
ref: 47

KEY SET,#239

€ 33.50

47

2700803421
ref: 47

KEY SET,#321

€ 22.00

47

2700803422
ref: 47

KEY SET,#322

€ 37.50

47

2700803423
ref: 47

KEY SET,#323

€ 31.00

47

2700803424
ref: 47

KEY SET,#324

€ 39.50

47

2700803440
ref: 47

KEY SET,#140

€ 31.00

47

2700803441
ref: 47

KEY SET,#141

€ 33.00

47

2700803442
ref: 47

KEY SET,#142

€ 37.50

47

2700803443
ref: 47

KEY SET,#143

€ 33.00
