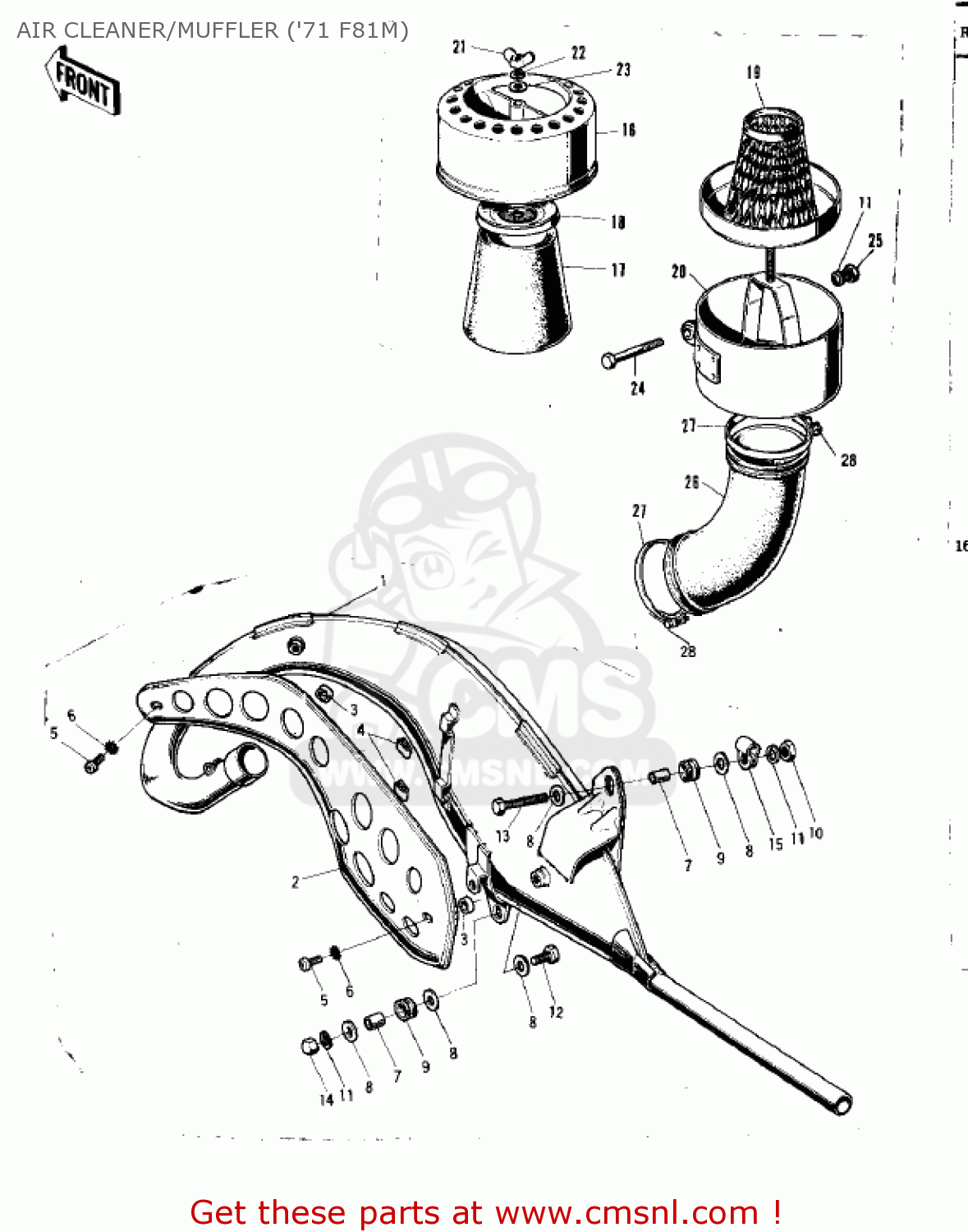

AIR CLEANER/MUFFLER ('71 F81M)

ref

part #

description

quantity

1

18002068
ref: 1

MUFFLER ASSEMBLY

€ 436.00

2

18064004
ref: 2

MUFFLER COVER

€ 72.50

3

18065002
ref: 3

INSULATOR-HEAT

€ 3.00

4

18065007
ref: 4

INSULATOR,HEAT

€ 3.00

5

220E0610
ref: 5

SCREW-PAN HEAD,6X10

€ 2.50

6

463H0600
ref: 6

WASHER-LOCK,6MM

€ 0.50

7

92027102
ref: 7

COLLAR

€ 1.00

8

920221564
ref: 8

WASHER

€ 2.50

9

18063005
ref: 9

DAMPER,MUFFLER

€ 3.00

10

312B0800
ref: 10

NUT,8MM

€ 0.50

11

461F0800
ref: 11

WASHER-SPRING,8MM

€ 0.50

12

114G0828
ref: 12

BOLT-SMALL,8X28

€ 2.50

13

920011577
ref: 13

BOLT,FLANGED,8X35

€ 2.50

14

92020007
ref: 14

NUT,CAP,8MM

€ 3.50

15

32069039
ref: 15

BRACKET,UPPER MUFFLE

€ 4.50

?

11010038
ref: ?
Includes items 16 -

AIR CLEANER

€ 37.00

16

11012014
ref: 16

AIR CLEANER CAP

€ 49.50

17

11013021
ref: 17

ELEMENT-AIR CLNR,MAIN

€ 7.00

18

11013022
ref: 18

ELEMENT-AIR CLNR,TOP

€ 1.50

19

11014002
ref: 19

AIR CLEANER WIRE NET

€ 51.00

20

11011011
ref: 20

AIR CLEANER BODY

€ 61.00

21

92015030
ref: 21

NUT-WING,6MM

€ 1.50

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

411B0600
ref: 23

WASHER-PLAIN,6MM

€ 0.50

24

920011456
ref: 24

BOLT,6X55

€ 3.00

25

311B0600
ref: 25

NUT,6MM

€ 0.50

26

11026002
ref: 26

CONNECTOR

€ 6.50

27

92037129
ref: 27

CLAMP,AIR FILTER,ID=7

€ 8.50

28

220B0630
ref: 28

SCREW-PAN HEAD,6X30

€ 2.50
