FRAME/FRAME FITTINGS ('71 F81M)
F81M 1971 USA

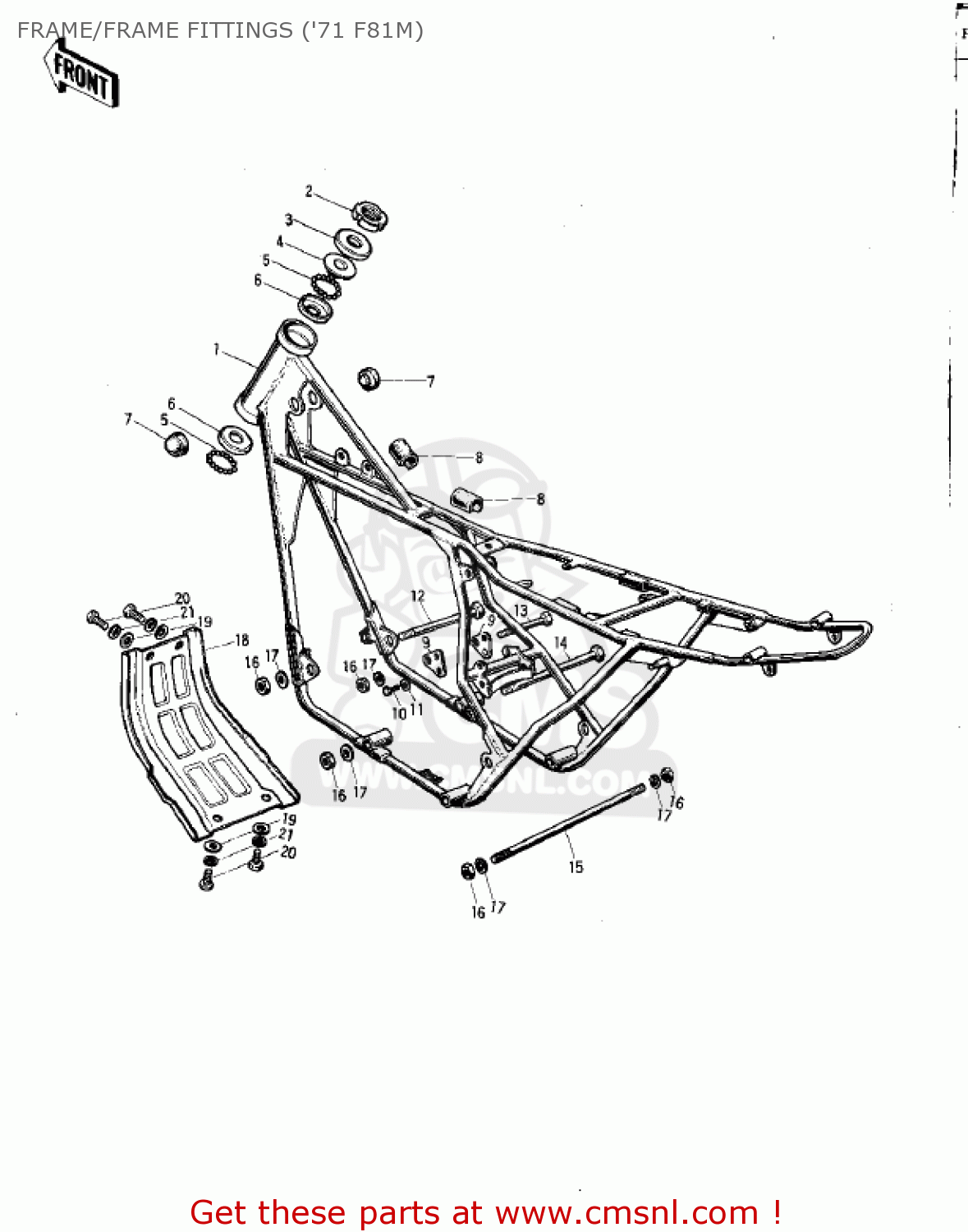

Frame/frame fittings ('71 f81m) diagram F81M 1971 USA
FRAME/FRAME FITTINGS ('71 F81M) F81M 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
32002040
ref: 1
FRAME
€ 932.50
2
92090006
ref: 2
NUT-STEERING STEM LCK
€ 10.50
3
46098005
ref: 3
CAP-STEERING STEM
€ 2.50
4
92047003
ref: 4
CONE-STERNG BERG UPP
€ 9.00
5
600A0800
ref: 5
BALL-STEEL,1/4
€ 0.50
6
92048005
ref: 6
RACE-STEERING BEARING
€ 11.50
7
92075050
ref: 7
DAMPER,FUEL TANK
€ 3.00
8
51067002
ref: 8
MAT-FUEL TANK
€ 12.00
9
32030020
ref: 9
PLATE-ENGINE MOUNT
€ 4.00
10
115G0820
ref: 10
BOLT,8X20
€ 2.00
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
113B12163A
ref: 12
BOLT-HEX HEAD,12X163
€ 7.50
13
113B12151A
ref: 13
BOLT-HEX HEAD,12X151
€ 4.50
14
113B12254A
ref: 14
BOLT-HEX HEAD,12X254
€ 8.50
15
92006002
ref: 15
STUD
€ 8.50
16
314B1200
ref: 16
NUT-HEX-FINE
€ 1.00
17
461F1200
ref: 17
WASHER-SPRING,12MM
€ 0.50
18
55011013
ref: 18
ENGINE GUARD
€ 71.00
19
92022125
ref: 19
WASHER,6.5X20X1.6
€ 1.00
20
112G0612
ref: 20
BOLT-UPSET
€ 2.50
21
461F0600
ref: 21
WASHER-SPRING,6MM
€ 0.50
