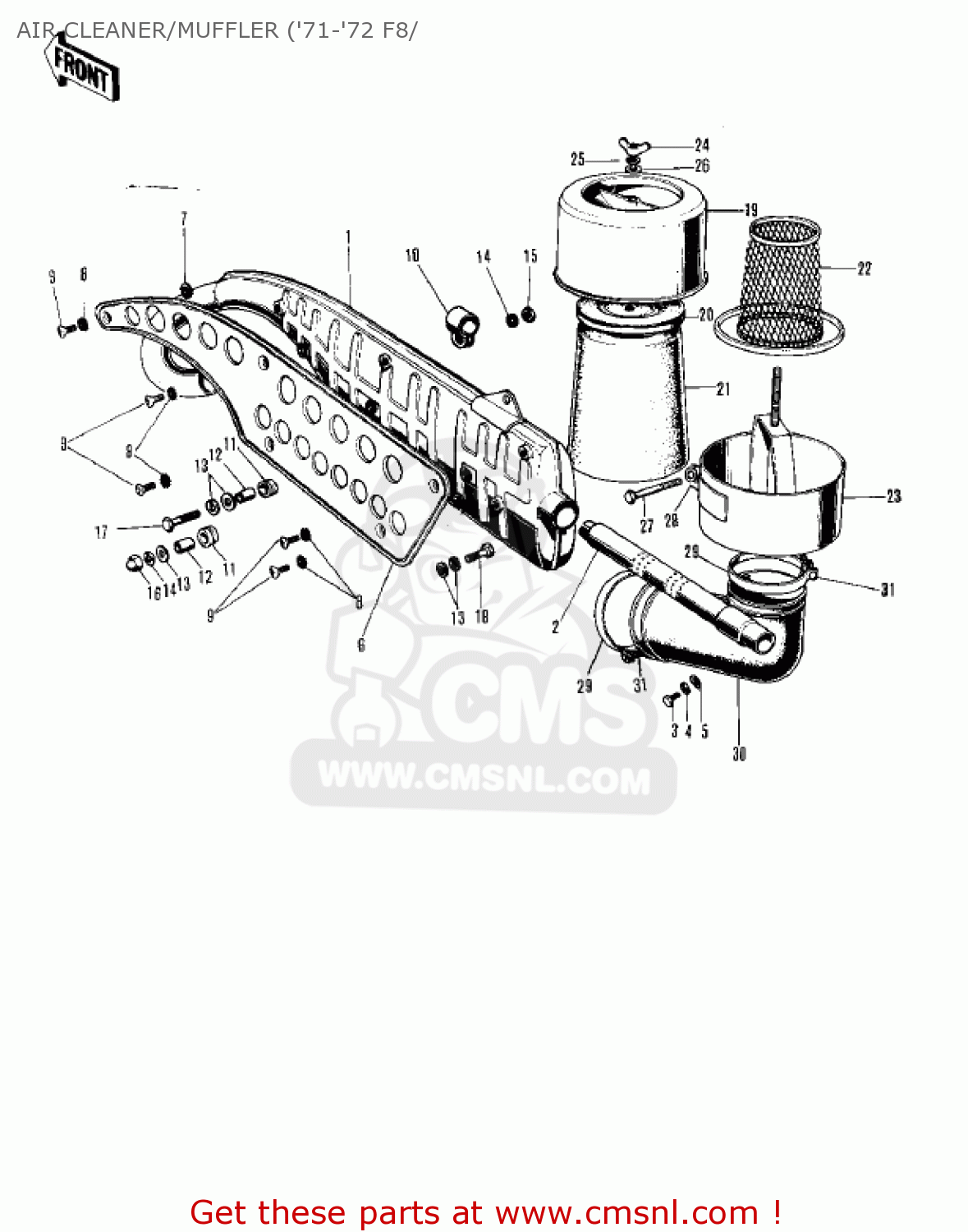

AIR CLEANER/MUFFLER ('71-'72 F8/

ref

part #

description

quantity

?

1800110721
ref: ?
Includes items 1 - 5

MUFFLER ASSY,F.BLACK

€ 155.50

2

18033040
ref: 2

BAFFLE TUBE

€ 166.00

3

112G0610
ref: 3

BOLT,6X10

€ 0.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

411B0600
ref: 5

WASHER-PLAIN,6MM

€ 0.50

6

1806400321
ref: 6

MUFFLER COVER,FLAT BLACK

€ 86.00

7

18065002
ref: 7

INSULATOR-HEAT

€ 3.00

8

463H0600
ref: 8

WASHER-LOCK,6MM

€ 0.50

9

220E0610
ref: 9

SCREW-PAN HEAD,6X10

€ 2.50

10

32069039
ref: 10

BRACKET,UPPER MUFFLE

€ 4.50

11

18063005
ref: 11

DAMPER,MUFFLER

€ 3.00

12

92027102
ref: 12

COLLAR

€ 1.00

13

920221564
ref: 13

WASHER

€ 2.50

14

461F0800
ref: 14

WASHER-SPRING,8MM

€ 0.50

15

312B0800
ref: 15

NUT,8MM

€ 0.50

16

92020007
ref: 16

NUT,CAP,8MM

€ 3.50

17

920011577
ref: 17

BOLT,FLANGED,8X35

€ 2.50

18

114G0828
ref: 18

BOLT-SMALL,8X28

€ 2.50

?

11010042
ref: ?
Includes items 19 -

AIR CLEANER ASSEMBLY

€ 179.50

19

11012016
ref: 19

AIR CLEANER CAP

€ 61.00

20

11013024
ref: 20

ELEMENT-AIR CLNR,TOP

€ 2.00

21

11013023
ref: 21

ELEMENT-AIR CLNR,MAIN

€ 3.50

22

11014003
ref: 22

AIR CLEANER WIRE NET

€ 64.50

23

11011011
ref: 23

AIR CLEANER BODY

€ 61.00

24

92015030
ref: 24

NUT-WING,6MM

€ 1.50

25

461F0600
ref: 25

WASHER-SPRING,6MM

€ 0.50

26

411B0600
ref: 26

WASHER-PLAIN,6MM

€ 0.50

27

920011456
ref: 27

BOLT,6X55

€ 3.00

28

461F0600
ref: 28

WASHER-SPRING,6MM

€ 0.50

29

92037129
ref: 29

CLAMP,AIR FILTER,ID=7

€ 8.50

30

11026002
ref: 30

CONNECTOR

€ 6.50

31

220B0630
ref: 31

SCREW-PAN HEAD,6X30

€ 2.50
