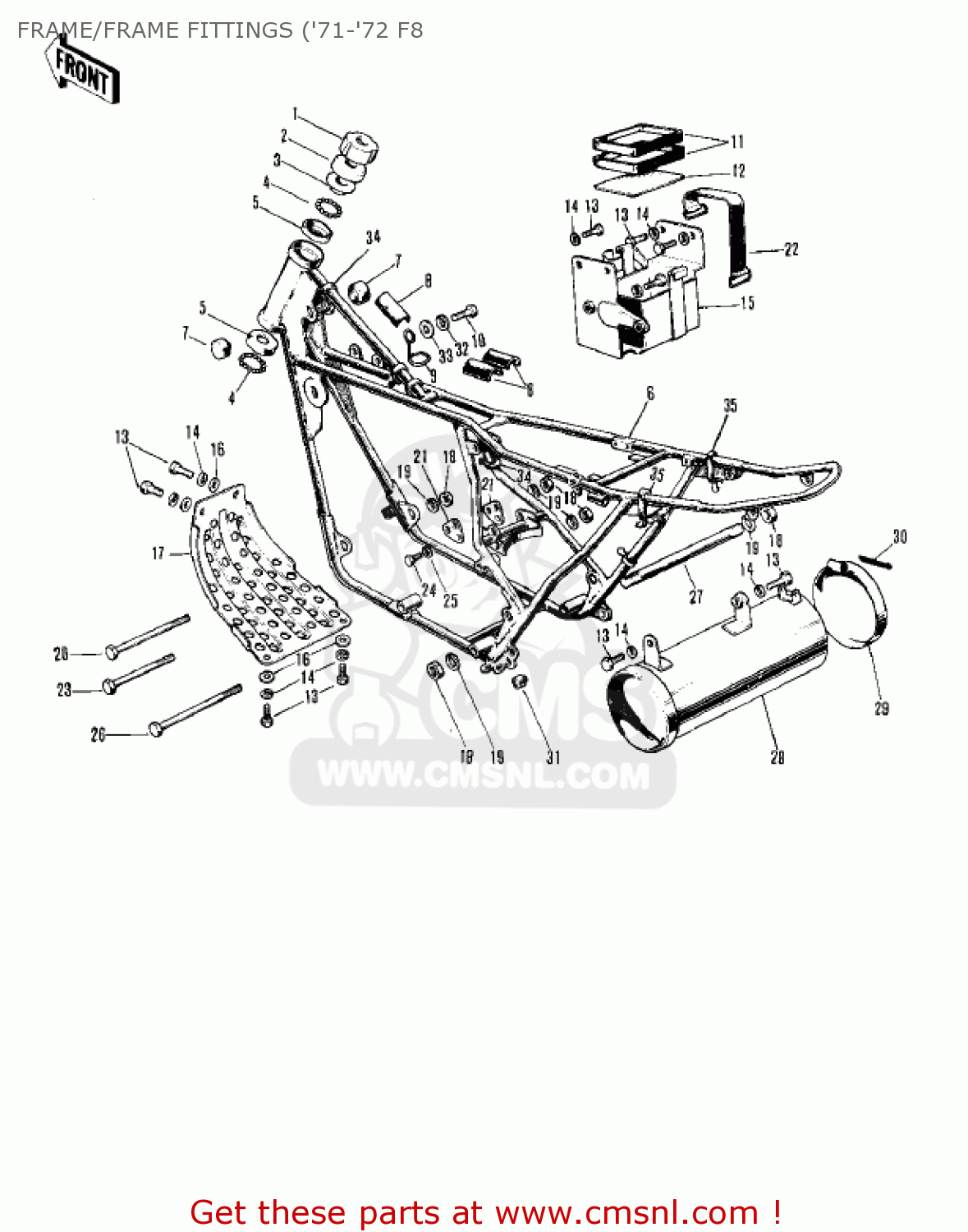

FRAME/FRAME FITTINGS ('71-'72 F8

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098005
ref: 2

CAP-STEERING STEM

€ 2.50

3

92047003
ref: 3

CONE-STERNG BERG UPP

€ 9.00

4

600A0800
ref: 4

BALL-STEEL,1/4

€ 0.50

5

92048005
ref: 5

RACE-STEERING BEARING

€ 11.50

6

32002032
ref: 6

FRAME

€ 1,063.50

6

32002048
ref: 6
E/NO 11287~

FRAME

€ 327.00

7

92075050
ref: 7

DAMPER,FUEL TANK

€ 3.00

8

51067002
ref: 8

MAT-FUEL TANK

€ 12.00

9

92037108
ref: 9

CLAMP

€ 6.00

10

112G0610
ref: 10

BOLT,6X10

€ 0.50

11

32103018
ref: 11

MAT-BATTERY

€ 2.00

12

32103017
ref: 12

MAT-BATTERY

€ 1.50

13

112G0612
ref: 13

BOLT-UPSET

€ 2.50

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

32097018
ref: 15

CASE-BATTERY

€ 24.50

16

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

17

55011011
ref: 17

GUARD-ENGINE

€ 18.50

18

314B1200
ref: 18

NUT-HEX-FINE

€ 1.00

19

461F1200
ref: 19

WASHER-SPRING,12MM

€ 0.50

20

113B12163A
ref: 20

BOLT-HEX HEAD,12X163

€ 7.50

21

32030020
ref: 21

PLATE-ENGINE MOUNT

€ 4.00

22

92072012
ref: 22

BAND-TOOL

€ 4.50

23

113B12151A
ref: 23

BOLT-HEX HEAD,12X151

€ 4.50

24

115G0820
ref: 24

BOLT,8X20

€ 2.00

25

461F0800
ref: 25

WASHER-SPRING,8MM

€ 0.50

26

113B12254A
ref: 26

BOLT-HEX HEAD,12X254

€ 8.50

27

92006002
ref: 27

STUD

€ 8.50

28

32098012
ref: 28
L=200 M/M

TOOL BOX

€ 69.50

28

32098014
ref: 28
L=187 M/M

TOOL BOX

€ 69.50

29

32099005
ref: 29

CAP-TOOL CASE

€ 6.00

30

550D2030
ref: 30

PIN COTTER 2.0X30

€ 1.00

31

92074005
ref: 31

PLUG,8X2

€ 2.50

32

461F0600
ref: 32

WASHER-SPRING,6MM

€ 0.50

33

410B0600
ref: 33

WASHER-PLAIN-SMALL,6M

€ 0.50

34

92072013
ref: 34

BAND-RUBBER

€ 2.00

35

92072018
ref: 35

BAND-RUBBER

€ 1.50

FRAME/FRAME FITTINGS ('71-'72 F8

all assemblies
