TAILLIGHT(S)

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

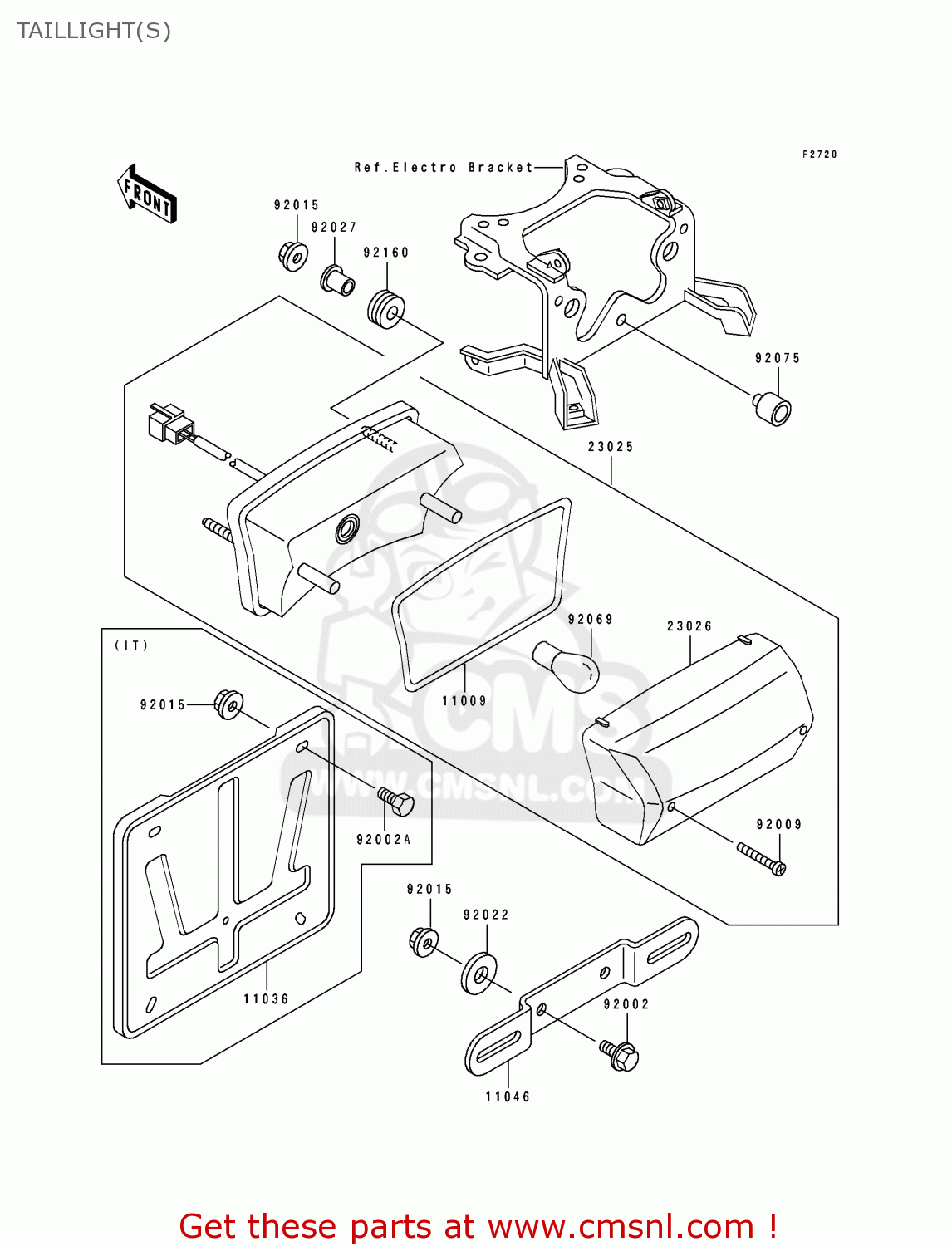

Taillight(s) diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

11009

110091889
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 7.00

11046

110461109
ref: 11046

BRACKET,LICENSE PLATE

€ 13.00

23025

230251209
ref: 23025

LAMP-TAIL

€ 128.00

23026

230261120
ref: 23026

LENS,TAIL LAMP

€ 43.00

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92009

920091506
ref: 92009

SCREW,TAPPING,4X30

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

92075035
ref: 92075

DAMPER

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
