FRAME FITTINGS

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

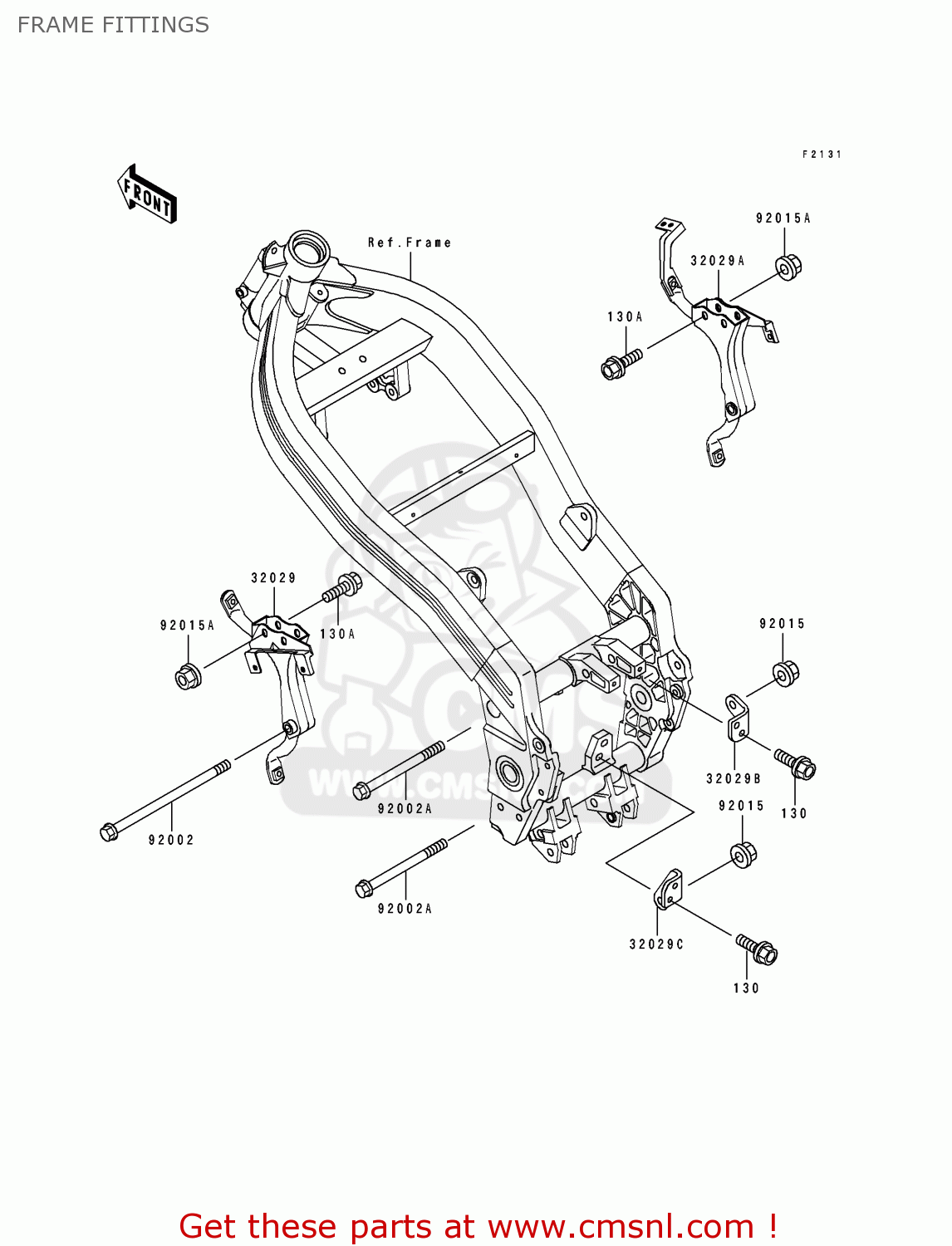

Frame fittings diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

130A

130J0840
ref: 130A

BOLT-FLANGED,8X40

€ 3.00

32029

320291542
ref: 32029

BRACKET-ENGINE,HEAD,L

€ 95.00

32029A

320291543
ref: 32029A

BRACKET-ENGINE,HEAD,R

€ 95.00

32029B

320291718
ref: 32029B

BRACKET-ENGINE,RR,UPP

€ 13.00

32029C

320291719
ref: 32029C

BRACKET-ENGINE,RR,LWR

€ 13.00

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92002A

920021795
ref: 92002A

BOLT

€ 8.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00
