COWLING LOWERS(EX250-H3/H4)

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

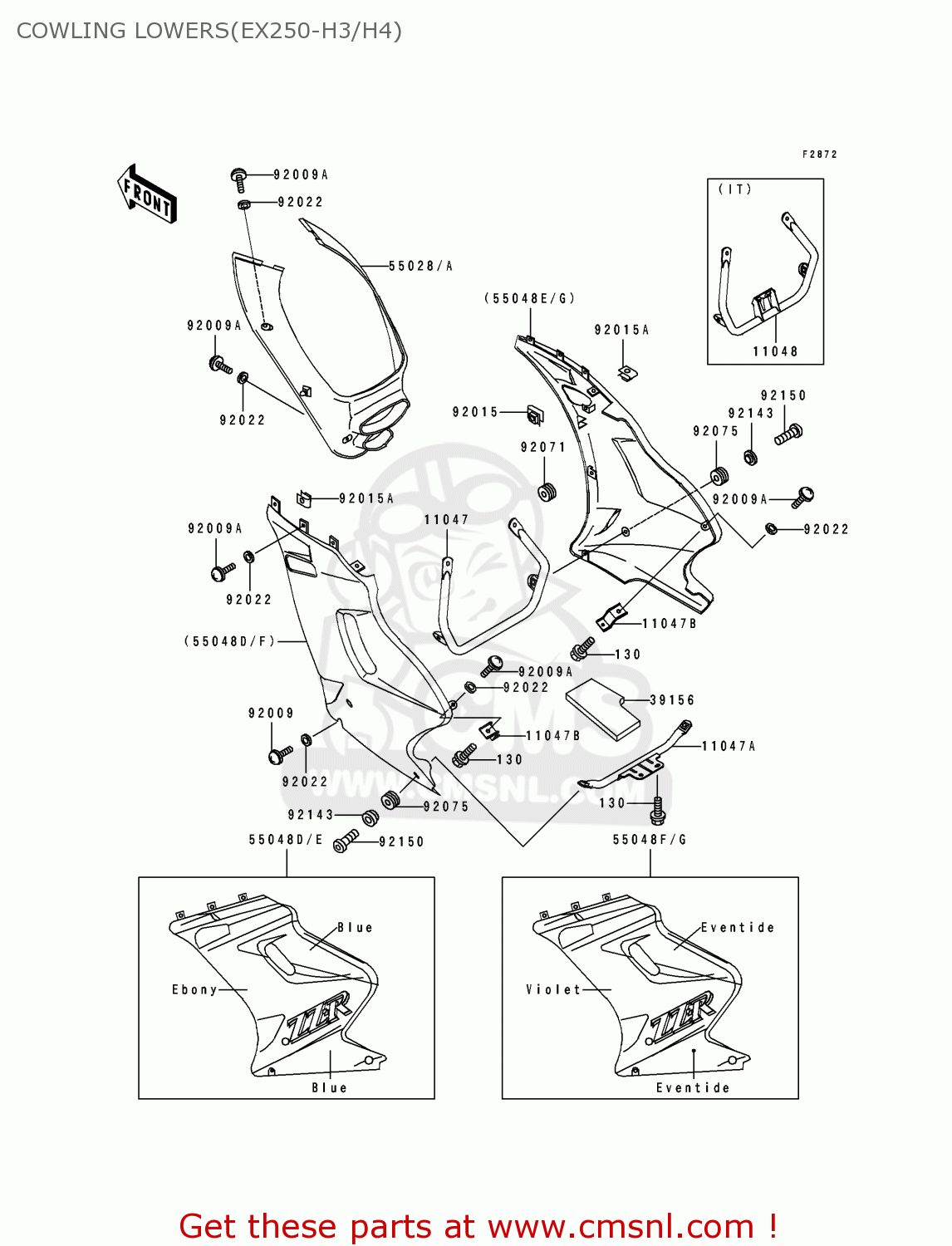

Cowling lowers(ex250-h3/h4) diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

COWLING LOWERS(EX250-H3/H4) EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

COWLING LOWERS(EX250-H3/H4) EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

11047

110471036
ref: 11047

BRACKET,LWR COWLING,F

€ 25.00

11047A

110471037
ref: 11047A

BRACKET,LWR COWLING,R

€ 29.00

11047B

110471038
ref: 11047B

BRACKET,LWR COWLING

€ 6.50

39156

391561222
ref: 39156

PAD,LWR COWLING,LH

€ 5.50

55028

550281262H8
ref: 55028
AREUGRST

COWLING,FR,EBONY

€ 141.00

55028A

550281262JW
ref: 55028A

COWLING,FR,M.VIOLET R

€ 141.00

55049D

550495012KA
ref: 55049D

COWLING.,LWR,LH,VIOLE

€ 432.50

55049E

550495013KA
ref: 55049E

COWLING.,LWR,RH,VIOLE

€ 455.50

55049F

550495049HD
ref: 55049F
AREUGRST

COWLING.,LWR,LH,EBONY

€ 419.00

55049G

550495050HD
ref: 55049G
AREUGRST

COWLING.,LWR,RH,EBONY

€ 406.50

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

92009

920091659
ref: 92009

SCREW

€ 2.50

92009A

920091660
ref: 92009A

SCREW

€ 3.00

92015

920151573
ref: 92015

NUT,5MM

€ 4.50

92015A

920151798
ref: 92015A

NUT

€ 4.50

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

92143

921431226
ref: 92143

COLLAR,BLACK

€ 7.50

92150

921501553
ref: 92150

BOLT,SOCKET,6X18

€ 4.00
