FRONT MASTER CYLINDER

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

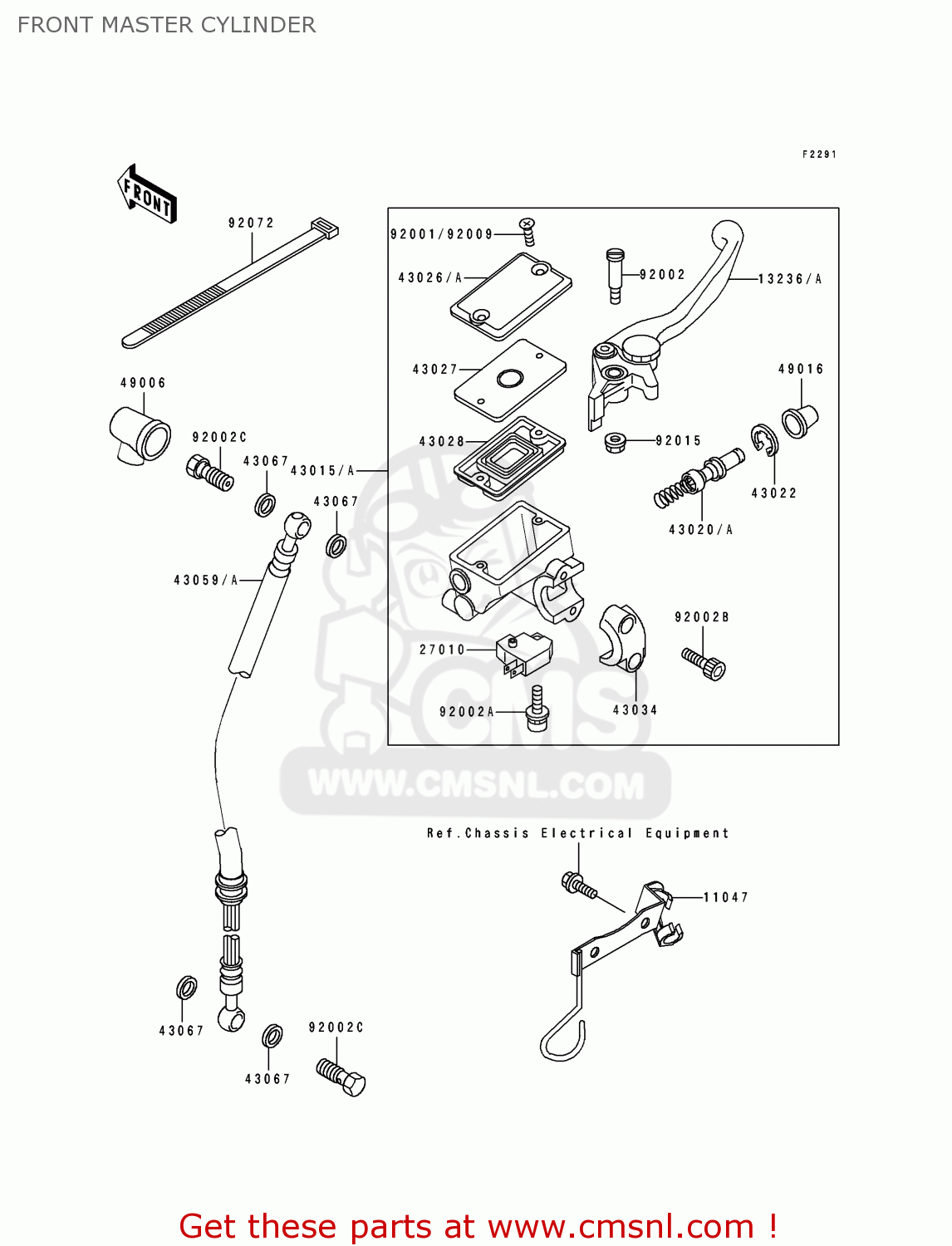

Front master cylinder diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

FRONT MASTER CYLINDER EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

FRONT MASTER CYLINDER EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

11047

110471125
ref: 11047

BRACKET,HOSE&CABLE

€ 16.50

13236A

132361221
ref: 13236A

LEVER-COMP,FRONT BRAK

€ 40.50

27010

270101170
ref: 27010

SWITCH,BRAKE

€ 26.00

43015A

430151496
ref: 43015A

CYLINDER-ASSY-MASTER,

€ 397.50

43020A

430201098
ref: 43020A

PISTON-COMP-BRAKE

€ 38.50

43022

430221010
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.00

43026A

430261076
ref: 43026A

CAP-BRAKE

€ 31.00

43027

430271055
ref: 43027

PLATE-DIAPHRAGM

€ 5.50

43028

430281058
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 15.50

43034

430341053
ref: 43034

HOLDER-BRAKE,MASTER C

€ 26.00

43059

430591638
ref: 43059

HOSE-BRAKE,FR

€ 93.00

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

49006

490061040
ref: 49006

BOOT,DUST

€ 7.50

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

92002

920021322
ref: 92002

BOLT,LEVER SET

€ 8.00

92002A

920021323
ref: 92002A

BOLT

€ 2.50

92002B

920021324
ref: 92002B

BOLT,SOCKET,6X20

€ 5.00

92002C

920021888
ref: 92002C

BOLT,OIL,L=23

€ 3.50

92009

920091458
ref: 92009

SCREW,4MM

€ 2.00

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92072

920721197
ref: 92072

BAND

€ 5.00
