SIDE COVERS/CHAIN COVER(EX250-H3/H4)

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

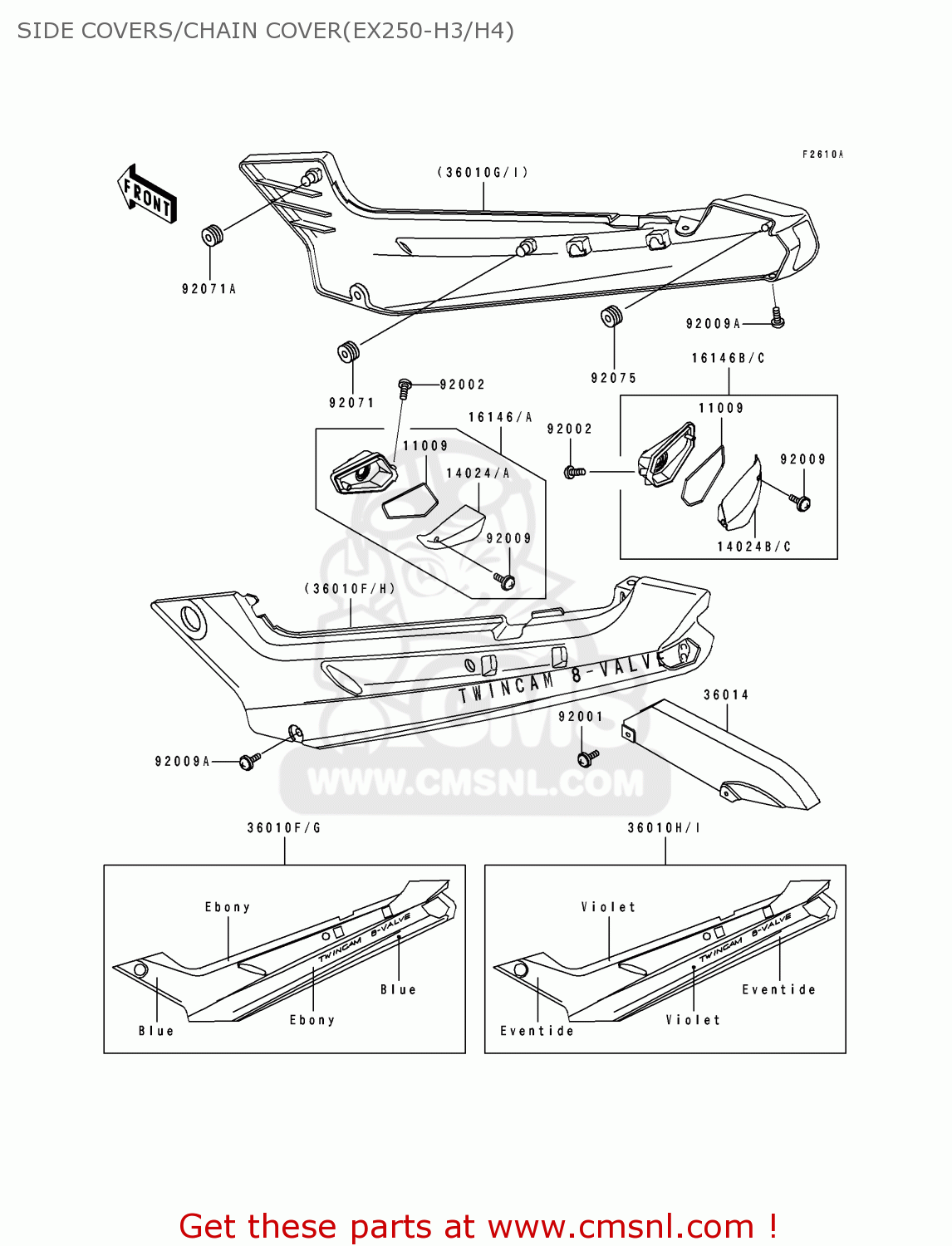

Side covers/chain cover(ex250-h3/h4) diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

SIDE COVERS/CHAIN COVER(EX250-H3/H4) EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST
SIDE COVERS/CHAIN COVER(EX250-H3/H4) EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST
SIDE COVERS/CHAIN COVER(EX250-H3/H4) EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST
prices are in EUR
ref
part #
description
quantity
11009
110091892
ref: 11009
GASKET,LENS (NAS)
110091892
€ 7.50
14024
140241942GW
ref: 14024
AREUGRST
COVER,ACCESSORY,LH,BL
€ 47.50
14024A
140241942JZ
ref: 14024A
COVER,ACCESSORY,LH,EV
€ 49.00
14024B
140241943GW
ref: 14024B
AREUGRST
COVER,ACCESSORY,RH,BL
140241943GW
€ 31.50
14024C
140241943JZ
ref: 14024C
COVER,ACCESSORY,RH,EV
€ 46.50
16146
161461109GW
ref: 16146
AREUGRST
COVER-ASSY,ACCESSORY,
€ 65.50
16146A
161461109JZ
ref: 16146A
COVER-ASSY,ACCESSORY,
€ 64.00
16146B
161461110GW
ref: 16146B
AREUGRST
COVER-ASSY,ACCESSORY,
€ 65.50
16146C
161461110JZ
ref: 16146C
COVER-ASSY,ACCESSORY,
€ 64.00
36010F
360105454GW
ref: 36010F
AREUGRST
COVER-SIDE,LH,M.S.BLU
360105454GW
€ 268.50
36010G
360105455GW
ref: 36010G
AREUGRST
COVER-SIDE,RH,M.S.BLU
€ 251.00
36010H
360105456JZ
ref: 36010H
COVER-SIDE,LH,M.EVENT
€ 282.00
36010I
360105457JZ
ref: 36010I
COVER-SIDE,RH,M.EVENT
€ 251.00
36014
360141147
ref: 36014
CASE-CHAIN
360141147
€ 76.00
92001
920011847
ref: 92001
BOLT,6X14,BLACK
920011847
€ 2.50
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92009
920091297
ref: 92009
SCREW,TAPPING,4X20
920091297
€ 2.50
92009A
920091662
ref: 92009A
SCREW
920091662
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92071A
920711043
ref: 92071A
GROMMET,SIDE COVER
920711043
€ 3.50
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
