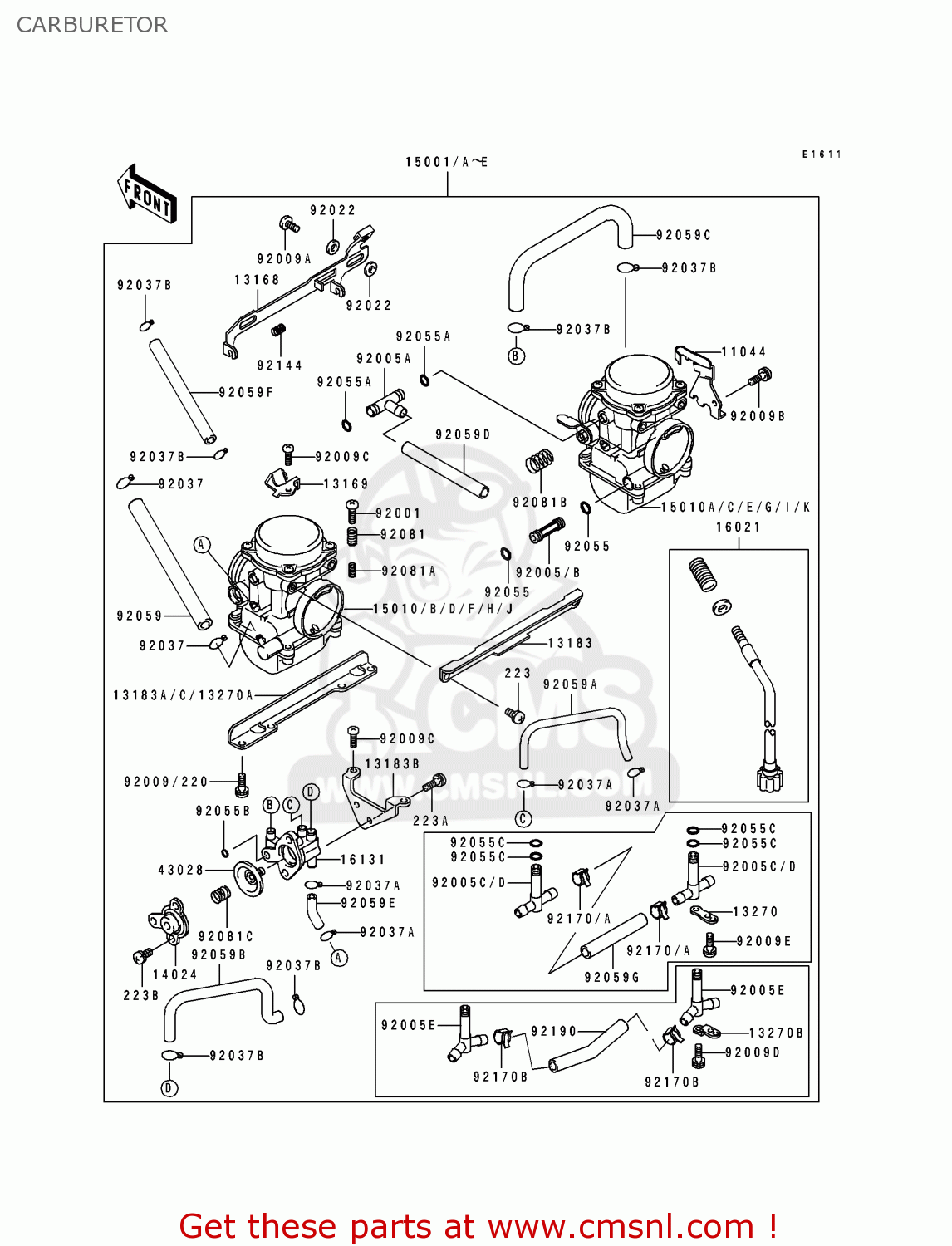

CARBURETOR

ref

part #

description

quantity

11044

110441061
ref: 11044

BRACKET,THROTTLE CABL

€ 44.00

13168

131681330
ref: 13168

LEVER,STARTER

€ 59.50

13169

131691965
ref: 13169

PLATE,STARTER CABLE

€ 26.50

13183

131831029
ref: 13183

PLATE,CARBURETOR STAY

€ 49.00

13183A

131831030
ref: 13183A
AREUGRNRST

PLATE

€ 21.50

13183B

131831031
ref: 13183B

PLATE,AIR CUT VALVE

€ 28.50

13183C

131831477
ref: 13183C
UK

PLATE,CARBURETOR STAY

€ 27.50

14024

140241327
ref: 14024

COVER,AIR CUT VALVE

€ 43.00

15001

150011592
ref: 15001
EUGRNR

CARBURETOR-ASSY

€ 1,329.50

15001A

150011633
ref: 15001A
ST

CARBURETOR-ASSY

€ 968.50

15001B

150011634
ref: 15001B
UK

CARBURETOR-ASSY

€ 950.50

15001C

150011767
ref: 15001C
AR

CARBURETOR-ASSY

€ 684.00

15010

150101035
ref: 15010
EUGRNR

CARBURETOR,LH

€ 946.00

15010A

150101036
ref: 15010A
EUGRNR

CARBURETOR,RH

€ 946.00

15010B

150101037
ref: 15010B
UK

CARBURETOR,LH

€ 635.50

15010C

150101038
ref: 15010C
UK

CARBURETOR,RH

€ 635.50

15010D

150101153
ref: 15010D
ST

CARBURETOR,LH

€ 647.50

15010E

150101154
ref: 15010E
ST

CARBURETOR,RH

€ 647.50

15010F

150101345
ref: 15010F
AR

CARBURETOR,LH

€ 520.50

15010G

150101346
ref: 15010G
AR

CARBURETOR,RH

€ 520.50

16021

160211143
ref: 16021

SCREW-THROTTLE STOP

€ 77.00

16131

161311062
ref: 16131

BODY-VALVE,DIAPHRAGM

€ 51.50

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051109
ref: 92005
EUGRNRST

FITTING,FUEL,I-TYPE

€ 25.00

92005A

920051125
ref: 92005A

FITTING,T-TYPE

€ 18.00

92005B

920051157
ref: 92005B
ARUK

FITTING

€ 25.00

92005C

920051234
ref: 92005C
UK

FITTING

€ 8.00

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091262
ref: 92009A

SCREW

€ 4.00

92009B

920091365
ref: 92009B

SCREW

€ 4.50

92009C

920091446
ref: 92009C

SCREW,4X18

€ 4.00

223

223C0510
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223D0408
ref: 223A

SCREW-PAN-WS-CROS

€ 1.00

223B

223D0410
ref: 223B

SCREW-PAN-WS-CROS

€ 2.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371477
ref: 92037B

CLAMP,TUBE

€ 3.00

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92055B

920551245
ref: 92055B

RING-O

€ 3.50

92055C

920551427
ref: 92055C
UK

RING-O,4.5X1.5

€ 3.00

92059

920591029
ref: 92059

TUBE,FUEL,7.3X12.5X20

€ 18.50

92059A

920591140
ref: 92059A

TUBE,3.5X6.5X180

€ 17.50

92059B

920591201
ref: 92059B

TUBE,5X9X160

€ 14.50

92059C

920591377
ref: 92059C

TUBE,5X9X180

€ 16.50

92059D

920591465
ref: 92059D

TUBE,6.5X9.5X500

€ 20.50

92059E

920591722
ref: 92059E

TUBE

€ 15.50

92059F

920591836
ref: 92059F

TUBE,5X9X220

€ 16.50

92059G

920591978
ref: 92059G
UK

TUBE,4X10X55

€ 3.50

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811621
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811622
ref: 92081B

SPRING,THROTTLE ADJUS

€ 6.50

92081C

920811719
ref: 92081C

SPRING,AIR CUT VALVE

€ 8.50

92144

921441048
ref: 92144

SPRING,STARTER LEVER

€ 7.00

92170A

921701328
ref: 92170A
UK

CLAMP

€ 4.00
