HEADLIGHT(S)

EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

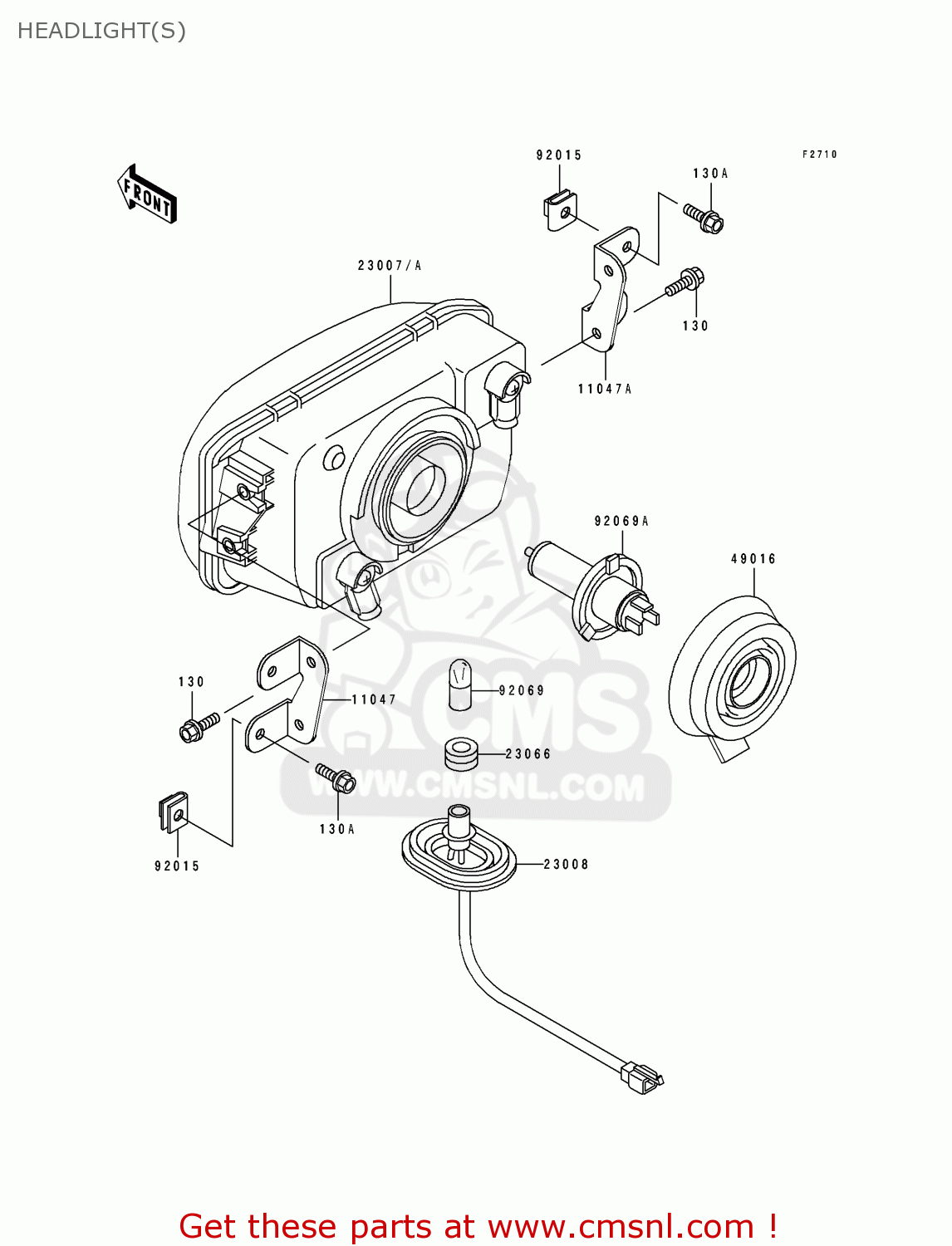

Headlight(s) diagram EX250H3 ZZR250 1992 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

11047

110471024
ref: 11047

BRACKET,HEAD LAMP,LH

€ 7.50

11047A

110471025
ref: 11047A

BRACKET,HEAD LAMP,RH

€ 6.50

23007

230071247
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 349.50

23007A

230071248
ref: 23007A
AREUGRNRST

LENS-COMP,HEAD LAMP

€ 166.00

23008

230081268
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00
