Genuine ER Kawasaki Parts delivered quickly!


REAR HUB

ER250B3 SCORPION 1988 UNITED KINGDOM

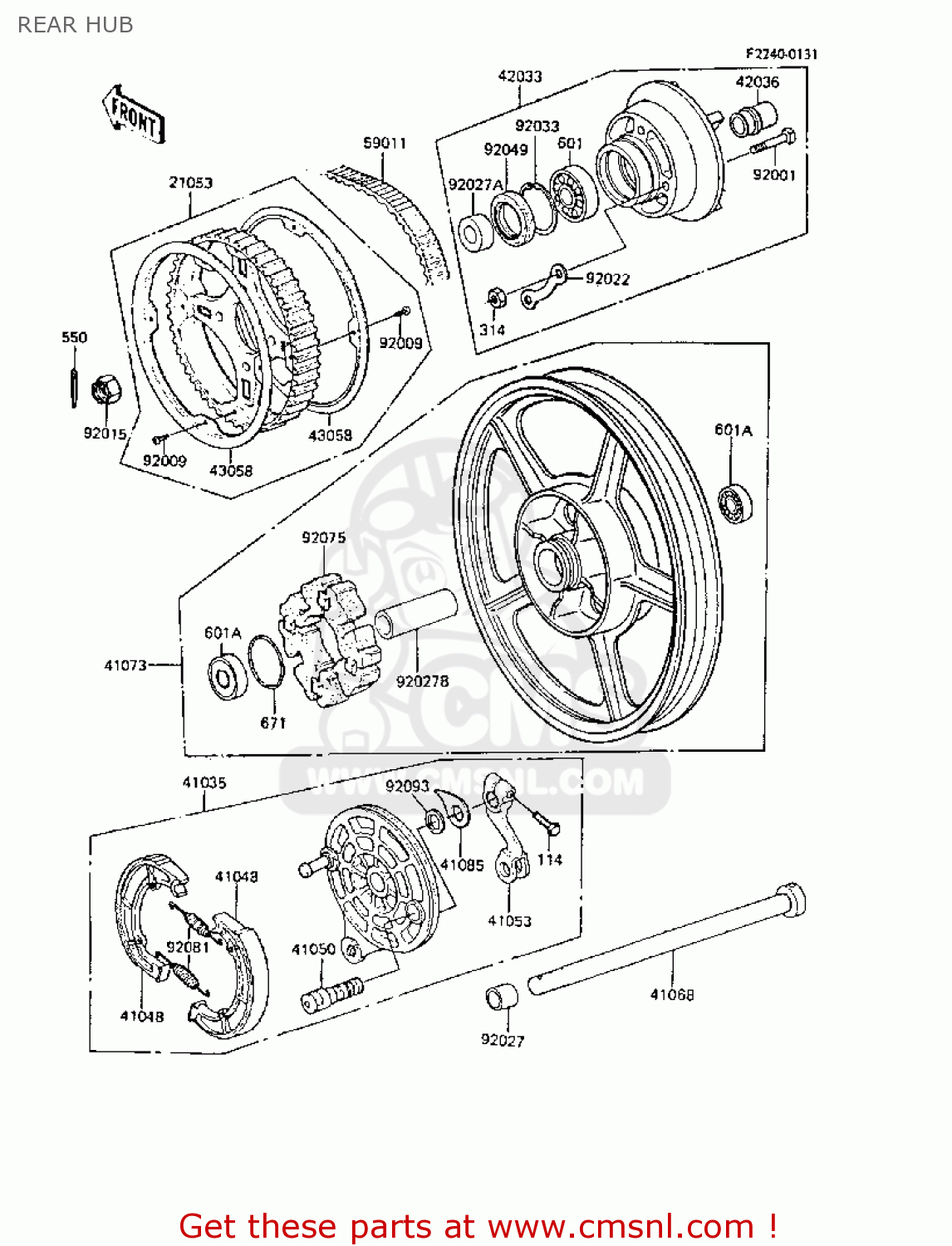

Rear hub diagram ER250B3 SCORPION 1988 UNITED KINGDOM

REAR HUB ER250B3 SCORPION 1988 UNITED KINGDOM
REAR HUB ER250B3 SCORPION 1988 UNITED KINGDOM
REAR HUB ER250B3 SCORPION 1988 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
314
314B1000
ref: 314
NUT,10MM
314B1000
€ 0.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205
ref: 601
BEARING-BALL,#6205C3
601B6205
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
671
671B2560
ref: 671
O RING,60MM
671B2560
€ 1.50
21053
210531015
ref: 21053
SPROCKET-ASSY,RR,55T
€ 209.50
41035
410351151
ref: 41035
PANEL-ASSY-BRAKE,RR,F
€ 279.50
41048
41048020
ref: 41048
SHOE,BRAKE (MCA)
41048020
€ 26.00
41050
410501001
ref: 41050
CAM-BRAKE
410501001
€ 24.00
41053
410531031
ref: 41053
LEVER-BRAKE CAM
410531031
€ 49.00
41068
410681122
ref: 41068
AXLE,RR
€ 45.00
41073
41073120421
ref: 41073
WHEEL-ASSY,RR,F.BLACK
€ 575.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
41085004
€ 10.00
42033
420331101
ref: 42033
COUPLING-ASSY,REAR HU
€ 161.00
42036
420361002
ref: 42036
SLEEVE,COUPLING
420361002
€ 27.50
43058
430581031
ref: 43058
RING,REAR SPROCKET
€ 34.00
59011
590111007
ref: 59011
BELT,DRIVE,127T,127U-
€ 296.00
92001
92003156
ref: 92001
BOLT,RR SPROCKET FIT
92003156
€ 6.50
92009
920091167
ref: 92009
SCREW,5X10
€ 4.50
92015
92015055
ref: 92015
NUT,16MM
92015055
€ 8.00
92022
92088005
ref: 92022
WASHER,SPROCKET LOCK
92088005
€ 4.00
92027
920271257
ref: 92027
COLLAR,17.2X30X24.5
920271257
€ 21.50
92027A
920271321
ref: 92027A
COLLAR,REAR AXLE,LH,L
920271321
€ 17.00
92027B
920271506
ref: 92027B
COLLAR,REAR WHEEL,L=6
€ 9.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
92052006
ref: 92049
OIL SEAL WTC35527
92052006
€ 6.50
92075
920751008
ref: 92075
DAMPER,REAR HUB SHOCK
920751008
€ 53.50
92081
42020004
ref: 92081
SPRING-BRAKE SHOE
42020004
€ 5.50
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
