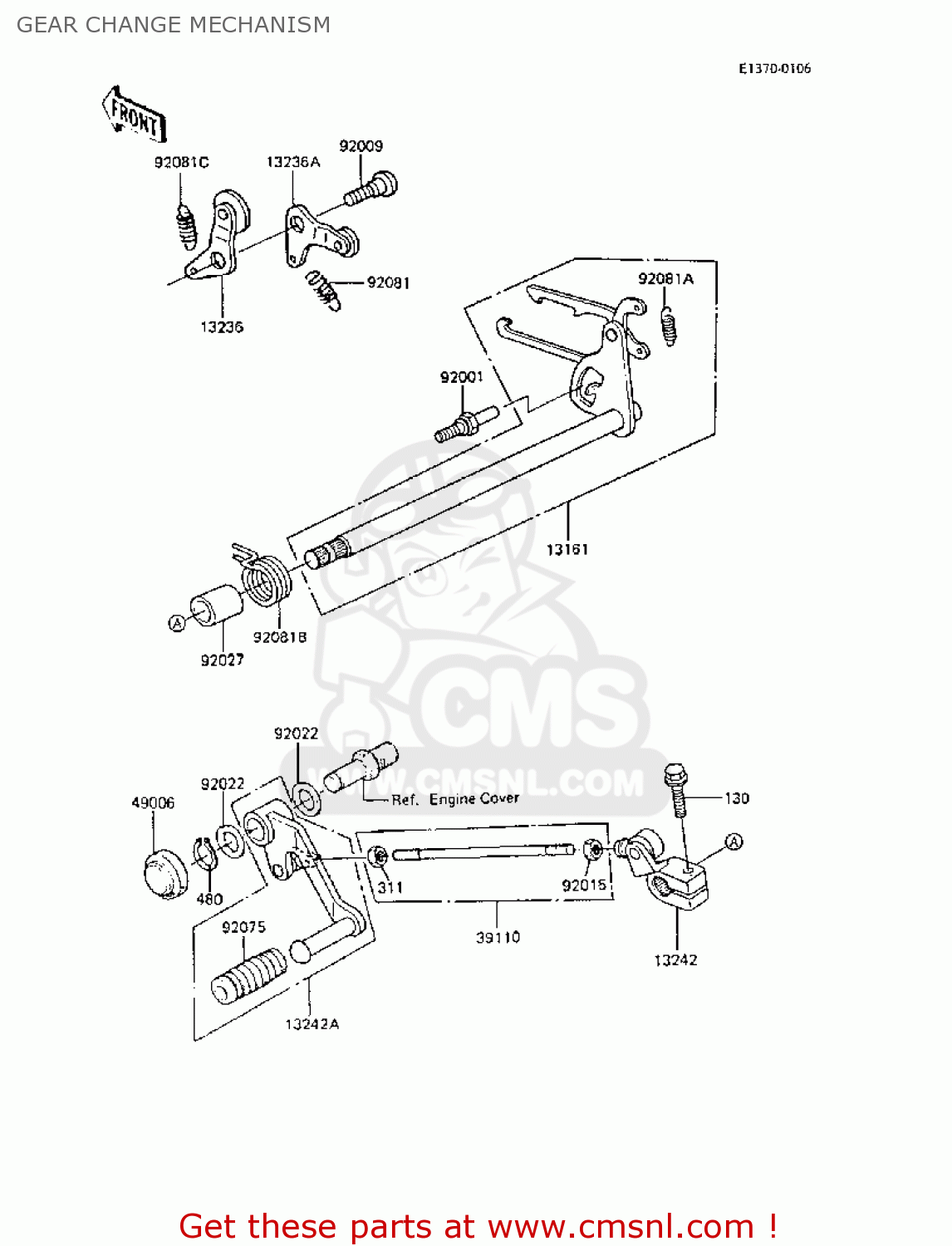

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311J0600
ref: 311

NUT-HEX

€ 1.00

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

13161

131611007
ref: 13161

LEVER-COMP-CHANGE SHA

€ 66.00

13236

132361037
ref: 13236

LEVER-COMP,GEAR POSIT

€ 9.00

13236A

132361038
ref: 13236A

LEVER-COMP,NEUTRAL PO

€ 9.00

13242

132421057
ref: 13242

LEVER-ASSY-CHANGE,ROD

€ 20.50

13242A

132421096
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 51.00

39110

391101014
ref: 39110

ROD-ASSY-TIE,CHANGE P

€ 6.00

49006

490061061
ref: 49006

BOOT,CHANGE LEVER

€ 6.00

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92009

92011023
ref: 92009

SCREW-PAN HEAD

€ 2.50

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221537
ref: 92022

WASHER,12.5X21X1.2,BL

€ 3.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92081

92081051
ref: 92081

SPRING-CHNG DRUM LEV

€ 2.50

92081A

92081076
ref: 92081A

SPRING-CHANG LEVER

€ 3.50

92081B

920811387
ref: 92081B

SPRING,RETURN

€ 6.50

92081C

92081156
ref: 92081C

SPRING,CHANGE LEVER

€ 4.00
