IGNITION SYSTEM

ER250B3 SCORPION 1988 UNITED KINGDOM

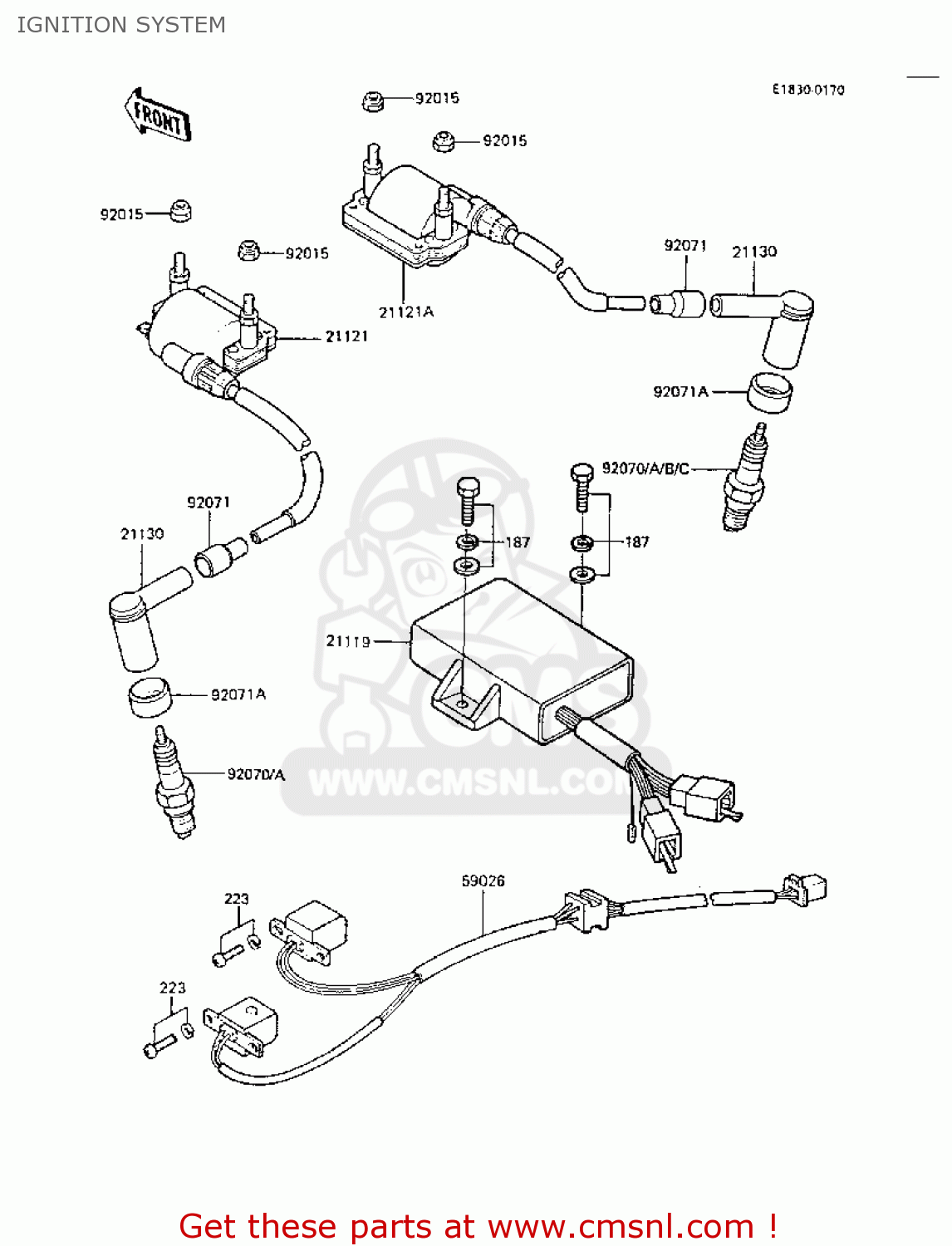

Ignition system diagram ER250B3 SCORPION 1988 UNITED KINGDOM

IGNITION SYSTEM ER250B3 SCORPION 1988 UNITED KINGDOM
IGNITION SYSTEM ER250B3 SCORPION 1988 UNITED KINGDOM
IGNITION SYSTEM ER250B3 SCORPION 1988 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
187
187B0618
ref: 187
BOLT-UPSET-WSP
€ 0.50
223
223B0514
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
21119
211191227
ref: 21119
IGNITER
211191227
€ 244.50
21121
211211071
ref: 21121
COIL-IGNITION,LH
211211071
€ 89.00
21121A
211211072
ref: 21121A
COIL-IGNITION,RH
211211072
€ 97.50
21130
211301003
ref: 21130
CAP,SPARK PLUG"LD05F"
211301003
€ 20.00
59026
590261021
ref: 59026
COIL-PULSING
€ 75.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92070
920701065
ref: 92070
DPR8EA-9 (NGK SPARKPL
920701065
€ 4.00
92070A
920701068
ref: 92070A
DPR9EA-9 (NGK SPARKPL
920701068
€ 4.00
92070B

ref: 92070B
92070C

ref: 92070C
92071
21132005
ref: 92071
GROMMET,SPARK PLUG CP
21132005
€ 2.50
92071A
920711015
ref: 92071A
GROMMET,SPARK PLUG CA
920711015
€ 2.50
