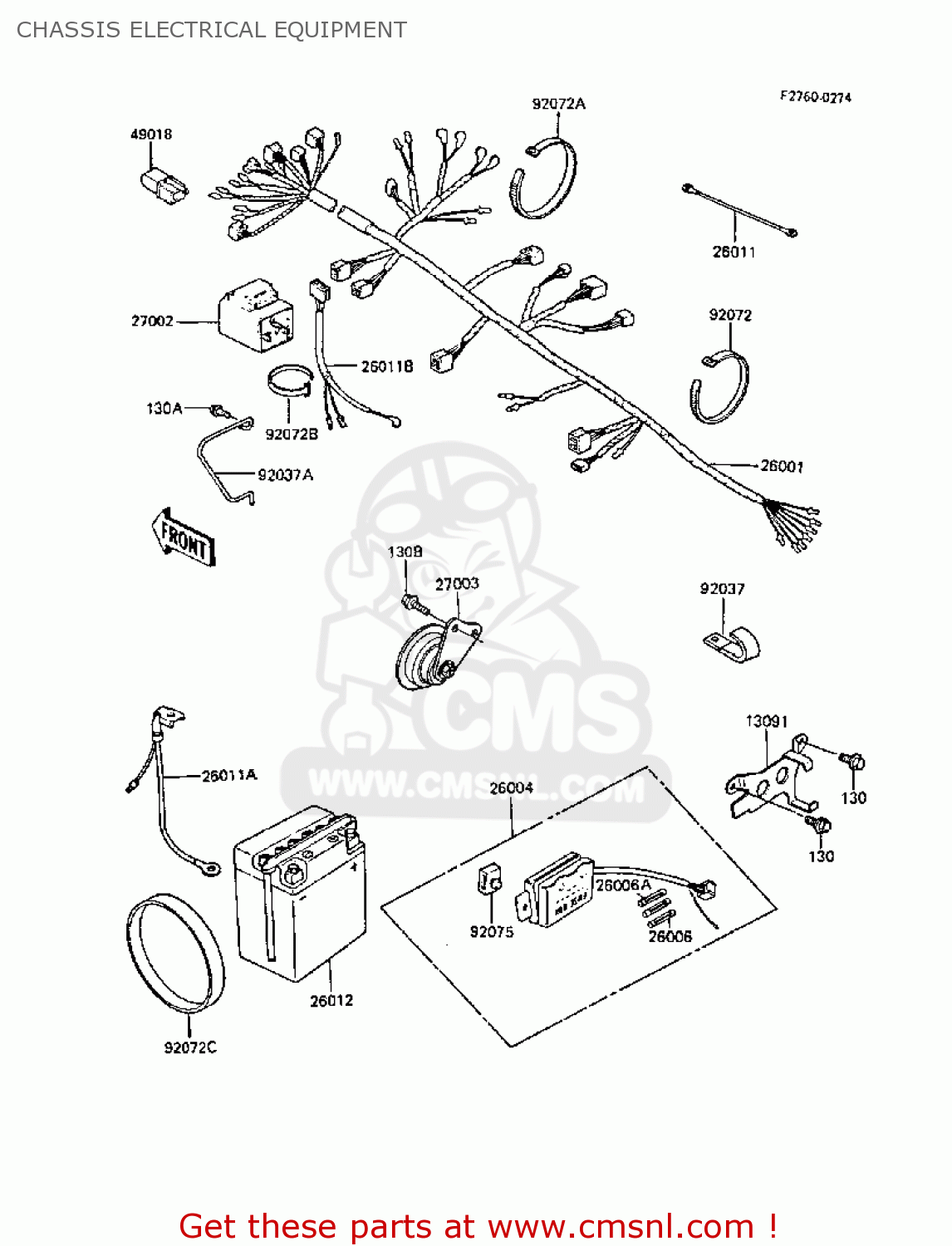

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0612
ref: 130A

BOLT-FLANGED,6X12

€ 1.50

130B

130D0614
ref: 130B

BOLT-FLANGED,6X14

€ 0.50

13091

130911252
ref: 13091

HOLDER,FUSE BOX

€ 10.50

26001

260011594
ref: 26001

HARNESS,MAIN

€ 176.50

26004

260041051
ref: 26004

FUSE-ASSY

€ 39.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

260111034
ref: 26011

WIRE-LEAD,CRANKCASE G

€ 4.50

26011A

260111252
ref: 26011A

WIRE-LEAD,BATTERY GRO

€ 10.50

26011B

260111268
ref: 26011B

WIRE-LEAD,SIDE STAND

€ 12.50

26012

260121106
ref: 26012

BATTERY

€ 60.00

27002

270021053
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031060
ref: 27003

HORN

€ 46.50

49018

490181052
ref: 49018

DIODE

€ 35.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371451
ref: 92037A

CLAMP,HARNESS&CLUTCH

€ 6.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072032
ref: 92072A

BAND,LONG

€ 3.00

92072B

92072067
ref: 92072B

BAND,L=95

€ 2.50

92072C

920721020
ref: 92072C

BAND,BATTERY

€ 7.00

92075

92075279
ref: 92075

DAMPER,FUSE

€ 3.50
