CYLINDER/PISTON(S)

ER250B3 SCORPION 1988 UNITED KINGDOM

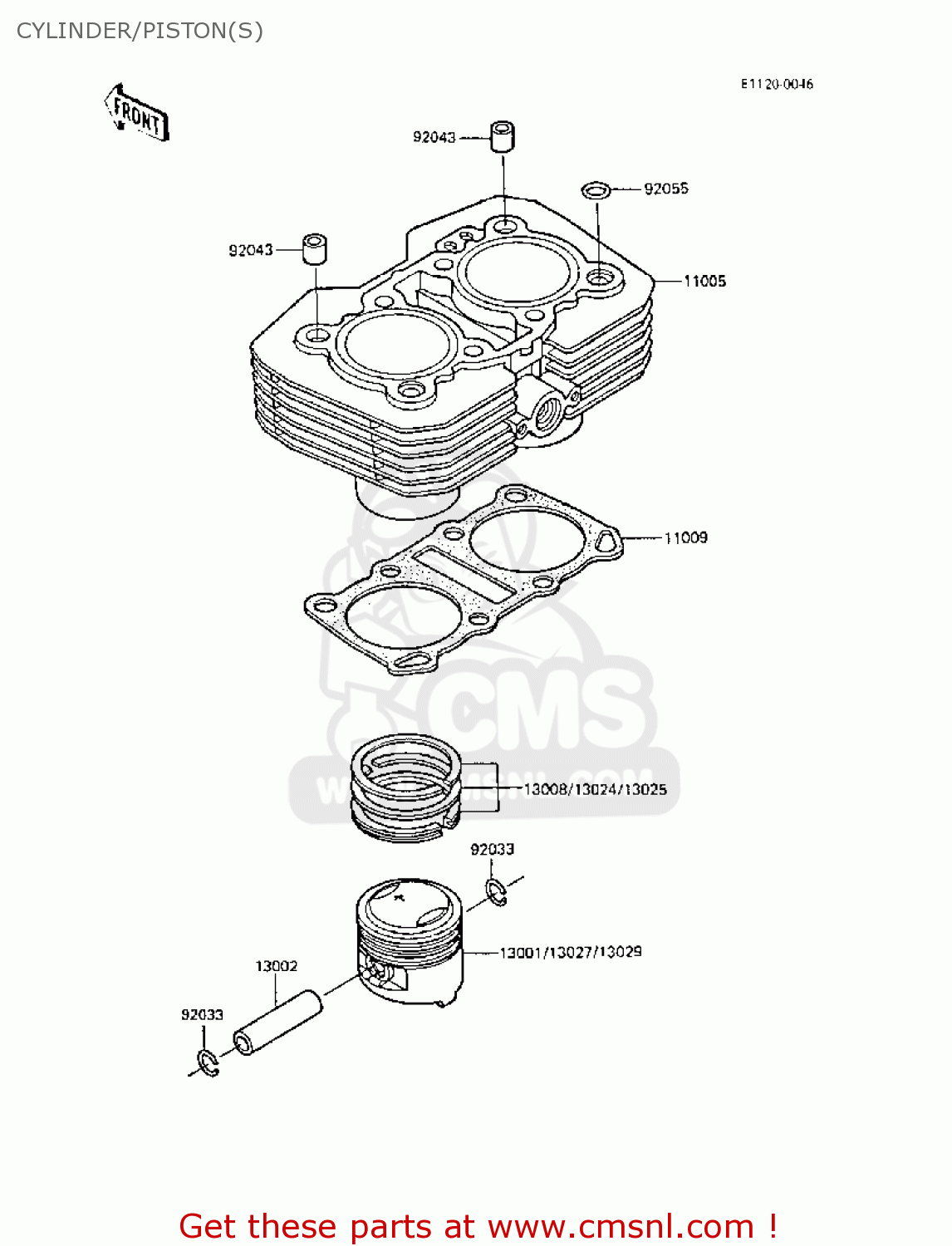

Cylinder/piston(s) diagram ER250B3 SCORPION 1988 UNITED KINGDOM

prices are in EUR

ref

part #

description

quantity

11005

110051224
ref: 11005

CYLINDER-ENGINE,F.BLA

€ 414.00

11009

110091217
ref: 11009

GASKET,CYLINDER (MCA)

€ 6.50

13001

130011109
ref: 13001

PISTON-ENGINE,STD

€ 51.50

13002

130021051
ref: 13002

PIN-PISTON

€ 17.00

13008

130081051
ref: 13008

RING-SET-PISTON,STD

€ 51.00

13024

130241051
ref: 13024

RING-SET-PISTON LL,O/

€ 15.00

13025

130251051
ref: 13025

RING-SET-PISTON L,O/S

€ 40.00

13027

130271051
ref: 13027

PISTON-ENGINE LL,O/S

€ 42.50

13029

130291052
ref: 13029

PISTON-ENGINE L,O/S 0

€ 64.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92043

920431265
ref: 92043

PIN,9.2X12X14

€ 4.50

92055

920551150
ref: 92055

O-RING, 10MM

€ 5.50
