CARBURETOR PARTS
ER250B3 SCORPION 1988 UNITED KINGDOM

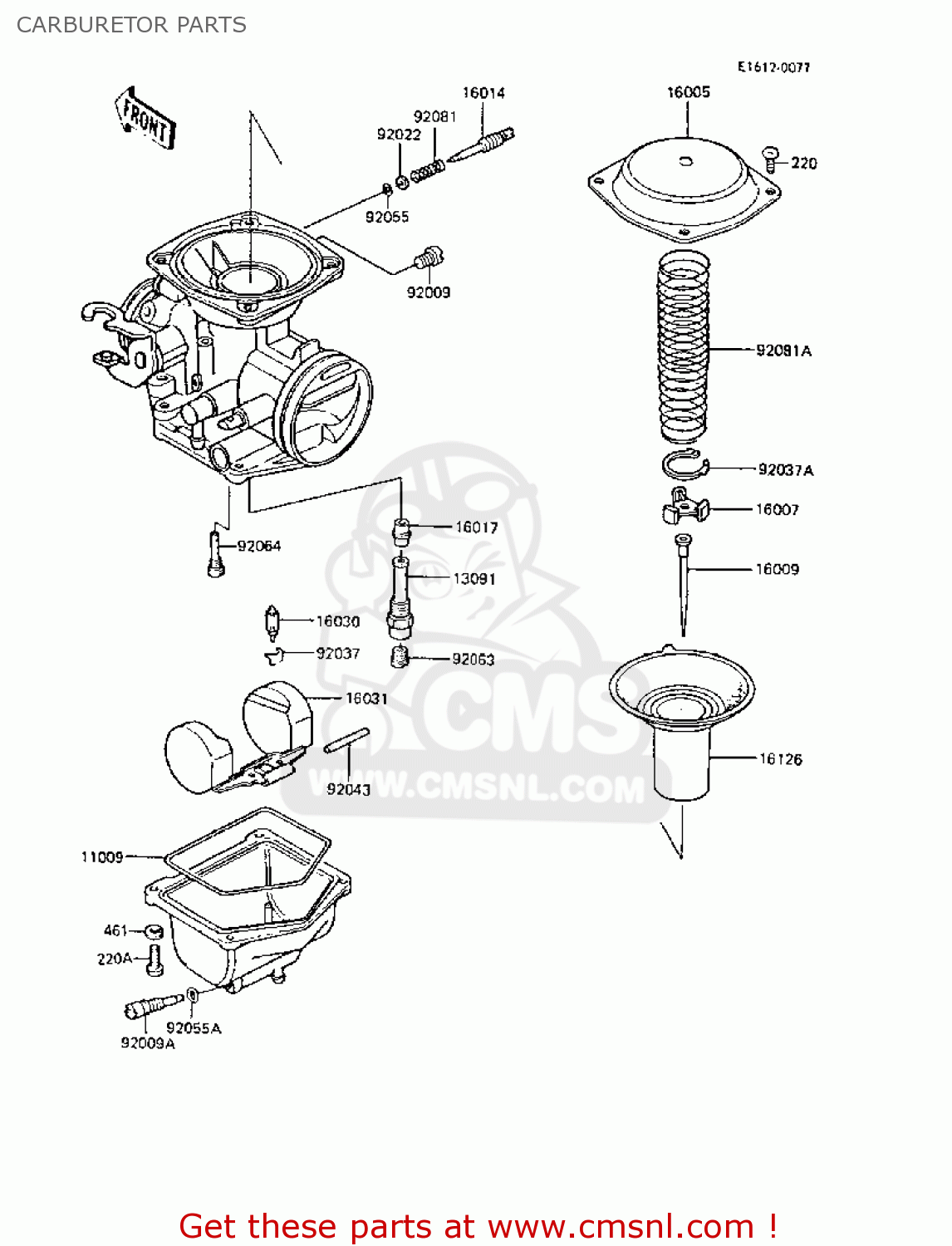

Carburetor parts diagram ER250B3 SCORPION 1988 UNITED KINGDOM
CARBURETOR PARTS ER250B3 SCORPION 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0412
ref: 220A
SCREW-PAN CROS 4X12
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
11009
16019024
ref: 11009
O RING,FLOAT CHAMBER
€ 15.00
13091
130911192
ref: 13091
HOLDER,NEEDLE JET
€ 15.50
16005
160051001
ref: 16005
TOP-CHAMBER,MIXING
€ 23.50
16007
160071001
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091201
ref: 16009
NEEDLE-JET,#N05H
€ 17.50
16014
160141029
ref: 16014
SCREW-PILOT AIR
€ 13.50
16017
160171139
ref: 16017
JET-NEEDLE,#6
€ 33.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311023
ref: 16031
FLOAT
€ 31.00
16126
161261101
ref: 16126
VALVE,VACUUM
€ 122.00
92009
920091004
ref: 92009
SCREW, PLUG
€ 5.50
92009A
920091095
ref: 92009A
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92037A
920371005
ref: 92037A
CLAMP
€ 5.50
92043
920431002
ref: 92043
PIN,FLOAT
€ 3.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92063
920631004
ref: 92063
JET-MAIN,#92
€ 10.00
92064
920641001
ref: 92064
JET-PILOT,#35
€ 14.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811601
ref: 92081A
SPRING
€ 11.50
