Genuine ER Kawasaki Parts delivered quickly!


CYLINDER HEAD

ER250B3 SCORPION 1988 UNITED KINGDOM

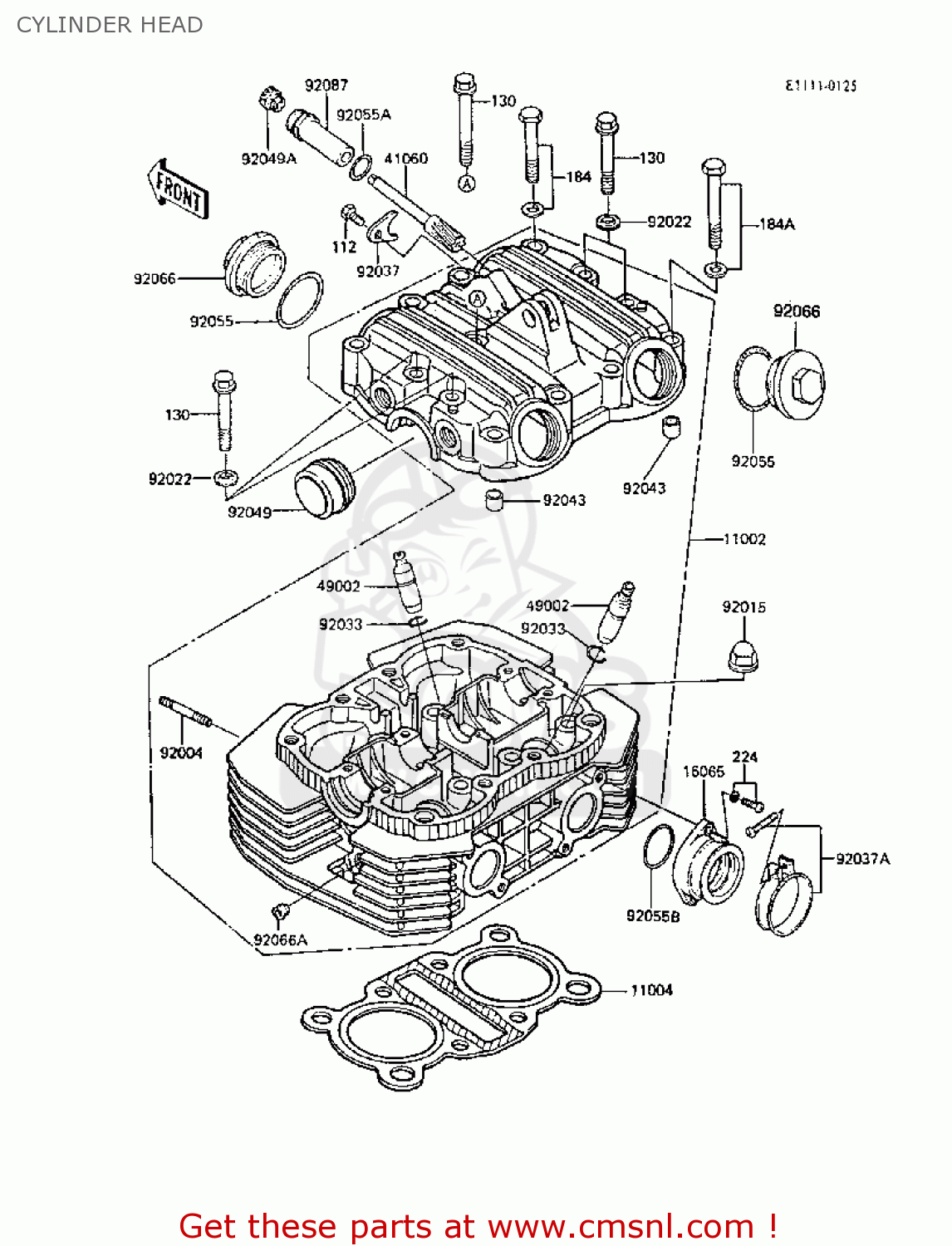

Cylinder head diagram ER250B3 SCORPION 1988 UNITED KINGDOM

CYLINDER HEAD ER250B3 SCORPION 1988 UNITED KINGDOM
CYLINDER HEAD ER250B3 SCORPION 1988 UNITED KINGDOM
CYLINDER HEAD ER250B3 SCORPION 1988 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
112
112C0614
ref: 112
BOLT,6X14,BLACK
112C0614
€ 3.00
130
130J0650
ref: 130
BOLT-FLANGED,6X50,BLA
€ 2.50
184
184J0850
ref: 184
BOLT-UPSET-WP-SMALL,8
€ 3.00
184A
184J0860
ref: 184A
BOLT-UPSET-WP-SMALL,8
184J0860
€ 3.00
224
224C0618
ref: 224
SCREW-PAN-WP-CROS,6X1
€ 2.00
11002
110021170
ref: 11002
HEAD-ASSY-CYLINDER,F.
€ 1,294.00
11004
110041009
ref: 11004
GASKET,HEAD (MCA)
110041009
€ 28.00
16065
160651069
ref: 16065
HOLDER-CARBURETOR
160651069
€ 30.00
41060
410601020
ref: 41060
GEAR-METER,SCREW
410601020
€ 16.00
49002
490021021
ref: 49002
GUIDE-VALVE
490021021
€ 25.50
92004
920041121
ref: 92004
STUD,8X30
920041121
€ 3.50
92015
920151151
ref: 92015
NUT,CAP,8MM
920151151
€ 3.00
92022
920221461
ref: 92022
WASHER,SEAL,6.3X13X1.
920221461
€ 1.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92037
920371030
ref: 92037
CLAMP,METER GEAR
920371030
€ 2.00
92037A
920371304
ref: 92037A
CLAMP,ID=53,BLACK
920371304
€ 7.00
92043
920431265
ref: 92043
PIN,9.2X12X14
920431265
€ 4.50
92049
920491152
ref: 92049
SEAL-OIL,PLUG
920491152
€ 8.50
92049A
92050075
ref: 92049A
OIL SEAL,TACHOMETER
92050075
€ 7.50
92055
920551005
ref: 92055
RING-O,35.8X3.0
920551005
€ 3.50
92055A
920551021
ref: 92055A
RING-O,13X1.9
920551021
€ 4.50
92055B
920551155
ref: 92055B
RING-O,33.2MM
920551155
€ 10.00
92066
920661151
ref: 92066
PLUG,M36X1.5
920661151
€ 9.50
92066A
920661173
ref: 92066A
PLUG,PT1/8X7
920661173
€ 3.50
92087
920871001
ref: 92087
BUSHING-METER GEAR
920871001
€ 18.00
