STAND

ER250B2 SCORPION 1984 USA

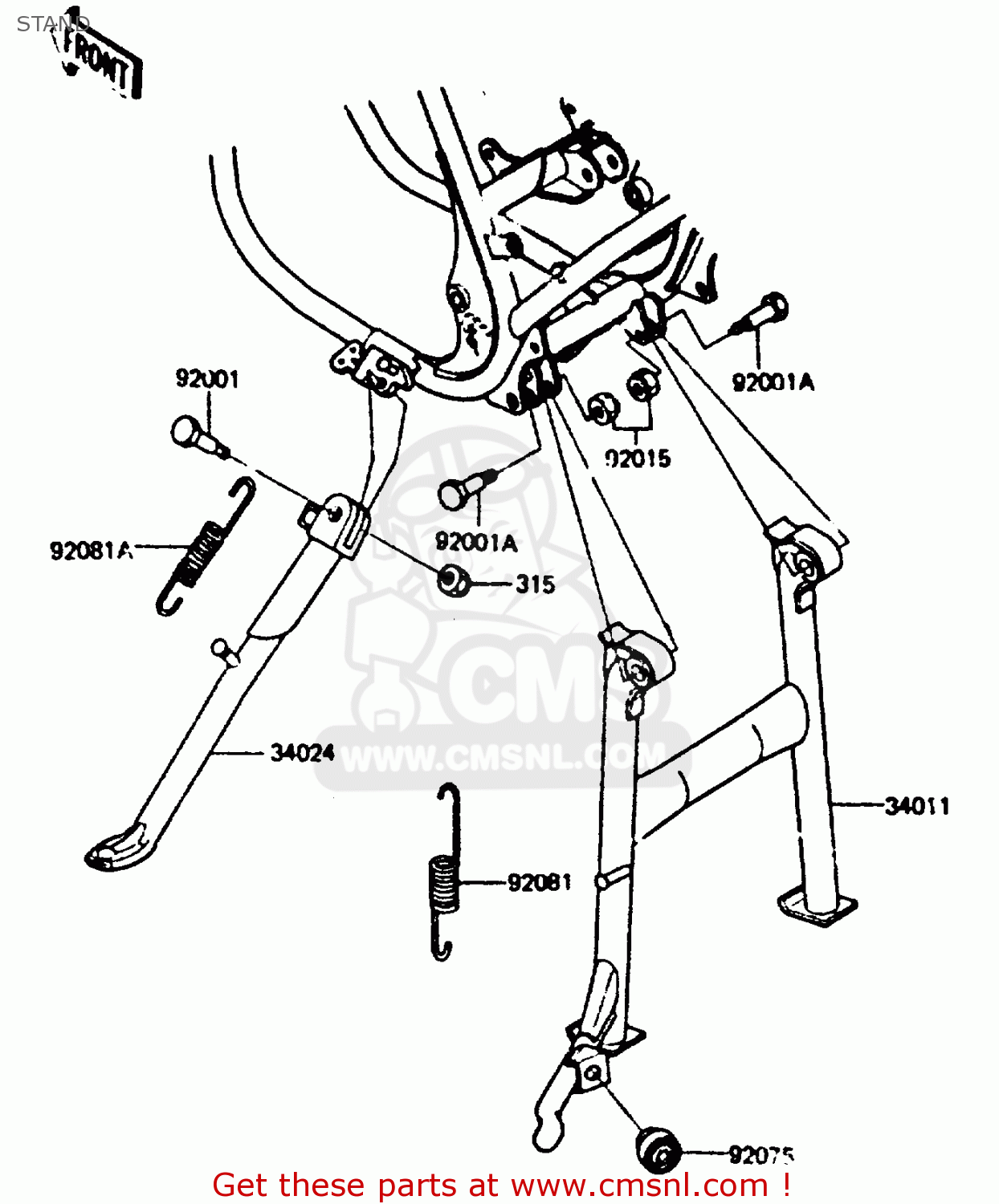

Stand diagram ER250B2 SCORPION 1984 USA

STAND ER250B2 SCORPION 1984 USA

STAND ER250B2 SCORPION 1984 USA

prices are in EUR

ref

part #

description

quantity

34011

340111075
ref: 34011

STAND-CENTER

€ 99.00

34024

340241154
ref: 34024

STAND-SIDE

€ 48.50

92001

920011788
ref: 92001

BOLT,SIDE STAND

€ 6.50

92001A

920011802
ref: 92001A

BOLT

€ 5.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

92081

34023016
ref: 92081

SPRING,MAIN STAND

€ 11.00

92081A

920811727
ref: 92081A

SPRING,SIDE STAND

€ 7.00

315

315C1000
ref: 315

315C1000
